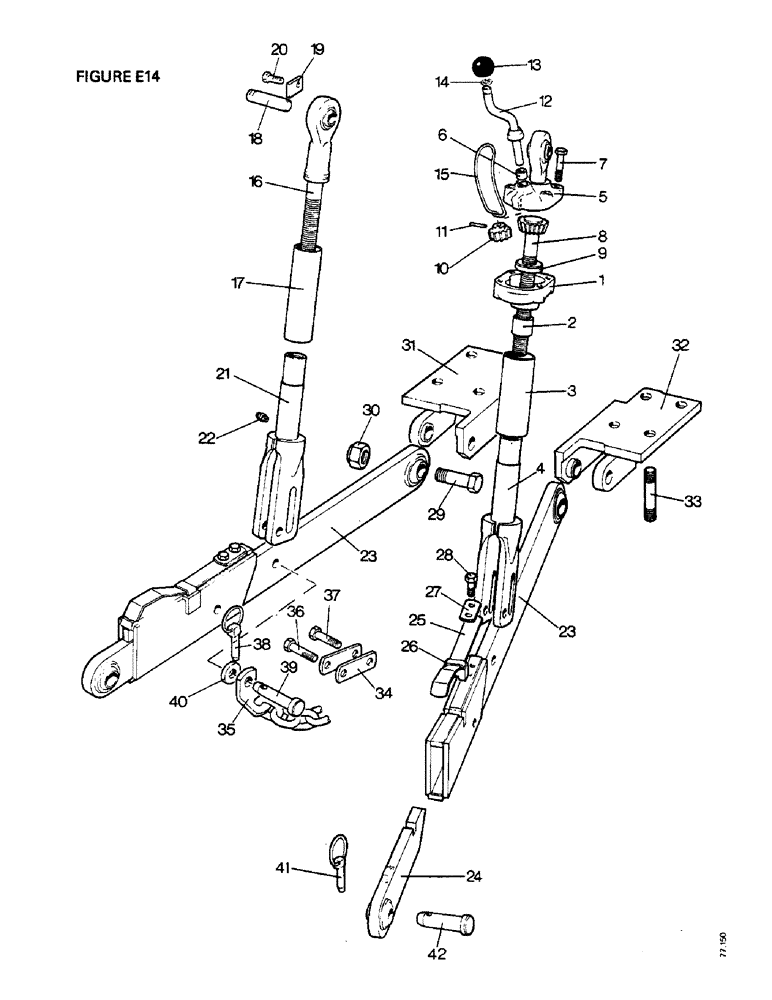

Запчасти Case IH 1410 (E14-1) - SELECTAMATIC HYDRAULIC SYSTEM, LIFT RODS & LOWER LINKS,TRACS. W/O CAB [A]1410,1412,1412G [B]1410 4WD (07) - HYDRAULIC SYSTEM

K944771

LEVER

LEVELLING LEVER, complete, Includes: Ref. 1 - 15

1шт.

1410, 1412, 1412G

1шт.

K954420

LEVER

LEVELLING LEVER, extended, complete, Includes: Ref. 1 - 15

1шт.

1410 4WD

1шт.

1

K964964

HOUSING

GEAR HOUSING, Includes: Ref. 2 and 3

1шт.

2

K621302

BUSHING

BUSH

1шт.

3

K940510

TUBE,1.75" ID x 6.187" L

1 3/4 x 6 1/4 in

1шт.

4a

K947284

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 14 1/4 in, slotted

1шт.

1410, 1412, 1412G

1шт.

4b

K954422

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 17 3/4 in, slotted

1шт.

1410 4WD

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

5

K964963

CAP

Includes: Ref. 6

1шт.

6

K621340

BUSHING

BUSH

2шт.

K32063

PIN

DOWEL, 3/16 x 1/2 in (cap to gear housing)

2шт.

7

K600606

BOLT

7/16 UNC x 2 in (cap to gear housing)

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in (cap to gear housing)

4шт.

8

K948664

GEAR

LEVELLING SCREW, 1 1/8 Whitworth x 10 5/16 in

1шт.

9

K620193

THRUST BEARING

1шт.

10

K919769

GEAR

BEVEL PINION

1шт.

11

K623741

SPRING

PIN, 5/32 x 3/4 in

1шт.

12

K919761

LEVER

HAND LEVER, complete, Includes: Ref. 13 and 14

1шт.

13

K919763

BUTTON

KNOB

1шт.

14

K623790

CORE

CIRCLIP, 1/2 in internal

1шт.

15

K944779

SPRING

LATCH

1шт.

16

K948366

PIN

PIVOT PIN

2шт.

17

K948367

PLATE

pin

2шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

K944785

ROD

LIFT ROD, complete

1шт.

1410, 1412, 1412G

1шт.

K954421

ROD

LIFT ROD, extended, complete, Includes: Ref. 19 - 22

1шт.

1410 4WD

1шт.

19

K964965

SCREW

ADJUSTING SCREW, 1 1/8 Whitworth R.H. x 13 13/16

1шт.

20

K940509

TUBE,1.75" DIA x 7.125" L

1 3/8 x 7 1/8 in

1шт.

21a

K947284

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 14 1/4 in, slotted

1шт.

1410, 1412, 1412G

1шт.

21b

K954422

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 17 3/4 in, slotted

1шт.

1410 4WD

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K945402

LINK

LOWER LINK, telescopic, Includes: Ref. 23 - 28

2шт.

23

K945403

LINK

front

1шт.

24

K945410

LINK

rear

1шт.

25

K924476

SPRING

LATCH, spring

1шт.

26

K945413

LATCH

1шт.

27

K948166

SPRING

PLATE

2шт.

28

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

29

K612065

BOLT

1 1/8 UNF x 5 in, replaces K948798

2шт.

30

K617595

LOCK NUT

CLEVELOC NUT, 1 1/8 UNF

2шт.

31a

K944764

BRACKET

HITCH BRACKET, left-hand

1шт.

1410, 1412, 1412G

1шт.

31b

K953172

BRACKET

HITCH BRACKET, left-hand

1шт.

1410 4WD

1шт.

32a

K944766

HITCH ASSY

HITCH BRACKET, right-hand

1шт.

1410, 1412, 1412G

1шт.

32b

K953173

HITCH ASSY

HITCH BRACKET, right-hand

1шт.

1410 4WD

1шт.

33

K608703

STUD

3/4 UNF x 4 in

8шт.

K617176

NUT

3/4 UNF

8шт.

34

K954435

STAY

CROSS STAY

1шт.

1410 4WD

1шт.

K616989

NUT

1 in UNF

4шт.

1410 4WD

1шт.

K944823

CHAIN (AG)

CHECK CHAIN ASSEMBLY, Includes: Ref. 35 - 37

2шт.

35

K924022

PLATE

check chain

2шт.

36

K944789

CHAIN (AG)

CHECK CHAIN AND PLATE

1шт.

37

K600804

BOLT

1/4 UNC x 1 3/4 in

3шт.

K607462

NUT

CLEVELOC NUT, 1/2 UNC

3шт.

38

K915678

PIN

LINCH PIN AND RING

2шт.

39

K944788

PIN

LINK PIN, check chain

2шт.

40

K948365

COLLAR

linch pin

2шт.

41

K920359

PIN

LINCH PIN AND RING, implements

2шт.

42

K948798

LINK

PIN

2шт.
