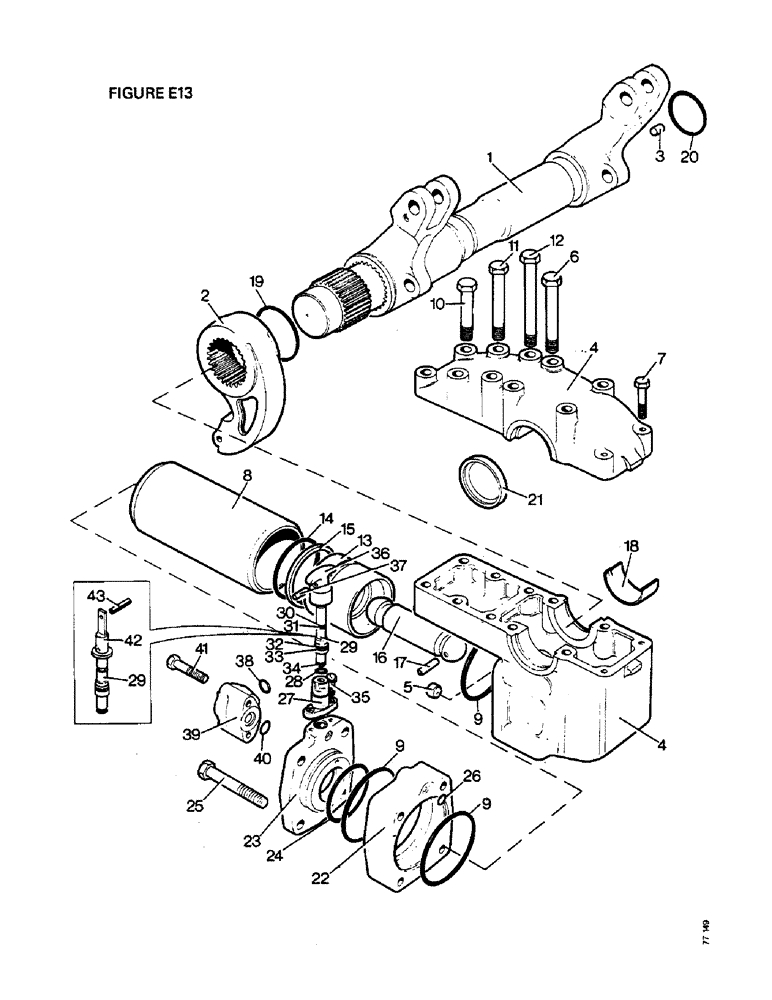

Запчасти Case IH 1410 (E13-1) - SELECTAMATIC HYDRAULIC SYSTEM, RAMSHAFT & RAM CYL., [A]1410Q,1410SK,1412Q,1412SK[B]1410, 1412, 1412G (07) - HYDRAULIC SYSTEM

1

K964691

SHAFT

RAMSHAFT AND LEVERS, replaces K928232, Includes: Ref. 2 and 3

1шт.

2

K926691

ARM

RAM LEVER

1шт.

3

K621807

PIN

DOWEL, 5/16 x 1/2 in

1шт.

4

K964866

HOUSING

BRACKET AND CAP ASSEMBLY, left-hand, Includes: Ref. 5 - 7

1шт.

5

K924685

RUBBER

RESTRICTOR, ramshaft bracket

1шт.

6

K601219

BOLT

5/8 UNC x 4 3/4 in, Serial Range: (cap-bracket)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in, Serial Range: (cap-bracket)

4шт.

7

K600409

BOLT

3/8 UNC x 2 1/8 in, Serial Range: (cap-bracket)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (cap-bracket)

2шт.

8

K926690

CYLINDER

SLEEVE

1шт.

9

K623685

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

'O' RING, 4 3/4 in internal diameter, cylinder to axle case

3шт.

10

K601217

BOLT

5/8 UNC x 4 1/4 in (bracket and, Serial Range: cap-axle)

2шт.

11

K601221

BOLT

5/8 UNC x 5 1/4 in (bracket and, Serial Range: cap-axle)

2шт.

12

K601225

BOLT

5/8 UNC x 6 1/4 in (bracket and, Serial Range: cap-axle)

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in (bracket and, Serial Range: cap-axle)

6шт.

13

K926698

PISTON

AND INSERT

1шт.

14

K623682

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

-342, 90 Duro, 3.600" ID x .210" Thk, Piston

1шт.

15

K623683

RING

ANTI-EXTRUSION RING

1шт.

16

K928196

ROD

CONNECTING ROD

1шт.

17

K623923

SPRING

PIN, 1/4 x 2 1/4 in

1шт.

18

K928272

BEARING

HALVES

4шт.

19

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in diameter, ramshaft left-hand

1шт.

20

K623579

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

'O' RING, 2 3/4 in diameter, ramshaft right-hand

1шт.

21

K928433

DISC

SEALING DISC

1шт.

22

K944540

SUPPORT

HOUSING, cylinder body

1шт.

23

K944534

COVER

END COVER, ram cylinder

1шт.

24

K623684

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

-240, 90 Duro, 3.734" ID x .139" Thk, End cover to cylinder

1шт.

25

K601280

BOLT

5/8 UNC x 13 1/8 in (end, Serial Range: cover-axle)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in (end, Serial Range: cover-axle)

4шт.

26

K623687

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

'O' RING, 5/8 in diameter (end cover to axle)

4шт.

K964867

VALVE

DUMP VALVE ASSEMBLY, Includes: Ref. 27 - 35

1шт.

27

K944535

VALVE

BODY, dump valve

1шт.

28

K623647

O-RING,0.739" ID x 0.879" OD x 0.7"

-018, 70 Duro, .739" ID x .070" Thk

1шт.

29

K944536

PLUNGER

1шт.

30

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

ANTI-EXTRUSION RING, 3/8 in diameter

1шт.

31

K625400

O-RING,0.07" Thk x 0.239" ID

'O' RING, 1/4 in diameter

1шт.

32

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' RING, 7/16 in diameter

1шт.

33

K628059

RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk

ANTI-EXTRUSION RING, 5/8 in diameter

1шт.

34

K625400

O-RING,0.07" Thk x 0.239" ID

'O' RING, 1/4 in diameter

1шт.

35

K606552

SCREW

CAP SCREW, 5/16 UNC x 3/4 in

2шт.

K964568

SEAL

SEAL PACK DUMP VALVE

1шт.

36

K944537

KNOB

1шт.

1410, 1412, 1412G

1шт.

37

K11811

PIN

1/8 x 7/8 in

1шт.

1410, 1412, 1412G

1шт.

38

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in diameter, pipe to connector or 3-way valve

1шт.

39

K955073

CONNECTOR, ELEC

CONNECTOR, pipe to cylinder, replaces K919243 (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11201692

1шт.

1410, 1412, 1412G

1шт.

K19591

PLUG

1/8 BSP (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11201692

1шт.

1410, 1412, 1412G

1шт.

K24650

WASHER, 3/8 in (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11201692

1шт.

1410, 1412, 1412G

1шт.

40

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in diameter (connector to cylinder)

1шт.

1410, 1412, 1412G

1шт.

41

K600414

BOLT

3/8 UNC x 2 3/4 in, Serial Range: (connector-cylinder)

2шт.

1410, 1412, 1412G

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (connector-cylinder)

2шт.

1410, 1412, 1412G

1шт.

42

K951939

VALVE

EXTENSION, valve

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

43

K623933

SPRING

PIN, 1/8 x 5/8 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.
