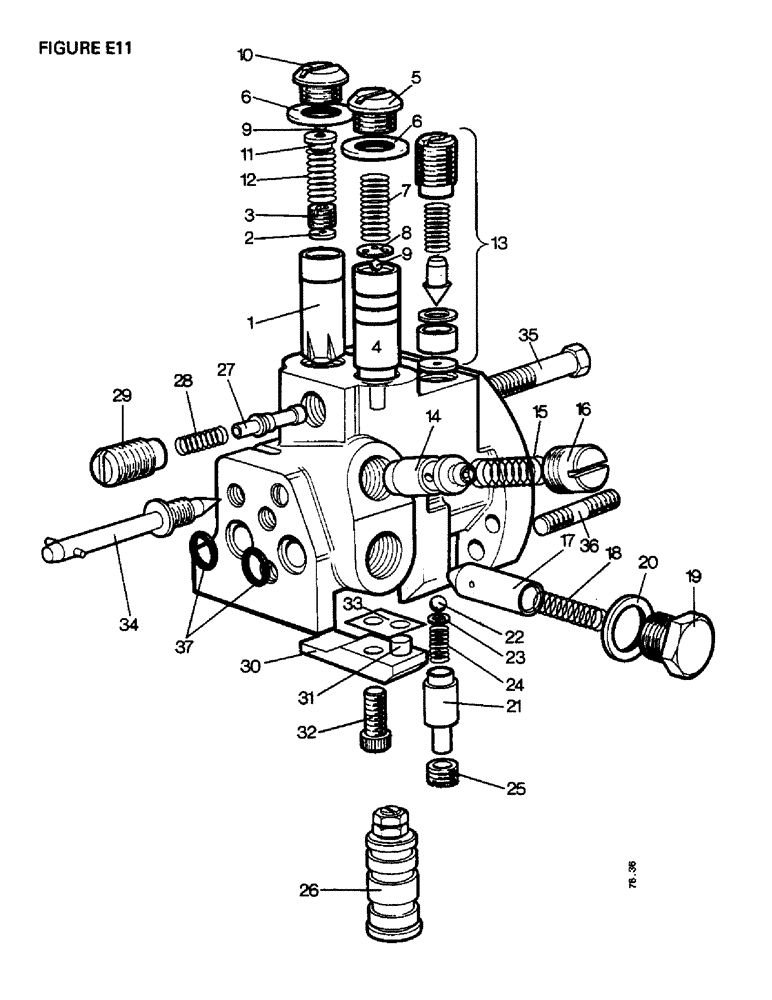

Запчасти Case IH 1410 (E11-1) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL VALVE, 1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK (07) - HYDRAULIC SYSTEM

K944585

VALVE

CONTROL VALVE ASSEMBLY, complete, Includes: Ref. 2 - 29

1шт.

1

PLUNGER, by-pass valve, not supplied separately

1шт.

2

K948380

PLATE

RESTRICTOR WASHER

1шт.

3

K943901

PLUG

3/8 UNF, special

1шт.

4

PLUNGER, hold valve, not supplied separately

1шт.

5

K913242

PLUG

5/8 UNF special (hold valve plunger)

1шт.

6

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ING WASHER, 5/8 in (hold valve plunger)

1шт.

7

K24832

SPRING

(hold valve plunger)

1шт.

8

K920136

SHIM

RETAINER, ball (hold valve plunger)

1шт.

9

K11548

BALL

STEEL BALL, 1/8 in (hold valve plunger)

1шт.

10

K948067

PLUG

5/8 UNF special (by-pass valve plunger)

1шт.

6

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ING WASHER, 5/8 in (by-pass valve plunger)

1шт.

9

K11548

BALL

STEEL BALL, 1/8 in (by-pass valve plunger)

1шт.

11

K947977

RETAINER

ball (by-pass valve plunger)

1шт.

12

K24832

SPRING

(by-pass valve plunger)

1шт.

13

K961794

VALVE

RELIEF VALVE, pre-set assembly

1шт.

14

K944592

SPOOL

rate of lowering valve

1шт.

15

K625108

SPRING

rate of lowering valve

1шт.

16

K909397

SPRING

PLUG, 3/8 BSP, special

1шт.

17

K916395

PLUNGER

non-return valve

1шт.

18

K625167

SPRING

non-return valve

1шт.

19

K916397

PLUG

3/4 UNF, special

1шт.

20

K623530

SEAL

ING WASHER, 3/4 in

1шт.

21

PLUNGER, TCU valve, not supplied separately

1шт.

22

K17063

BALL

STEEL BALL, 1/4 in

1шт.

23

K626843

WASHER

1/8 in, special

1шт.

24

K625190

SPRING

TCU valve

1шт.

25

K909398

CAP

FERRULE, 1/4 BSP

1шт.

26

SPOOL VALVE, not supplied separately

1шт.

27

PLUNGER, latching valve, not supplied separately

1шт.

28

K625180

SPRING

latching valve

1шт.

29

K913971

PLUG

9/16 UNF, special

1шт.

30

K912464

WASHER

ABUTMENT PLATE

1шт.

31

K24853

PIN

DOWEL, 1/4 x 11/16 in (abutment plate to valve body)

1шт.

32

K606803

SCREW

WEDGLOCK SCREW, 1/4 UNC (abutment plate to valve body)

1шт.

33

K912465

SHIM,.003" Thk

Abutment plate to valve body .003" Thk

1шт.

K912466

SHIM,.007" Thk

Abutment plate to valve body .007" Thk

1шт.

K912467

SHIM,.015" Thk

(Abutment plate to valve body) .015" Thk

1шт.

34

K944593

NEEDLE

VALVE (abutment plate to valve body)

1шт.

35

K600211

BOLT

5/16 UNC x 2 1/4 in (valve to ramshaft bracket)

2шт.

36

K608143

STUD

5/16 UNC x 1 1/2 in (valve to ramshaft bracket)

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (valve to ramshaft bracket)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (valve to ramshaft bracket)

3шт.

37

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' RING, 7/16 in internal diameter (valve to ramshaft bracket)

2шт.

K962813

GASKET

SEAL KIT, control valve

1шт.
