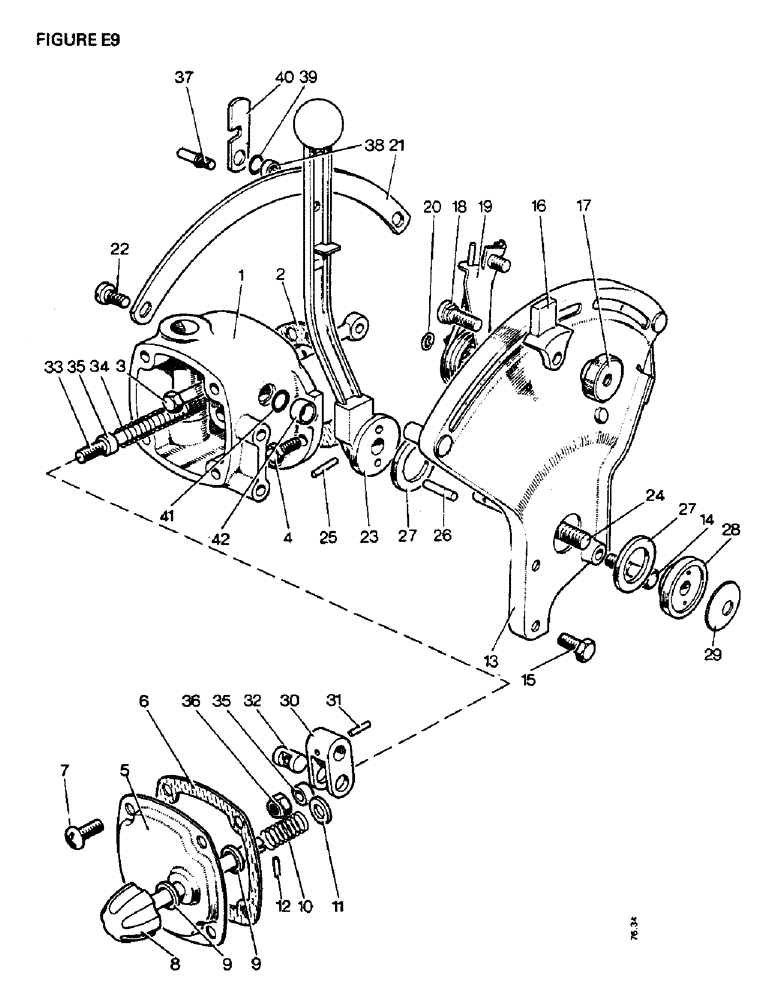

Запчасти Case IH 1410 (E09-1) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL LEVER AND QUADRANT 1410, 1412, 1412G (07) - HYDRAULIC SYSTEM

1

K929786

HOUSING

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Housing 1/4"-28 NPT x .54" lg

1шт.

2

K903026

GASKET

(housing to axle case)

1шт.

3

K600217

BOLT

5/16 UNC x 3 in (housing to axle case)

2шт.

4

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SETSCREW, 5/16 UNC x 1 in (housing to axle case) Replaces K602805

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (housing to axle case)

3шт.

5

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

COVER, (Replaces K910860)

1шт.

6

K909559

GASKET,1.59mm Thk

, Serial Range: (cover-housing)

1шт.

7

K604477

SCREW

5/16 UNC x 5/8 in, Serial Range: (cover-housing)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (cover-housing)

4шт.

8

K910721

KNOB

1шт.

9

K909573

DISC

FRICTION DISC

2шт.

10

K24887

SPRING

1шт.

11

K19472

WASHER

3/8 in

2шт.

12

K623930

SPRING

PIN

1шт.

13

K913263

QUADRANT

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1 1/8 in, special (quadrant to housing)

1шт.

15

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in, special (quadrant to housing)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

3шт.

16

K947403

BRACKET

FINGER GUIDE

2шт.

17

K921826

SERRATED NUT

HAND NUT, 5/16 UNF

2шт.

18

K909577

STUD

5/16 UNF, special

2шт.

19

K913935

SPRING

CARRIER PLATE AND SPRING

1шт.

20

K624582

RETAINER

CLIP (carrier, Serial Range: plate-quadrant)

1шт.

K19470

WASHER

1/4 in (carrier, Serial Range: plate-quadrant)

1шт.

K626682

WASHER

5/16 in (carrier, Serial Range: plate-quadrant)

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (carrier plate to quadrant)

1шт.

21

K913637

STOP

ABUTMENT PLATE

1шт.

22

K604575

SCREW

5/16 UNC x 5/8 in, Serial Range: (plate-quadrant)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (plate-quadrant)

2шт.

23

K913268

LEVER

CONTROL LEVER

1шт.

24

K909581

SHAFT

1шт.

25

K623942

PIN

SPRING PIN

1шт.

26

K621811

PIN

DOWEL, 3/16 x 1 in

1шт.

27

K909582

WASHER

FRICTION WASHER

2шт.

28

K950864

PLATE

FRICTION PLATE

1шт.

29

K626740

WASHER

BELLEVILLE WASHER

2шт.

K626686

WASHER

1/2 in

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

K607804

NUT

CAPPED NUT, 1/2 UNC

1шт.

30

K909584

FORK

1шт.

31

K623940

PIN

SPRING PIN

1шт.

32

K903370

PIN

1шт.

33

K909585

ROD

CONNECTING ROD

1шт.

34

K625161

SPRING

1шт.

35

K903367

COLLAR

2шт.

36

231-1435

LOCK NUT,5/16"-18, GB

NYLOC NUT, 5/16 UNC

1шт.

37

K913834

DECAL

STUD, 1/4 UNC, special (U730 optional equipment)

1шт.

K607514

NUT

1/4 UNC (U730 optional equipment)

1шт.

38

K914835

BUSHING

BUSH (U730 optional equipment)

1шт.

39

K900380

O-RING,0.487" ID x 0.693" OD x 0.103"

'O' RING, 1/2 in internal diameter (U730 optional equipment)

1шт.

40

K914833

WASHER

CATCH (U730 optional equipment)

1шт.

K626682

WASHER

5/16 in (U730 optional equipment)

1шт.

41

K623424

RING

SEALING RING, 1/2 in internal diameter

1шт.

42

K627068

BUSHING

PLASTIC SLEEVE

1шт.
