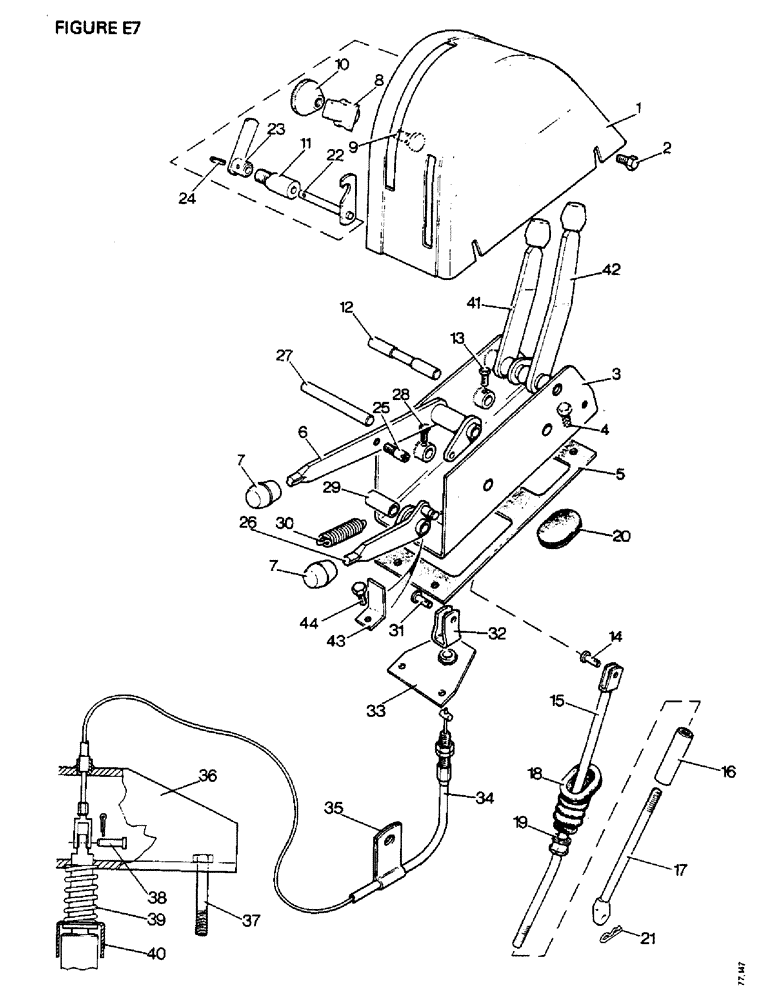

Запчасти Case IH 1410 (E07-1) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL LEVERS AND QUADRANT 1410Q, 1410SK, 1412Q, 1412SK (07) - HYDRAULIC SYSTEM

1

K950732

PANEL

QUADRANT

1шт.

2

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in, Serial Range: (quadrant-housing)

4шт.

K626682

WASHER

5/16 in, Serial Range: (quadrant-housing)

4шт.

3

K950733

LEVER

HOUSING, control levers

1шт.

4

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in (housing to cab floor)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (housing to cab floor)

4шт.

5

K950882

MAT

RUBBER MAT (housing to cab floor)

1шт.

6

K950758

LEVER

CONTROL LEVER, hydraulic system

1шт.

7

K950493

KNOB

control levers

2шт.

8a

K947403

BRACKET

FINGER GUIDE (eff. S/N Note A)

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

8b

K951340

BRACKET

FINGER GUIDE (up to S/N Note A)

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

9

K909577

STUD

5/16 UNF special

2шт.

10

K921826

SERRATED NUT

HAND NUT, 5/16 UNF

2шт.

11

K952324

STOP

control lever

1шт.

K19473

WASHER

7/16 in, Serial Range: (stop-quadrant)

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, Serial Range: (stop-quadrant)

1шт.

K616983

NUT

7/16 UNF, Serial Range: (stop-quadrant)

1шт.

12

K950862

SHAFT

control lever

1шт.

13

K619204

SCREW

SETSCREW, No. 10 UNF x 1/2 in

1шт.

14

K950866

LARGE PIN

CLEVIS PIN, 1/4 x 13/16 in

1шт.

K623605

PIN

SPLIT PIN, 1/16 x 1/2 in

1шт.

15

K950843

ROD

CONTROL ROD, long

1шт.

K616982

NUT

3/8 UNF

1шт.

16

K950846

NUT

ADJUSTING SLEEVE, 3/8 UNF

1шт.

K622808

NUT

LOCKNUT, 3/8 UNF, left-hand

1шт.

17

K951295

ROD

CONTROL ROD, short

1шт.

18

K950691

SEAL

GAITER, control rod

1шт.

19

K950871

BUSHING

NYLON BUSH, halves

2шт.

20

K627734

GROMMET

2шт.

21

K950865

CLIP

SPRING CLIP, control rod

1шт.

K19470

WASHER

1/4 in

2шт.

22

K952325

CATCH

control lever (U1948 optional equipment)

1шт.

23

K952328

CATCH

LEVER (U1948 optional equipment)

1шт.

24

K623973

SPRING

PIN, 3/32 x 9/16 in (U1948 optional equipment)

1шт.

25

K952336

STOP

STUD, 1/4 UNC special (U1948 optional equipment)

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (U1948 optional equipment)

1шт.

K607043

NUT

1/4 UNC (U1948 optional equipment)

1шт.

26

K950769

LEVER

CONTROL LEVER, dump valve

1шт.

27

K950863

SHAFT

dump lever

1шт.

28

K613984

SCREW

SETSCREW, No. 10 UNF x 1/2 in

1шт.

29

K950898

BUSHING

SPACER

1шт.

30

K624922

SPRING

RETURN SPRING

1шт.

31

K950866

LARGE PIN

CLEVIS PIN, 1/4 x 13/16 in

1шт.

K623605

PIN

SPLIT PIN, 1/16 x 1/2 in

1шт.

32

K951948

STIRRUP

FORK END, slotted

1шт.

33

K951945

SUPPORT

cable

1шт.

34

K951944

CABLE

dump valve

1шт.

35

K621603

CLIP

CABLE CLIP

2шт.

36

K951941

BRACKET

SUPPORT BRACKET, cable

1шт.

37

K601217

BOLT

5/8 UNC x 4 1/2 in (support bracket to cab and bracket)

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in (support bracket to cab and bracket)

2шт.

38

K625959

PIN

CLEVIS PIN, 3/16 x 5/8 in

1шт.

K623605

PIN

SPLIT PIN, 1/16 x 1/2 in

1шт.

39

K625122

SPRING

RETURN SPRING

1шт.

40

K951940

CAP

1шт.

41

K950762

LEVER

HAND LEVER, live take-off valve

1шт.

42

K950766

LEVER

HAND LEVER, live take-off valve

1шт.

43

K952523

BRACKET

STOP BRACKET LEVER

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (bracket to cab floor)

1шт.
