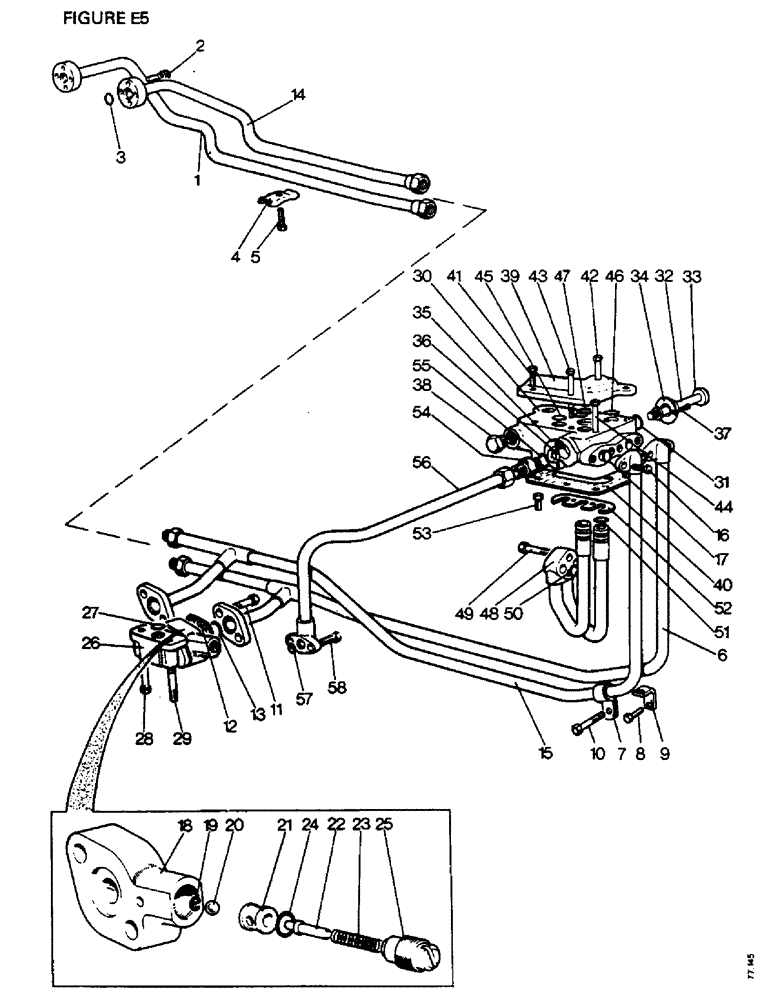

Запчасти Case IH 1410 (E05-1) - SELECTAMATIC HYDRAULIC SYSTEM, HIGH PRESSURE PIPES, TANDEM PUMP (07) - HYDRAULIC SYSTEM

1a

K944969

PIPE

rear pump outlet

1шт.

If dealer is looking for an adapter to use a hose in place of the tube, use part number K207716

1шт.

1412, 1412Q, 1412G, 1412SK

1шт.

1b

K950128

PIPE

rear pump outlet

1шт.

1412, 1412Q, 1412G, 1412SK

1шт.

2a

K606504

SCREW

1/4 UNC x 1 in

8шт.

1410, 1410Q, 1410SK

1шт.

2a

K606504

SCREW

1/4 UNC x 1 in

4шт.

1412, 1412Q, 1412G, 1412SK

1шт.

2b

K606515

SCREW

1/4 UNC x 2 3/8 in

4шт.

1412, 1412Q, 1412G, 1412SK

1шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' RING, 5/8 in internal diameter

2шт.

4

K916899

BRACKET

outlet pipes

2шт.

5

K602806

BOLT

SETSCREW, 5/16 UNC x 1 1/8 in

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

6

K951043

PIPE

relief valve to combining valve (up to S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

7a

K621686

CLIP

PIPE CLIP (pipes to right-hand hitch bracket) (up to S/N Note A)

2шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

7b

K952124

CLIP

PIPE CLIP (pipes to right-hand hitch bracket) (eff. S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K628240

STRIP

RUBBER STRIP (pipes to right-hand hitch bracket)

2шт.

8

K602906

SCREW

SETSCREW, 3/8 UNC x 1 1/4 in (pipes to right-hand hitch bracket)

1шт.

9

K949981

BRACKET

(pipes to right-hand hitch bracket) (up to S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K952123

CLIP

PIPE CLIP (pipes to right-hand hitch bracket) (eff. S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

10a

K602908

SCREW

BOLT, 3/8 UNC x 1 1/2 in (pipes to right-hand hitch bracket) (up to S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipes to right-hand hitch bracket)

1шт.

280136

NUT,3/8"-16, G8

(Pipes to RH hitch bracket) 3/8"-16, G8

1шт.

10b

K602704

SCREW

SETSCREW, 1/4 UNC x 7/8 in (pipes to right-hand hitch bracket) (eff. S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (pipes to right-hand hitch bracket) (eff. S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K627089

BUSHING

DISTANCE PIECE (pipes to right-hand hitch bracket) (eff. S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in (Pipes to right-hand hitch bracket)

2шт.

11a

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in (pipes to relief valve) (up to S/N Note A)

2шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipes to relief valve) (up to S/N Note A)

2шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

11b

K600413

BOLT

3/8 UNC x 2 5/8 in (pipes to relief valve) (eff. S/N Note A)

2шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K928522

SEAL

(pipes to relief valve)

1шт.

12a

K919415

SEAL

pipe flange (pipes to relief valve)

1шт.

12b

K928522

SEAL

bleed valve to relief valve (pipes to relief valve)

1шт.

13

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

'O' RING, 13/18 in internal diameter (pipes to relief valve)

3шт.

14

K949975

PIPE

front pump outlet, (Replaces K949375)

1шт.

If dealer is looking for an adapter to use a hose in place of the tube, use part number K207716

1шт.

15a

K952119

PIPE

relief valve to combining valve (eff. S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

15b

K949977

PIPE

relief valve to combining valve (up to S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

16a

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SETSCREW, 5/16 UNC x 7/8 in (pipes to combining valve) (eff. S/N Note A)

4шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (pipes to combining valve)

4шт.

16b

K608102

STUD

5/16 UNC x 1 1/4 in (pipes to combining valve) (up to S/N Note A)

4шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (pipes to combining valve) (up to S/N Note A)

4шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

17

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter (pipes to combining valve)

2шт.

K928525

VALVE

BLEED VALVE (pipes to combining valve)

1шт.

18

K928518

HOUSING

BODY

1шт.

19

K924115

BALL

RETAINER, ball

1шт.

20

211-8

BALL,9/32" Dia

steel 9/32" Dia

1шт.

K626792

WASHER

5/16 in special

1шт.

21

K924321

VALVE

SEAL

1шт.

22

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

PLUNGER

1шт.

23

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

SPRING, (Replaces K625233)

1шт.

24

K24554

O-RING

'O' RING, 3/8 in internal diameter

1шт.

25

K924116

PLUG

5/8 UNF special

1шт.

26a

K952323

VALVE

RELIEF VALVE, pre-set assembly (eff. S/N Note A)

2шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

26b

K919417

VALVE

RELIEF VALVE, pre-set assembly, rear pump (up to S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

26c

K928524

VALVE

RELIEF VALVE, pre-set assembly, front pump (up to S/N Note A)

1шт.

1410, 140Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11100752

1шт.

27

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter

2шт.

28

K600608

BOLT

7/16 UNC x 2 1/4 in

3шт.

29

K608315

STUD

7/16 UNC x 2 3/4 in

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

4шт.

280717

NUT,7/16"-14, G5

1шт.

30

K919808

VALVE

COMBINING VALVE ASSEMBLY

1шт.

31

K625405

O-RING,0.549" ID x 0.103" Width

'O' RING, 9/16 in internal diameter

2шт.

32

K919702

SPOOL

EXTENSION, spool

1шт.

33

K919703

KNOB

1шт.

34

K919704

CAP

END CAP

1шт.

35

K923484

CAP

END CAP ASSEMBLY

1шт.

36

K915393

FOAM

BREATHER PAD

1шт.

37

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in

2шт.

K614946

SCREW,Pan, #10 - 32 x 3/4"

No. 10 UNF x 3/4 in

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

4шт.

38

K619528

PLUG

7/8 in UNF

1шт.

K30085

GASKET

FIBRE WASHER, 7/8 in

1шт.

39

K919242

COVER

plate

1шт.

40

K917387

GASKET

(cover and valve to axle case)

2шт.

41

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Cover and valve to axle case) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

42

K600421

BOLT

3/8 UNC x 4 1/4 in (cover and valve to axle case)

1шт.

43

K600419

BOLT

3/8 UNC x 3 3/4 in (cover and valve to axle case)

2шт.

44

K600417

BOLT

3/8 UNC x 3 1/4 in (cover and valve to axle case)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (cover and valve to axle case)

6шт.

45

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter (cover and valve to axle case)

3шт.

46

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' RING, 3/4 in internal diameter (cover and valve to axle case)

2шт.

47

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' RING, 1 3/16 in internal diameter (cover and valve to axle case)

1шт.

48

K952224

PIPE

control valve to combining valve

1шт.

49

K600405

BOLT

3/8 UNC x 1 5/8 in (pipe to control valve)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipe to control valve)

2шт.

50

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' RING, 7/16 in internal diameter (pipe to control valve)

2шт.

51

K623557

O-RING

'O' RING, 9/16 in internal diameter

2шт.

52

K915344

WASHER

LOCATING PLATE

1шт.

53

K603662

SCREW

SETSCREW, 1/4 UNC x 5/8 in

2шт.

54

K626026

FITTING

UNION, 7/8 UNF

1шт.

K30085

GASKET

FIBRE WASHER, 7/8 in

1шт.

55

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' RING, 5/8 in internal diameter

1шт.

56

K929843

PIPE

combining valve to ram cylinder

1шт.

57

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter

1шт.

58

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.
