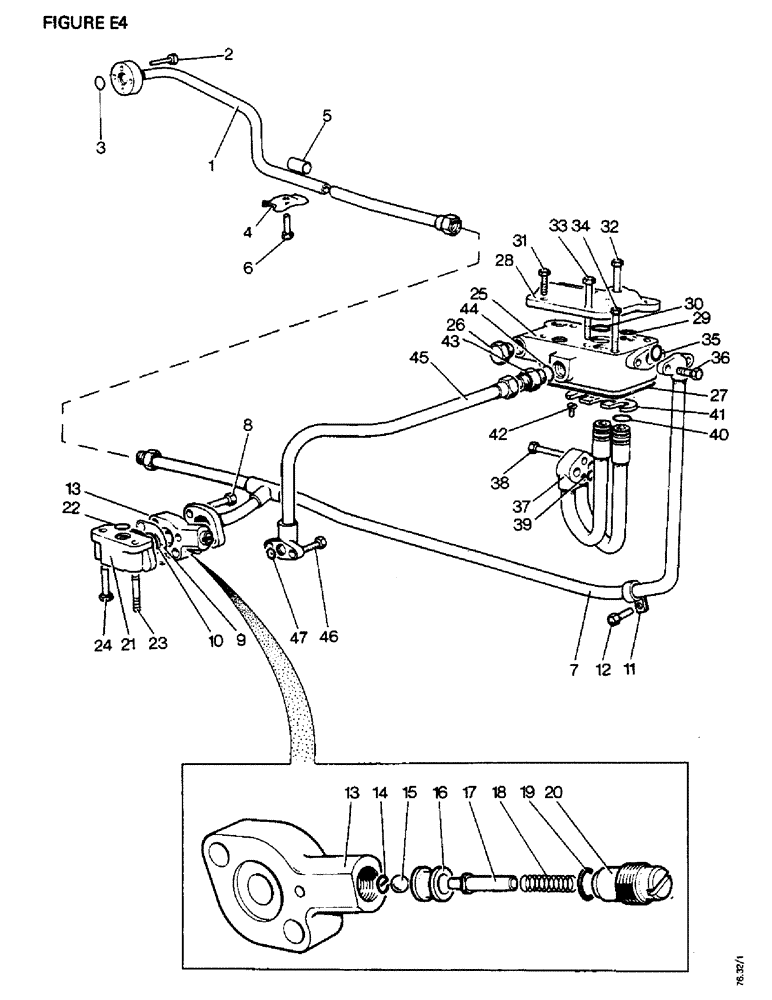

Запчасти Case IH 1410 (E04-1) - SELECTAMATIC HYDRAULIC SYSTEM, HIGH PRESSURE PIPES, SINGLE PUMP (07) - HYDRAULIC SYSTEM

1a

K944969

PIPE

pump outlet

1шт.

1412, 1412Q, 1412G, 1412SK

1шт.

1b

K950128

PIPE

pump outlet

1шт.

1410, 1410Q, 1410SK

1шт.

2a

K606515

SCREW

1/4 UNC x 2 3/8 in, Serial Range: (pipes-pump)

4шт.

1412, 1412Q, 1412G, 1412SK

1шт.

2b

K606504

SCREW

1/4 UNC x 1 in, Serial Range: (pipes-pump)

4шт.

1410, 1410Q, 1410SK

1шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' RING, 5/8 in internal diameter (pipes to pump)

1шт.

4

K916899

BRACKET

outlet-pipes

2шт.

K628240

STRIP

RUBBER STRIP

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK

1шт.

5

K919418

SUPPORT

BLOCK

2шт.

6

K602806

BOLT

SETSCREW, 5/16 UNC x 1 1/8 in

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

7a

K947874

PIPE

external filter to distribution block (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK

1шт.

7b

K944683

PIPE

valve to distrution block (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK

1шт.

8a

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in (pipe to relief valve) (up to S/N Note A)

2шт.

1410, 1410Q, 1410SK

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipe to relief valve)

2шт.

8b

K600413

BOLT

3/8 UNC x 2 5/8 in (pipe to relief valve) (eff. S/N Note A)

2шт.

1410, 1410Q, 1410SK

1шт.

9

K928522

SEAL

(pipe to relief valve)

1шт.

10

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

'O' RING, 13/16 in internal diameter (pipe to relief valve)

2шт.

11

K621686

CLIP

(pipe to hitch bracket)

1шт.

K628240

STRIP

RUBBER STRIP (pipe to hitch bracket)

1шт.

12

K602906

SCREW

SETSCREW, 3/8 UNC x 1 1/4 in (pipe to hitch bracket)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipe to hitch bracket)

1шт.

280136

NUT,3/8"-16, G8

(Pipe to hitch bracket) 3/8"-16, G8

1шт.

K928525

VALVE

BLEED VALVE ASSEMBLY, Includes: Ref. 13 - 20

1шт.

13

K928518

HOUSING

BODY

1шт.

14

K924115

BALL

RETAINER, ball

1шт.

15

K620089

BALL

STEEL BALL, 9/32 in

1шт.

K626792

WASHER

5/16 in special

1шт.

16

K924321

VALVE

SEAT

1шт.

17

K924117

PLUNGER

1шт.

18

K625233

SPRING

1шт.

19

K24554

O-RING

'O' RING, 3/8 in internal diameter

1шт.

20

K924116

PLUG

5/8 UNF special

1шт.

21a

K952323

VALVE

RELIEF VALVE, pre-set assembly (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK

1шт.

21b

K928524

VALVE

RELIEF VALVE, pre-set assembly (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK

1шт.

22

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter (valve to main frame)

1шт.

23

K608315

STUD

7/16 UNC x 2 3/4 in (valve to main frame)

1шт.

280717

NUT,7/16"-14, G5

(Valve to main frame) 7/16"-14, G5

1шт.

24

K600608

BOLT

7/16 UNC x 2 1/4 in (valve to main frame)

1шт.

K626522

SEALING WASHER

SEALING WASHER, 7/16 in (valve to main frame)

2шт.

25

K919241

DISTRIBUTOR

DISTRIBUTION BLOCK

1шт.

26

K619528

PLUG

7/8 UNF

1шт.

K30085

GASKET

FIBRE WASHER, 7/8 in

1шт.

27

K917387

GASKET

1шт.

28

K919242

COVER

PLATE

1шт.

29

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter

5шт.

30

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' RING, 1 3/16 in internal diameter

1шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

K600414

BOLT

3/8 UNC x 2 3/4 in

1шт.

33

K600416

BOLT

3/8 UNC x 3 in

2шт.

34

K600418

BOLT

3/8 UNC x 3 1/2 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

6шт.

35

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter (pipe to distribution block)

1шт.

36a

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in (pipe to distribution block) (eff. S/N Note A)

2шт.

1410, 1410Q, 1410SK

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (pipe to distribution block)

2шт.

36b

K608102

STUD

5/16 UNC x 1 1/4 in (pipe to distribution block) (up to S/N Note A)

2шт.

1410, 1410Q, 1410SK

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (pipe to distribution block) (up to S/N Note A)

2шт.

1410, 1410Q, 1410SK

1шт.

37

K952224

PIPE

control valve to distribution block replaces K928773

1шт.

38

K600405

BOLT

3/8 UNC x 1 5/8 in (pipe to control valve)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipe to control valve)

2шт.

39

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' RING, 7/16 in internal diameter (pipe to control valve)

2шт.

40

K623557

O-RING

'O' RING, 9/16 in internal diameter

2шт.

41

K915344

WASHER

LOCATING PLATE

1шт.

42

K603662

SCREW

SETSCREW, 1/4 UNC x 5/8 in

2шт.

43

K626026

FITTING

UNION, 7/8 UNF

1шт.

44

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' RING, 5/8 in internal diameter

1шт.

45

K929843

PIPE

distribution block to ram cylinder

1шт.

46

K602806

BOLT

SETSCREW, 5/16 UNC x 1 1/8 in (pipe to take-off valve)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (pipe to take-off valve)

2шт.

47

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter (pipe to take-off valve)

1шт.
