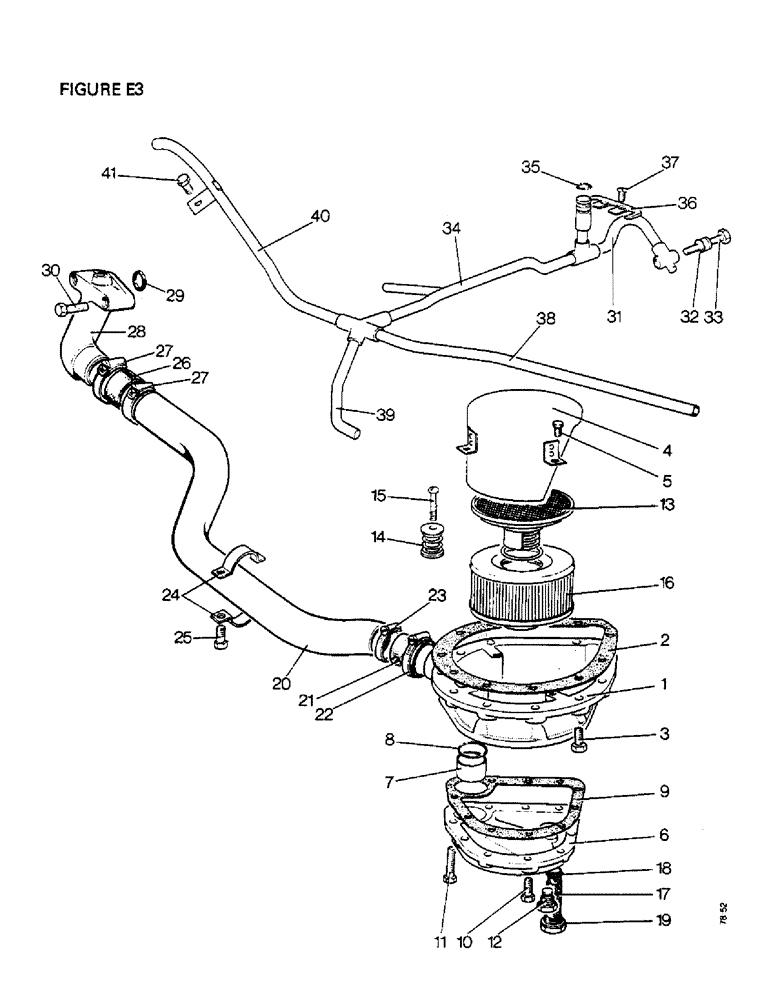

Запчасти Case IH 1410 (E03-1) - SELECTAMATIC HYDRAULIC SYSTEM, SUCTION FILTER AND LOW PRESSURE PIPED UP TO S/N NOTE A (07) - HYDRAULIC SYSTEM

1

K940382

HOUSING

suction filter

1шт.

2

K940407

GASKET

1шт.

3

K602806

BOLT

SCREW, 5/16 UNC x 1 1/8 in

10шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

10шт.

4

K929849

COVER

FILTER HOUSING

1шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

3шт.

5

K613984

SCREW

No. 10 UNF x 1/2 in

3шт.

6

K940399

COVER

gearbox sump

1шт.

7

K921882

SEAL

INSERT, sump cover

1шт.

8

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' RING, 1 3/4 in internal diameter (sump cover to housing)

1шт.

9

K940408

GASKET

(sump cover housing)

1шт.

10

K600211

BOLT

5/16 UNC x 2 1/4 in (sump cover housing)

9шт.

11

K600226

BOLT

5/16 UNC x 5 1/4 in (sump cover housing)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (sump cover housing)

10шт.

12

K623842

PLUG

DRAIN PLUG, 5/8 UNC

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

'O' RING, 5/16 in internal diameter, drain plug

1шт.

K626795

WASHER

SEALING WASHER, 5/8 in

1шт.

K929853

FILTER

ASSEMBLY, Includes: Ref. 13 - 16

1шт.

13

K920521

VALVE

AND SCREEN, Includes: Ref. 14 and 15

1шт.

14

K942788

PLUG

MAGNET

1шт.

15

211-207

BALL

1шт.

K623002

LOCK NUT

NYLOC NUT, 2BA

1шт.

16

K929095

FILTER, ELEMENT

PAPER ELEMENT

1шт.

17

K942039

FILTER

INLET FILTER, gearbox sump

1шт.

1412, 1412Q, 1412SK

1шт.

1412G

1шт.

18

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

'O' RING, 3/4 in internal diameter

1шт.

1412, 1412G, 1412SK

1шт.

1412G

1шт.

K623830

PLUG

1 in BSP

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

19

K11120

SEALING WASHER

SEALING WASHER

1шт.

20

K945282

PIPE

INLET PIPE

1шт.

21

K924378

HOSE

CONNECTION (pipe to suction filter housing)

1шт.

22

K11806

HOSE

CLIP, 2 1/2 in (pipe to suction filter housing)

1шт.

23

K621960

HOSE

CLIP, 2 1/4 in (pipe to suction filter housing)

1шт.

24

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

BRACKET (pipe to main frame)

4шт.

25

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in (pipe to main frame)

2шт.

K608128

STUD

5/16 UNC x 1 3/8 in (pipe to main frame)

2шт.

1412, 1412Q, 1412SK

1шт.

1410

1шт.

1412G

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (pipe to main frame)

2шт.

1412, 1412Q, 1412SK

1шт.

1410

1шт.

1412G

1шт.

K19471

WASHER

5/16 in (pipe to main frame)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (pipe to main frame)

4шт.

26

K917126

HOSE

CONNECTION

1шт.

27

K621960

HOSE

CLIP, 2 1/4 in

2шт.

28a

K945283

X

ELBOW, pump inlet

1шт.

1412, 1412Q, 1412SK

1шт.

1412G

1шт.

28b

K950129

FITTING

ELBOW, pump inlet

1шт.

1412, 1412Q, 1412SK

1шт.

1410

1шт.

29

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

'O' RING, 1 in internal diameter (elbow to pump)

1шт.

30

K600211

BOLT

5/16 UNC x 2 1/4 in, Serial Range: (elbow-pump)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (elbow-pump)

2шт.

31

K915339

TUBE

PIPE, control, Serial Range: valve-tee-piece

1шт.

32

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

SCREWED BUSH, 1/2 - 5/16 UNC

1шт.

K626577

WASHER

SEALING WASHER, 1/2 in

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

33

K600363

BOLT

5/16 UNC x 2 1/2 in

1шт.

K607081

LOCK NUT

LOCKNUT, 5/16 UNC

1шт.

34

K916891

PIPE

distribution, Serial Range: block-cross-piece

1шт.

35

K623557

O-RING

'O' RING, 9/16 in internal diameter

1шт.

36

K915344

WASHER

LOCATING PLATE

1шт.

37

K603662

SCREW

1/4 UNC x 5/8 in

2шт.

38a

K945396

PIPE

PTO lubrication, single speed

1шт.

1412, 1412Q, 1412SK

1шт.

38b

K919662

PIPE

PTO lubrication, multi-speed

1шт.

1410Q, 1410SK

1шт.

1412, 1412Q, 1412SK

1шт.

1410

1шт.

38c

K923462

PIPE

PTO lubrication, multi-speed

1шт.

1412G

1шт.

39

K913785

PIPE,0.5" OD

ram cylinder lubrication

1шт.

40a

K942372

PIPE

gearbox lubrication

1шт.

1412, 1412Q, 1412SK

1шт.

1412G

1шт.

40b

K951641

PIPE

gearbox lubrication

1шт.

1410Q, 1410SK

1шт.

40c

K940995

PIPE

gearbox lubrication

1шт.

1410

1шт.

41

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.
