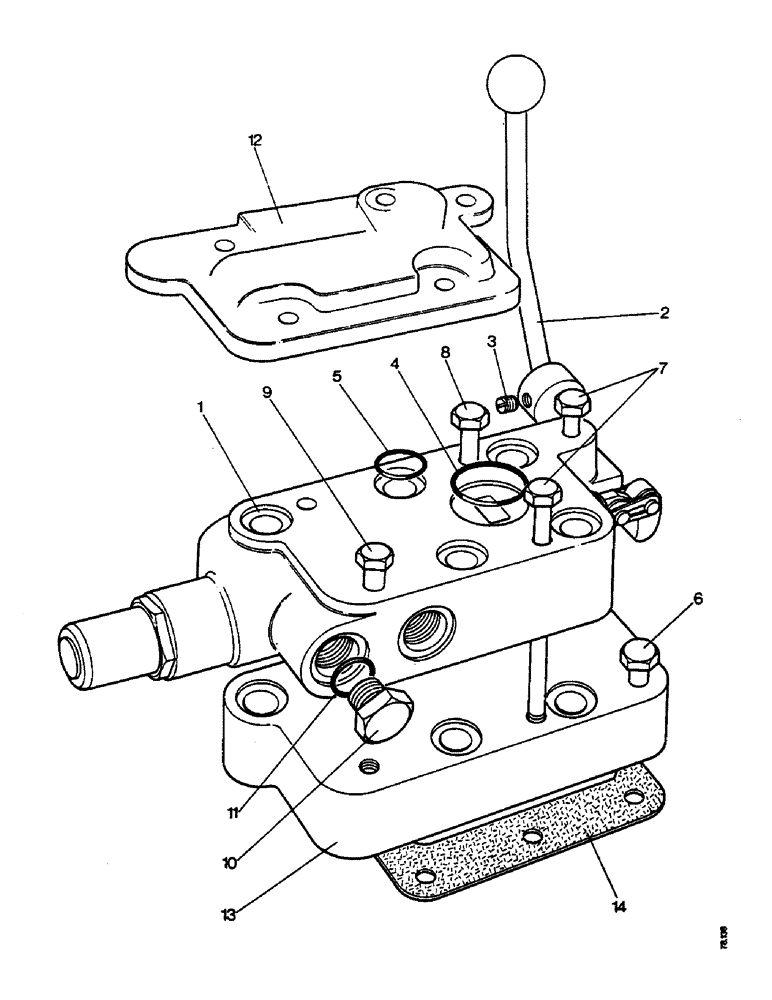

Запчасти Case IH 1212 (E40) - SELECTAMATIC HYDRAULIC SYSTEM, DOUBLE ACTING LIVE TAKE-OFF VALVE UNIT, SINGLE - ALL MODELS (07) - HYDRAULIC SYSTEM

K918183

NO LONGER SERVICED

SINGLE LIVE TAKE-OFF VALVE, (U948) (1210, 1212)

1шт.

K918957

NO LONGER SERVICED

SINGLE LIVE TAKE-OFF VALVE, (U844) (885, 990, 995, 996)

1шт.

K930230

NO LONGER SERVICED

PIPES AND COUPLINGS FOR SINGLE VALVE, (U1400) (all models)

1шт.

K930230 kit same as UK1400 & K140000

1шт.

1a

K943825

VALVE

CONTROL VALVE ASSEMBLY, (See Figure 23), replaces K943825

1шт.

1b

K919689

NO LONGER SERVICED

CONTROL VALVE ASSEMBLY, (See Figure 23)

1шт.

K925978

NO LONGER SERVICED

CONVERSION KIT, (U1337), single to twin take off valve (use with U844)

1шт.

K925979

NO LONGER SERVICED

CONVERSION KIT, (U1338), single to twin take off valve (use with U948)

1шт.

2

K946383

LEVER

HAND LEVER

1шт.

K622382

KEY

Woodruff No. 403

1шт.

3

K606322

SCREW

GRUBSCREW, 5/16 UNC x 3/8 in

1шт.

4

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' RING, 1-3/16 in internal dia.

1шт.

5

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal dia.

5шт.

6a

K600414

BOLT

3/8 UNC x 2-3/4 in (1210, 1212)

1шт.

7a

K600516

BOLT

3/8 UNC x 4-3/4 in, single pump (1210, 1212)

2шт.

8a

K600517

BOLT

3/4 UNC x 5-1/4 in, single pump (1210, 1212)

1шт.

7c

K600518

BOLT

3/4 UNC x 5-1/2 in, tandem pump (1210, 1212)

2шт.

8c

K600513

BOLT

3/4 UNC x 6 in, tandem pump (1210, 1212)

1шт.

6b

K600510

BOLT

3/8 UNC x 2 in (885, 990, 995, 996)

1шт.

7b

K600511

BOLT

3/8 UNC x 4-1/4 in (885, 990, 9955, 996)

2шт.

8b

K600512

BOLT

3/8 UNC x 4-1/2 in (885, 990, 995, 996)

1шт.

9a

K600515

BOLT

3/8 UNC x 2-3/4 in

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

6шт.

10

K920826

O-RING

PLUG, 3/4 UNF

2шт.

11

K623589

O-RING

'O' RING, 11/16 in internal dia.

2шт.

12

K919242

COVER

valve body

1шт.

13

K962085

BASE

PLATE (885, 990, 995, 996)

1шт.

14

K917387

GASKET

base plate to axle case (885, 990, 995, 996)

1шт.

K133700 Conv. Kit Single to Twin Valve, K956421 Valve & K946383 Valve

1шт.

K962423 Control Valve Remanufactured all models except 1400 Series.

1шт.
