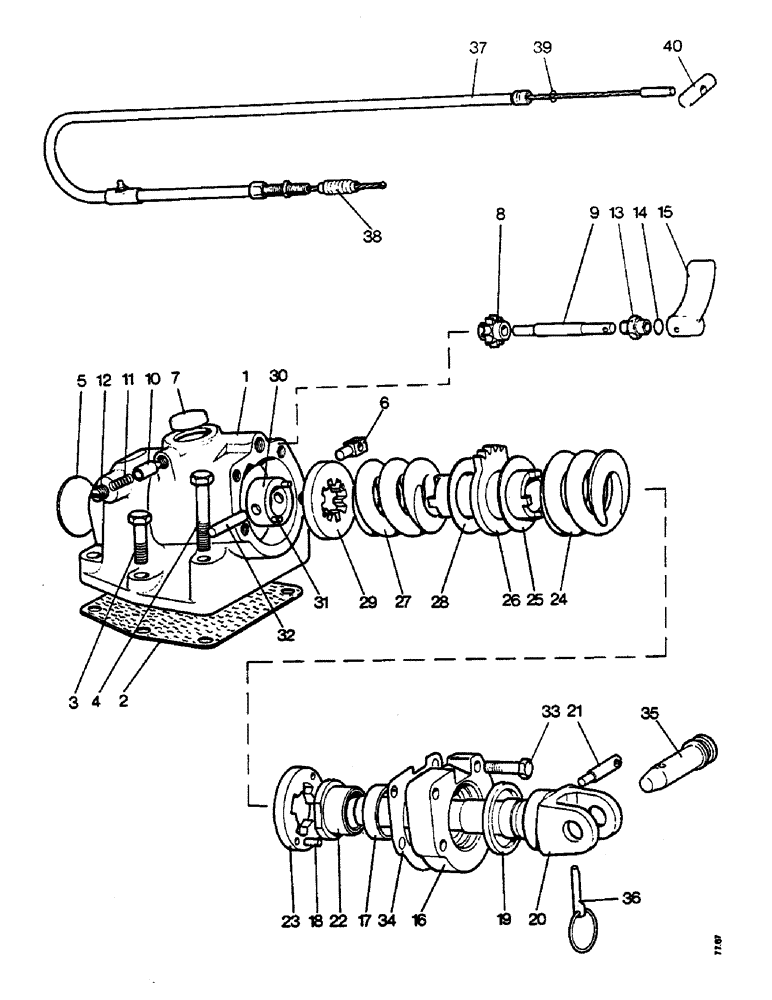

Запчасти Case IH 1212 (E32) - SELECTAMATIC HYDRAULIC SYSTEM, SELECTIVE SENSING UNIT U1376, 1212 TRACTORS (07) - HYDRAULIC SYSTEM

K930052

SELECTIVE SENSING UNIT U1376 - 1212 Tractors (Also Alternative Equipment on 990, 995, 996 and 1210 Tractors)

1шт.

1

K940028

SPRING

HOUSING

1шт.

2

K926451

GASKET,0.56mm Thk

housing to PTO unit

1шт.

3

K600805

BOLT

1/2 UNC x 1-7/8, housing to PTO unit

4шт.

4

K600815

BOLT

1/2 UNC x 3-1/4 in, housing to PTO unit

2шт.

K19484

LOCK WASHER

SPRING WASHER, 3/8 in, housing to PTO unit

6шт.

5

K623813

PLUG

WELCH PLUG, 2-3/8 in, housing to PTO unit

1шт.

6

K912371

CABLE

SUPPORT, outer

1шт.

7

K623797

PLUG

CORE PLUG, 1-3/4 in

1шт.

8

K929874

SELECTOR

PINION

1шт.

9

K940044

SELECTOR

SPINDLE

1шт.

K690338

PIN

SPRING PIN, 5/32 x 5/8 in

1шт.

10

K946440

PLUNGER

detent, use in sets

1шт.

11

K625285

SPRING

detent plunger, use in sets

1шт.

12

K606281

SCREW

GRUBSCREW, 1/2 UNC

1шт.

13

K940045

BUSHING

SCREWED BUSH

1шт.

14

K623681

WIPER

RING, 1/2 in internal dia.

1шт.

15

K940046

SELECTOR

LEVER

1шт.

K623727

GROOVED PIN,5/32" x 7/8", Type A

SPRING PIN, 5/32 x 7/8 in

1шт.

K947303

SHAFT

ASSEMBLY, supersedes 942305 (TB 102 Hydraulics), Includes: Ref. 16A - 23A

1шт.

16a

K947300

END PLATE

use with 947303 (TB 102 Hydraulics), Includes: Ref. 17 & 18

1шт.

16b

K940029

END PLATE

use with 942305, Includes: Ref. 17 & 18

1шт.

17

K621423

BUSHING

BUSH

1шт.

18

K940031

PIN

DOWEL, 1/4 x 3/4 in

2шт.

19

K623460

WIPER

SEAL, 2-1/2 in internal dia.

1шт.

20

K929808

SHAFT

1шт.

21

K940047

BRACKET

CABLE SUPPORT, inner

1шт.

22

K940035

SLEEVE

1шт.

23a

K947302

WASHER

THRUST WASHER, use with 947300 (TB 102 Hydraulics)

1шт.

23b

K940048

WASHER

THRUST WASHER, use with 940029 (TB 102 Hydraulics), Includes: Ref. 24 - 32

1шт.

24

K928315

SPRING

2.04 in internal dia.

1шт.

25a

K928388

SHIM

0.003 in

1шт.

25b

K928389

SHIM

0.007 in

1шт.

25c

K928390

SHIM

0.015 in

1шт.

26

K940036

SUPPORT

SPRING SUPPORT

1шт.

27

K928314

SPRING

1.76 in internal dia.

1шт.

28a

K928392

SHIM

0.003 in

1шт.

28b

K928393

SHIM

0.007 in

1шт.

28c

K928394

SHIM

0.015 in

1шт.

29a

K940039

WASHER

THRUST WASHER, 0.373 in, alternatives

1шт.

29b

K940040

WASHER

THRUST WASHER, 0.365 in, alternatives

1шт.

29c

K940041

WASHER

THRUST WASHER, 0.357 in, alternatives

1шт.

30

K947867

COLLAR

(with dowels) (TB 102 Hydraulics)

1шт.

31

K940043

PIN

STEPPED DOWEL

2шт.

32

K915117

PIN

RETAINING PIN, 3/8 2-1/4 in

1шт.

33

K600606

BOLT

7/16 UNC x 2 in, Serial Range: end-plate-housing

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, Serial Range: end-plate-housing

4шт.

34a

K940032

SHIM

0.005 in, Serial Range: end-plate-housing

1шт.

34b

K940033

SHIM

0.010 in, Serial Range: end-plate-housing

1шт.

34c

K940034

SHIM

0.030 in, Serial Range: end-plate-housing

1шт.

35

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN

1шт.

36

K66408

PIN

LINCH PIN AND RING

1шт.

37

K963417

LINK

CABLE, with dirt excluder

1шт.

38

K911970

BOOT

DIRT EXCLUDER

1шт.

39

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

'O' RING, 1/4 in internal dia.

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

40

K915053

FITTING

1шт.

K617080

NUT

No. 10 UNF

2шт.

K964984

COLLAR

SERVICE KIT, Includes: Ref. 29 & 30

1шт.
