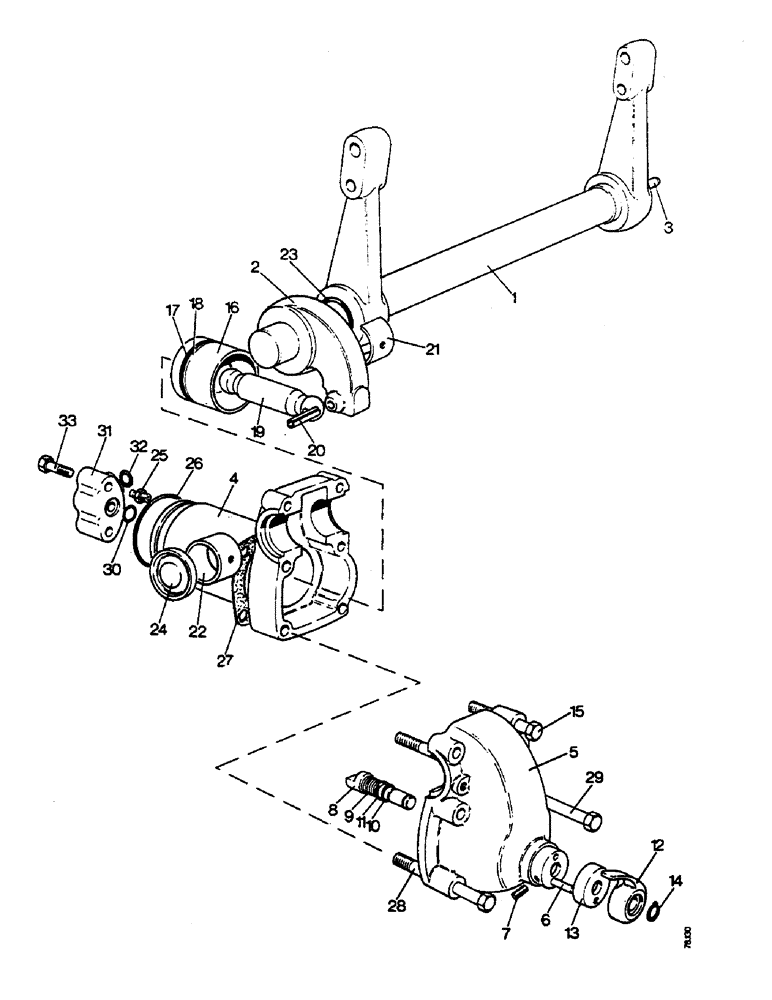

Запчасти Case IH 1212 (E22) - SELECTAMATIC HYDRAULIC SYSTEM, RAMSHAFT AND RAM CYLINDER, 990, 995, 996, 1210 AND 1212 TRACTORS (07) - HYDRAULIC SYSTEM

1a

K921919

SHAFT

RAMSHAFT AND LEVERS (1210, 1212), Includes: Ref. 2 & 3

1шт.

1b

K916568

SHAFT ASSY.

RAMSHAFT AND LEVERS (990, 995, 996), Includes: Ref. 2 & 3

1шт.

2

K913762

ARM

RAM LEVER

1шт.

3

K621807

PIN

DOWEL, 5/16 x 1/2 in

1шт.

4

K961922

COVER

CYLINDER BODY AND COVER ASSEMBLY, Includes: Ref. 5 - 15 and nut and shakeproof washer

1шт.

5

K961923

COVER

AND LIFT LOCK ASSEMBLY, Includes: Ref. 6 - 14

1шт.

6

K620027

NEEDLE

ROLLER

2шт.

7

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

LOCATING SCREW

1шт.

8

K913775

SPARE PART

LATCH PIN

1шт.

9

K913436

SPRING

1шт.

10

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' RING, 3/4 in internal dia., latch pin

1шт.

11

K907061

BUSHING

SPACER RING

1шт.

12

K947974

LEVER ASSY.

OPERATING LEVER

1шт.

K626210

SHIM,.030" Thk

1шт.

13

K913724

DUST CAP

DIRT EXCLUDER

1шт.

14

K11290

RING, SNAP

CIRCLIP, 3/4 in external

2шт.

K924685

RUBBER

RESTRICTOR, cylinder body

1шт.

15

K601218

BOLT

5/8 UNC x 4-1/2 in

2шт.

K607006

NUT

5/8 UNC

2шт.

K11516

WASHER

SHAKEPROOF WASHER, 5/8 in

2шт.

16a

K913769

PISTON

AND INSERT, standard

1шт.

16b

K946371

PISTON

AND INSERT, oversize deg. 0.020 in

1шт.

17

K623519

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

'O' RING, 3-1/8 in internal dia., piston

1шт.

18

K623567

RING,79.09mm ID x 89.18mm OD x 2.64mm Thk

ANTI-EXTRUSION RING

1шт.

19

K913774

ROD

CONNECTING ROD

1шт.

20

K623920

SPLIT PIN/SAFETY PIN

SPRING PIN, 1/4 x 1-7/8 in

1шт.

21

K913772

BEARING HALF

BEARING (halves)

2шт.

22

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

BUSH

1шт.

23

K623579

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

'O' RING, 2-3/4 in internal dia., ramshaft

1шт.

24

K913773

PLUG

SEALING DISC

1шт.

25

K910104

SCREW

VENT SCREW

1шт.

K11286

BALL

STEEL BALL, 5/16 in

1шт.

26

K623566

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

'O' RING, 3-7/8 in internal dia., cylinder body

1шт.

27

K926385

GASKET

cylinder to rear axle case

1шт.

28

K600825

SCREW

BOLT, 1/2 UNC x 5-3/4 in

2шт.

K11518

WASHER

SHAKEPROOF WASHER, 1/2 in

2шт.

29

K601280

BOLT

5/8 UNC x 13-1/8 in

2шт.

K626874

WASHER

SEALING WASHER, 5/8 in

2шт.

K11516

WASHER

SHAKEPROOF WASHER, 5/8 in

2шт.

K607006

NUT

5/8 UNC

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

30a

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal dia. (1210, 1212)

1шт.

31a

K919243

CONNECTOR, ELEC

CONNECTOR, pipe to cylinder (1210, 1212)

1шт.

32a

K15290

O-RING

'O' RING, 9/16 in internal dia., connector to pipe (1210, 1212)

1шт.

33a

K600414

BOLT

3/8 UNC x 2-3/4 in, replaces K600415, Serial Range: connector-cylinder

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, connector to cylinder (1210, 1212)

2шт.

30b

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

'O' RING, 3/4 in internal dia. (990, 995, 996)

1шт.

31b

K910107

HYD CONNECTOR

CONNECTOR, pipe to cylinder (990, 995, 996)

1шт.

K619527

PLUG

1/2 UNF (990, 995, 996)

1шт.

K15735

WASHER

SEALING WASHER, 1/2 in (990, 995, 996)

1шт.

32b

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' RING, 5/8 in internal dia., connector to pipe (990, 995, 996)

1шт.

33b

K600404

BOLT

3/8 UNC x 1/2 in (990, 995, 996)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (990, 995, 996)

4шт.
