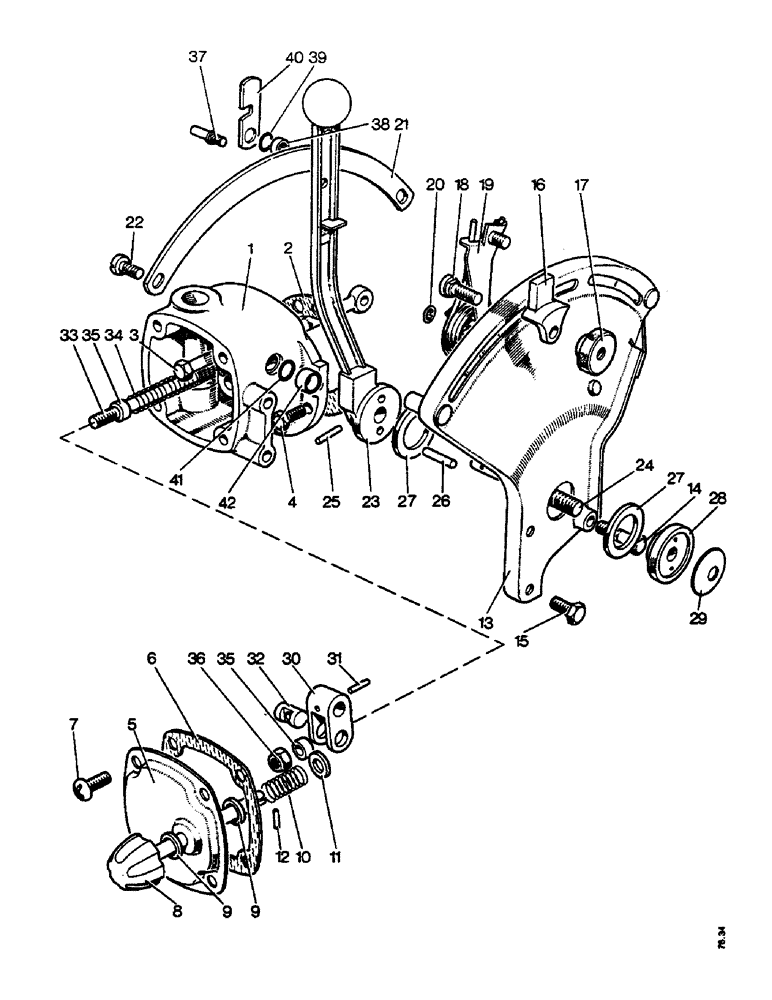

Запчасти Case IH 1212 (E10) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL LEVER AND QUADRANT - ALL MODELS (07) - HYDRAULIC SYSTEM

1a

K929786

HOUSING

(except 885)

1шт.

1b

K913745

HOUSING

(885)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Housing 1/4"-28 NPT x .54" lg

1шт.

2

K903026

GASKET

housing to axle case

1шт.

3

K600217

BOLT

5/16 UNC x 3 in, housing to axle case

2шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in, housing to axle case

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, housing to axle case

3шт.

5

K910860

WASHER

COVER

1шт.

6

K909559

GASKET,1.59mm Thk

, Serial Range: cover-housing

1шт.

7

K604477

SCREW

5/16 UNC x 5/8 in, Serial Range: cover-housing

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: cover-housing

4шт.

8

K910721

KNOB

AND SHAFT

1шт.

9

K909573

DISC

FRICTION DISC

2шт.

10

K24887

SPRING

1шт.

11

K19472

WASHER

3/8 in

2шт.

12

K623930

SPRING

PIN

1шт.

13

K913263

QUADRANT

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1-1/8 in, special, quadrant to housing

1шт.

15

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in, special, quadrant to housing

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: quadrant-housing

3шт.

16

K947403

BRACKET

FINGER GUIDE

2шт.

17

K921826

SERRATED NUT

HAND NUT, 5/16 UNF

2шт.

18

K909577

STUD

5/16 UNF, special

2шт.

19

K913935

SPRING

CARRIER PLATE AND SPRING

1шт.

20

K624582

RETAINER

CLIP, carrier, Serial Range: plate-quadrant

1шт.

K19470

WASHER

1/4 in, carrier, Serial Range: plate-quadrant

1шт.

K626682

WASHER

5/16 in, carrier, Serial Range: plate-quadrant

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, carrier plate to quadrant

1шт.

21

K913637

STOP

ABUTMENT PLATE

1шт.

22

K604575

SCREW

5/16 UNC x 5/8 in, Serial Range: plate-quadrant

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: plate-quadrant

2шт.

23

K913268

LEVER

CONTROL LEVER

1шт.

24

K909581

SHAFT

1шт.

25

K623942

PIN

SPRING PIN

1шт.

26

K621811

PIN

DOWEL, 3/16 x 1 in

1шт.

27

K909582

WASHER

FRICTION WASHER

2шт.

28

K950864

PLATE

FRICTION PLATE, replaces K909583

1шт.

29

K626740

WASHER

BELLEVILLE WASHER

2шт.

K626686

WASHER

1/2 in

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

K607804

NUT

CAPPED NUT, 1/2 UNC

1шт.

30

K909584

FORK

1шт.

31

K623940

PIN

SPRING PIN

1шт.

32

K903370

PIN

1шт.

33

K909585

ROD

CONNECTING ROD

1шт.

34

K625161

SPRING

1шт.

35

K903367

COLLAR

2шт.

36

231-1435

LOCK NUT,5/16"-18, GB

NYLOC NUT, 5/16 UNC

1шт.

37

K914834

STUD

1/4 UNC, special (U730 (911471) (catch unit) (optional equipment)

1шт.

K607514

NUT

1/4 UNC (optional equipment)

1шт.

38

K914835

BUSHING

BUSH (optional equipment)

1шт.

39

K900380

O-RING,0.487" ID x 0.693" OD x 0.103"

'O' RING, 1/2 in internal dia. (optional equipment)

1шт.

40

K914833

WASHER

CATCH (optional equipment)

1шт.

K626682

WASHER

5/16 in (optional equipment)

1шт.

41

K623424

RING

SEALING RING, 1/2 in internal dia.

1шт.

42

K627068

BUSHING

PLASTIC SLEEVE

1шт.
