Запчасти Case IH 1212 (M10) - ELECTRICAL EQUIPMENT, ALTERNATOR AND BATTERY, 1210 AND 1212 TRACTORS (06) - ELECTRICAL SYSTEMS

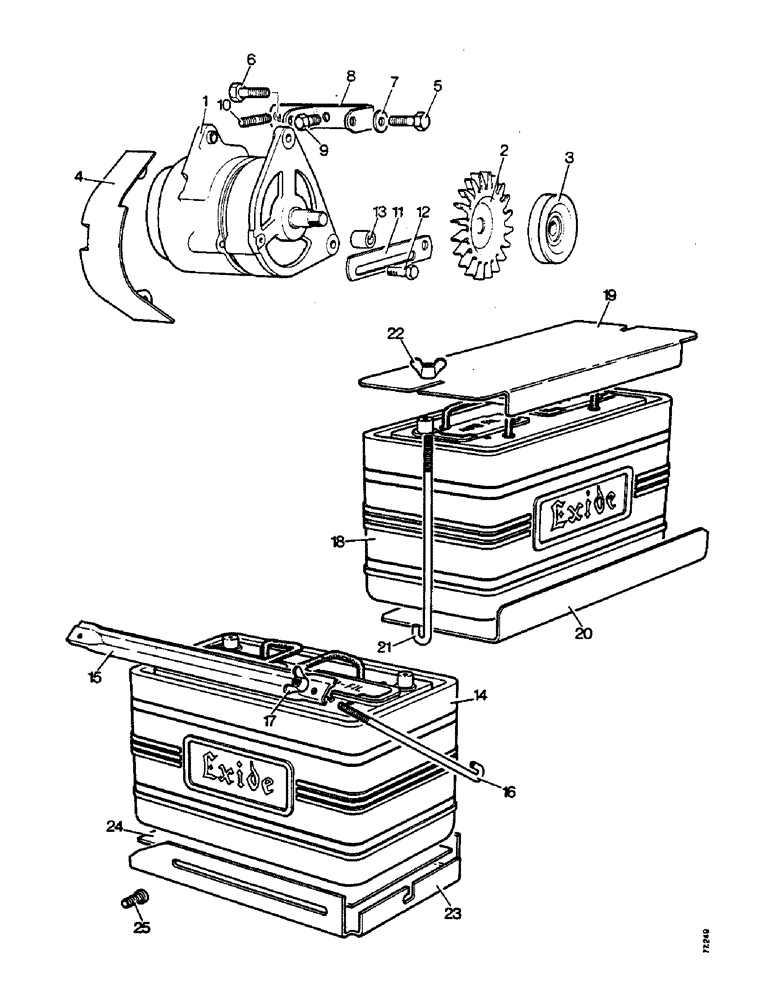

Схема запчастей Case IH 1212 - (M10) - ELECTRICAL EQUIPMENT, ALTERNATOR AND BATTERY, 1210 AND 1212 TRACTORS (06) - ELECTRICAL SYSTEMS
19
2
8
21
12
15
5
7
3
11
20
1
4
10
6
18
9
25
16
24
23
22
17
14
13

Артикул

Название

Примечание

Количество

1

K925009

ALTERNATOR

ALTERNATOR, (Lucas 23623)

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN K925009

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

K956426

ALTERNATOR

Alternator

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

2

K942129

FAN

FAN, alternator

1шт.

3

K952702

PULLEY

PULLEY, alternator, replaces K942045

1шт.

4

K942117

GUARD

GUARD, fan

1шт.

5

K600359

BOLT

BOLT, 5/16 UNC x 1-1/4 in

1шт.

6

K600365

BOLT

BOLT, 5/16 UNC x 1-1/2 in

1шт.

7

K626916

WASHER

WASHER, special 5/16 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16 UNC, alternator to bracket

2шт.

8

K947375

SUPPORT

SUPPORT BRACKET

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Bracket to cylinder block Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

10

K608235

STUD

STUD, 3/8 UNC x 1-1/4 in, bracket to cylinder block

1шт.

K19482

SPRING WASHER

SPRING WASHER, bracket to cylinder block

2шт.

280136

NUT,3/8"-16, G8

NUT, , Bracket to cylinder block 3/8"-16, G8

1шт.

11

K950495

ADJUSTER

ADJUSTER STRAP, replaces K942044

1шт.

12

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in

1шт.

K626916

WASHER

WASHER, 5/16 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

13

K627028

BUSHING

DISTANCE PIECE, adjuster strap

1шт.

14a

K918881

SPARE PART

BATTERY, 12 volt, (Exide 6/TXAZ15R) standard duty (A and after B)

1шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

14b

K929951

SPARE PART

BATTERY, 12 volt, (Exide 6/RHAZ17R) heavy duty (ditto)

1шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

15

K909760

CLAMP

CLAMP, (ditto)

1шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

16a

K916333

STUD

CLAMPING STUD, 1/4 BSF x 9 in, standard battery (ditto)

2шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

16b

K919712

STUD

SPARE PART CLAMPING STUD, 1/4 BSF x 11-3/8 in, heavy duty battery (ditto)

2шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

K19470

WASHER

WASHER, 1/4 in (ditto)

2шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (ditto)

2шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

17

K19435

NUT

WING NUT, 1/4 BSF (ditto)

2шт.

Used on model 1210, from S/N 727072 to S/N 729683

1шт.

Used on model 1212, from S/N 1003291 to S/N 1004811

1шт.

18a

K952486

BATTERY

BATTERY, 12 volt (Exide 6/TXMZ15R) standard duty

1шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

18b

K952487

BATTERY

BATTERY, 12 volt (Exide 6/RHMZ17R) heavy duty

1шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

19

K947080

FRAME

CLAMP FRAME

1шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

20

K948089

BATTERY

SEATING PAD

1шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

21a

K948871

STUD

SPARE PART CLAMPING STUD, 1/4 UNC x 5 in, standard battery

2шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

21b

K947430

STUD

CLAMPING STUD, 1/4 UNC x 7 in, heavy duty battery

2шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

16c

K948872

STUD

CLAMPING STUD, 1/4 UNC x 9 in, twin hydraulic pump

2шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

K19470

WASHER

WASHER, 1/4 in

2шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

22

K607200

NUT

WING NUT, 1/4 UNC

2шт.

Used on model 1210, S/N 729683 and after

1шт.

Used on model 1212, S/N 1004811 and after

1шт.

23

K918883

COVER

TRAY, battery

1шт.

24

K908394

BUSHING

SPARE PART SEATING PAD

1шт.

25

K917661

PIN

STUD, 3/8 UNC, special

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

2шт.

Выбрано товаров: 85
