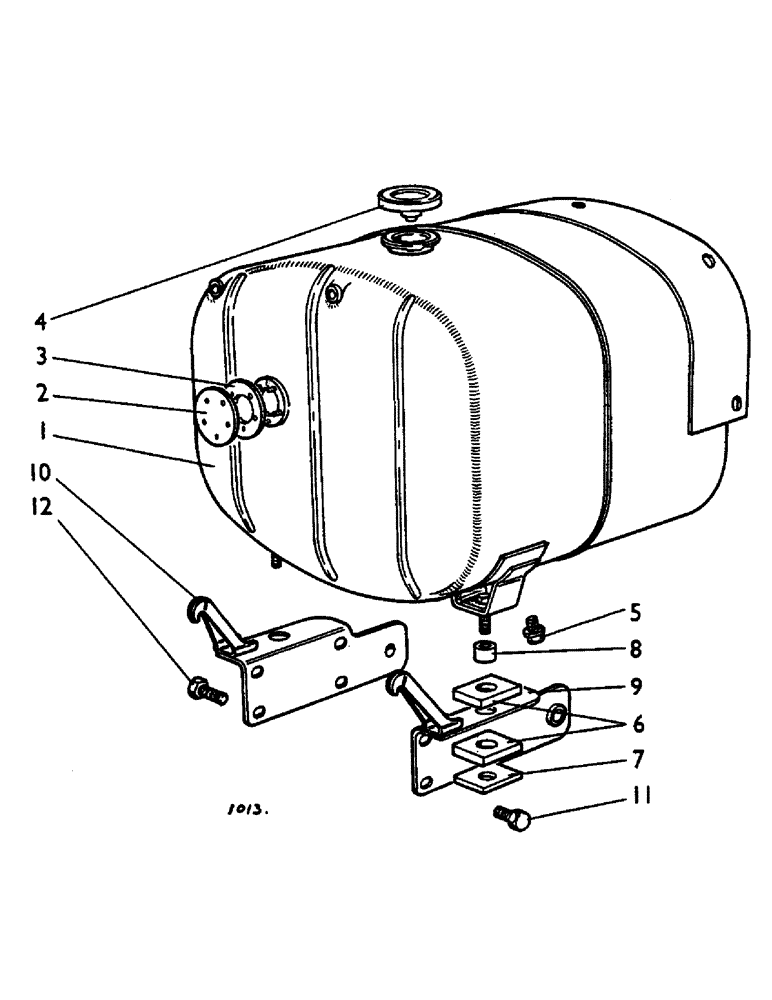

Запчасти Case IH 1212 (A34) - ENGINE, FUEL TANK AND FITTINGS, 1210 AND 1212 TRACTORS (01) - ENGINE

1a

K962922

FUEL TANK

(1212), Includes: Ref. 2 & 3 and stud, nut, and spring washer

1шт.

1b

K962381

TANK

FUEL TANK (1210), Includes: Ref. 2 & 3 and stud, nut, and spring washer

1шт.

2

K962140

PLATE

BLANKING PLATE, fuel gauge aperture

1шт.

3

K916485

GASKET

1шт.

K617980

STUD

No. 10 UNF x 11/16 in.

5шт.

K617080

NUT

No. 10 UNF

5шт.

K626340

RING

SPRING WASHER, 3/16 in.

5шт.

4

K901983

CAP

FILLER CAP

1шт.

5

K19581

PLUG

DRAIN PLUG, 1/4 BSP

1шт.

K19501

WASHER

FIBRE WASHER, 1/2 in.

1шт.

6

K916448

INSULATOR BLOCK

RUBBER WASHER, tank to support brackets

6шт.

7

K916449

WASHER

CLAMPING PLATE, tank to support brackets

3шт.

8

K916450

TUBE

DISTANCE TUBE, tank to support brackets

3шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

3шт.

K600404

BOLT

3/8 UNC x 1-1/2 in.

1шт.

280136

NUT,3/8"-16, G8

2шт.

9

K928257

SUPPORT

BRACKET, left-hand

1шт.

10

K928256

SUPPORT

BRACKET, right-hand

1шт.

11

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3/4 in., Serial Range: brackets-frame

3шт.

12

K602983

SCREW

SETSCREW, 3/8 UNC x 7/8 in., Serial Range: brackets-frame

3шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., Serial Range: brackets-frame

6шт.

K19472

WASHER

3/8 in., Serial Range: brackets-frame

3шт.
