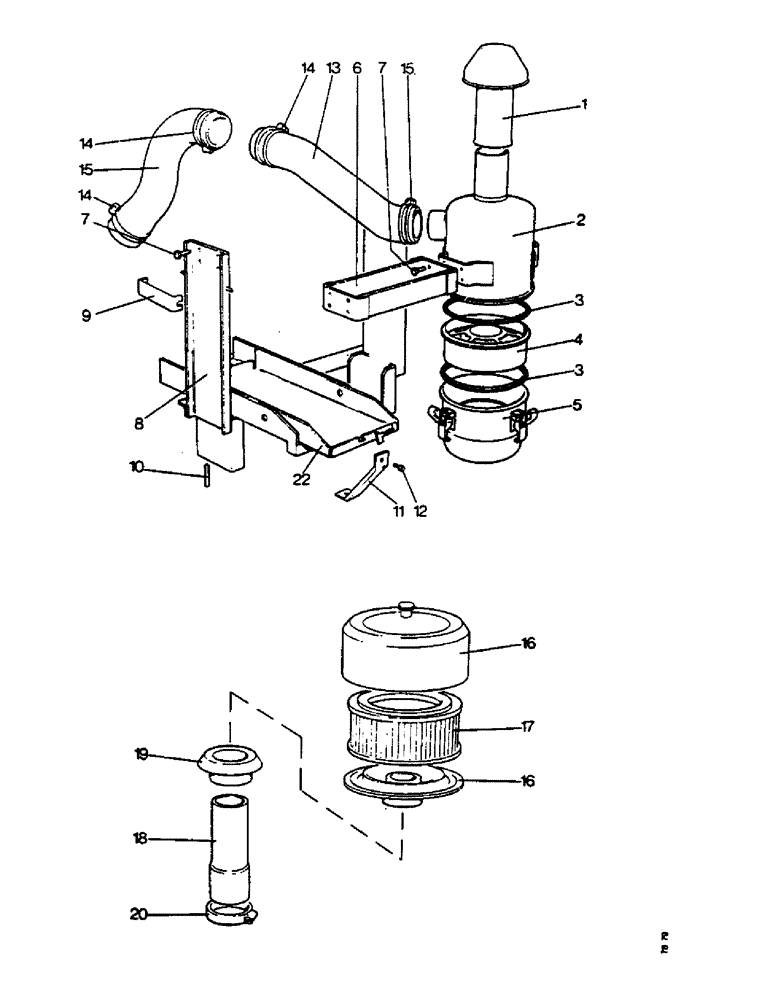

Запчасти Case IH 1212 (A24) - ENGINE, AIR CLEANER, 1210 AND 1212 TRACTORS (01) - ENGINE

1

K918834

CLEANER

PRE-CLEANER

1шт.

2

K918833

CLEANER

AIR CLEANER ASSEMBLY, Includes: Ref. 3 - 5

1шт.

3

K962639

SEALING RING

SEALING RING

2шт.

4

K918842

AIR FILTER

LOWER ELEMENT

1шт.

5

K916318

FILTER BOWL

BOWL, with toggle clips

1шт.

6

K917660

BRACKET

SPACER BRACKET

1шт.

7

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in.

12шт.

K607000

NUT

1/4 UNC

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

12шт.

8

K917658

SUPPORT

BRACKET, air cleaner

2шт.

9

K920878

SUPPORT

SIDE BRACKET

2шт.

K626310

WASHER

3/16 in.

4шт.

K607040

NUT

No. 8 UNC

4шт.

22

K918883

COVER

TRAY, battery

1шт.

10

K608212

STUD

3/8 UNC, support frame to front extension

4шт.

280136

NUT,3/8"-16, G8

Support frame to front extension 3/8"-16, G8

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., support frame to front extension

3шт.

K11522

WASHER

LOCKWASHER, 3/8 in., battery load to earth, support frame to front extension

1шт.

11

K920955

STAY

STRUT, support frame to front extension

1шт.

12

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in., support frame to front extension

1шт.

K19472

WASHER

3/8 in., support frame to front extension

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., support frame to front extension

1шт.

280136

NUT,3/8"-16, G8

Support frame to front extension 3/8"-16, G8

1шт.

13

K921980

LARGE HOSE

PIPE, air, Serial Range: cleaner-radiator

1шт.

14

K622031

CLAMP

HOSE CLIP, 2-3/4 in. dia.

4шт.

15

K921973

RADIATOR HOSE

, Serial Range: Radiator-Manifold

1шт.

16

K924272

PRECLEANER

PRE-CLEANER, paper element type, (Purolator) (U1161) (K918599)

1шт.

17

K922630

AIR FILTER

PAPER ELEMENT (optional equipment)

1шт.

18

K921552

PIPE

INLET PIPE, 7-1/2 in. (optional equipment)

1шт.

19

K919721

PIPE

RUBBER SLEEVE (optional equipment)

1шт.

20

K12755

CLIP

HOSE CLIP, 2-3/8 in. dia. (optional equipment)

1шт.
