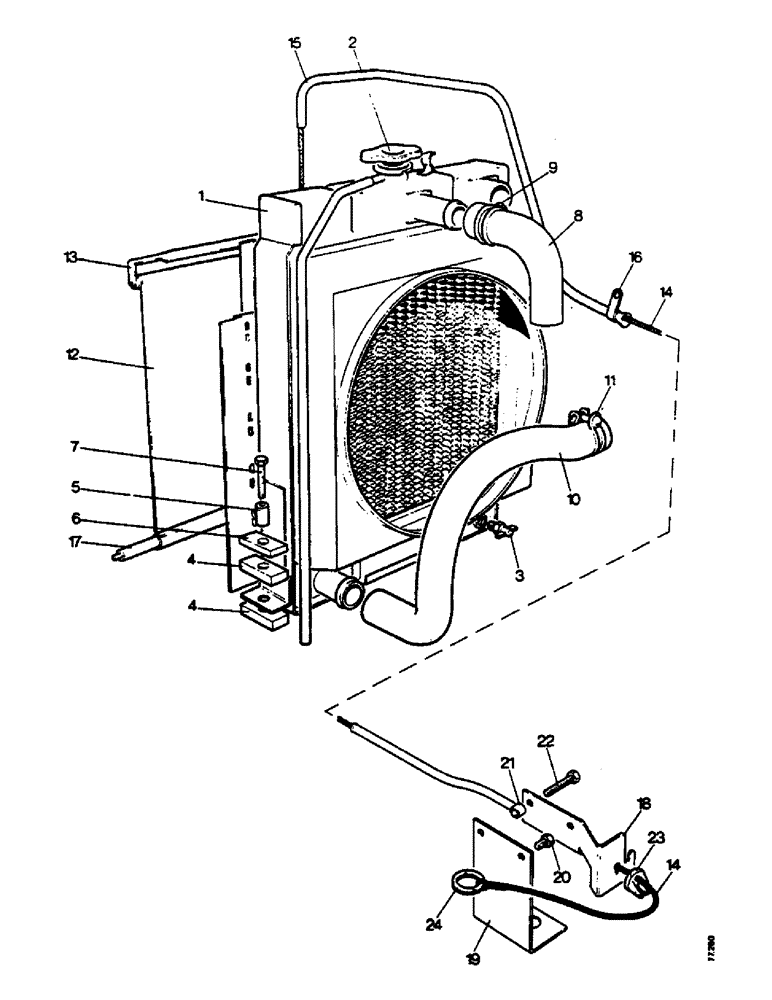

Запчасти Case IH 1212 (A20) - ENGINE, RADIATOR AND BLIND, 1210 AND 1212 TRACTORS (01) - ENGINE

1a

K922080

RADIATOR

2-1/2 in. block, standard

1шт.

1b

K922081

RADIATOR

2-3/4 in. block, tropical

1шт.

2a

K945363

CAP

FILLER CAP, 4lb/in. square for K922080

1шт.

2b

K945362

CAP

FILLER CAP, 7lb/in. square for K922081

1шт.

3

K622060

PLUG, DRAIN

DRAIN TAP, 1/4 BSP

1шт.

K19501

WASHER

FIBRE WASHER

1шт.

4

K921836

WEDGE

FOOT PACKING

4шт.

5

K908823

TUBE,0.562" OD x 0.875" L

DISTANCE PIECE

2шт.

6

K921837

SHIM

CLAMPING PLATE

2шт.

7

K600406

BOLT

3/8 UNC x 1-3/4 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

2шт.

8

K921972

HOSE

radiator inlet

1шт.

9

K622029

CLAMP

HOSE CLIP, 2-1/2 in. dia.

3шт.

10a

K948453

HOSE

radiator outlet

1шт.

10b

K926603

HOSE

radiator outlet

1шт.

Used on model 1210, S/N 729773 and after

1шт.

Used on model 1212, S/N 1004296 and after

1шт.

11

K622029

CLAMP

HOSE CLIP, 2-1/2 in. dia.

1шт.

12

K908846

COVER

RADIATOR BLIND

1шт.

13

K64925

ROD

PULL ROD

1шт.

14

K921979

SPARE PART

CONTROL CORD

1шт.

Not Available.

1шт.

15

K921969

TUBE

1шт.

16

K621616

CLIP

, Serial Range: tube-manifold

1шт.

17

K921971

ROD

ANCHOR, blind

1шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in.

1шт.

18

K919709

GUIDE

REAR GUIDE TUBE

1шт.

19

K928608

BRACKET

SUPPORT BRACKET, guide tube, hydrostatic steering

1шт.

20

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in., hydrostatic steering

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., hydrostatic steering

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, hydrostatic steering

2шт.

21

K919710

BUSHING

DISTANCE PIECE, manual steering

2шт.

22

K602809

SCREW

SETSCREW, 5/16 UNC x 1-1/2 in., manual steering

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., manual steering

2шт.

23

K952633

ROD

ANCHOR, control cord

1шт.

24

K952646

KEY

RING, control cord

1шт.
