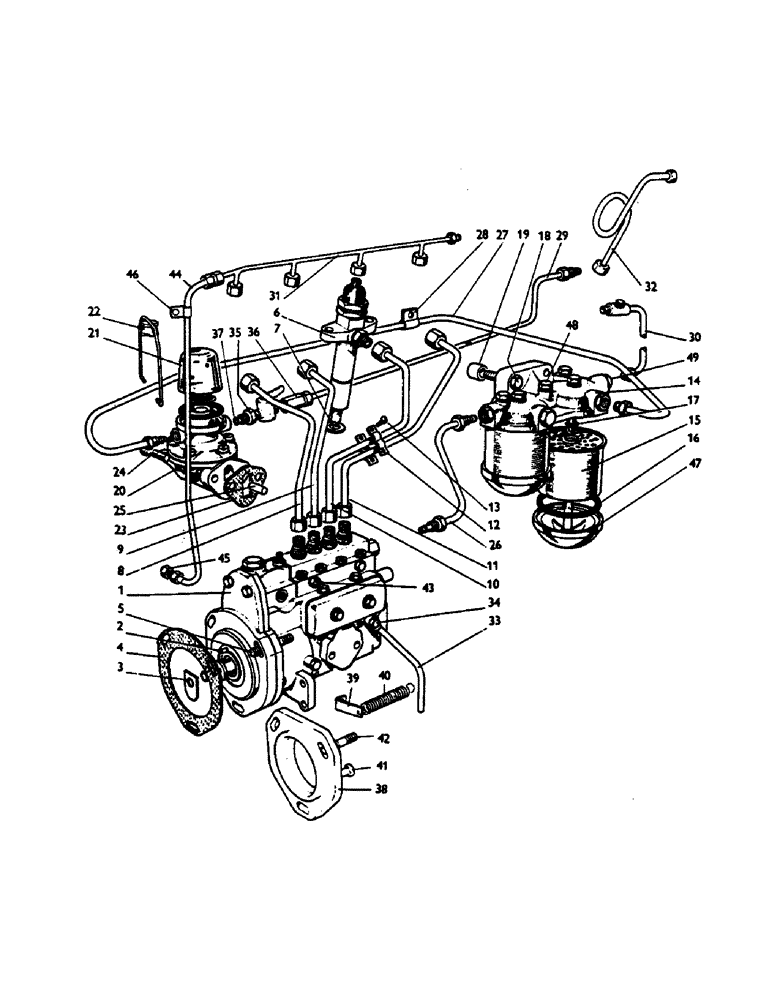

Запчасти Case IH 1212 (A10) - ENGINE, INJECTION PUMP AND FUEL SYSTEM, 1210 AND 1212 TRACTORS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1a
K942174
PUMP
INJECTION PUMP, (Simms P5169 SPGE 4M 90S 250/1150) (1212)
1шт.
1b
K947199
PUMP
INJECTION PUMP, (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
1шт.
38
K946856
ADAPTER
ADAPTOR, injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
1шт.
39
K947354
STRAP
ANCHOR BRACKET, stop control spring (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
1шт.
40
K624926
SPRING
stop control (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
1шт.
41
K600403
BOLT
3/8 UNC x 1-3/8 in., adaptor to injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
4шт.
K19472
WASHER
3/8 in., adaptor to injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
4шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in., adaptor to injection pump (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
4шт.
42
K608219
STUD
3/8 UNC x 1-1/4 in., adaptor to carrier plate (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
3шт.
280136
NUT,3/8"-16, G8
Adaptor to carrier plate (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump) 3/8"-16, G8
3шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in., adaptor to carrier plate (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
3шт.
43
K947076
FITTING
UNION, 14 mm x 1/2 UNF (Bosch PES4A 85D 21ORS 1286 EP/RSV 300-1150 A2B708L) (1210 Bosch pump)
1шт.
K626891
WASHER
SEALING WASHER
1шт.
1c
K922691
SPARE PART
INJECTION PUMP, (Simms P5009/2 SPGE 4M 80S 250/1150) (1210)
1шт.
2
K11262
KEY
Woodruff No. 505, pump gear
1шт.
3
K626429
WASHER
TABWASHER, pump gear
1шт.
K947197
NUT
LOCKNUT, 14mm, pump gear (Bosch pump)
1шт.
425-158
JAM NUT,Jam, 1/2"-20, G5
LOCKNUT, 1/2 UNF, Pump gear (Simms pump)
1шт.
4a
K946857
GASKET
pump to carrier plate (Bosch pump)
1шт.
4b
K912485
GASKET
pump to carrier plate (Simms pump)
1шт.
5
K608137
STUD
5/16 UNC x 1-7/8 in., pump to carrier plate
3шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC, pump to carrier plate
3шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in., pump to carrier plate
3шт.
K19471
WASHER
5/16 in., pump to carrier plate
3шт.
6
K942175
NOZZLE CAP
INJECTOR, Includes: Ref. 7
4шт.
K904261
NOZZLE CAP
HOLDER, (CAV BKBL 97S 5152)
1шт.
K942176
NOZZLE CAP
NOZZLE, (CAV BDLL 140S 6592)
1шт.
7
K901092
WASHER
COPPER WASHER
1шт.
8
K947123
PIPE
FUEL PIPE, injection pump to No. 1 cylinder (Bosch pump)
1шт.
9
K947124
PIPE
FUEL PIPE, injection pump to No. 2 cylinder (Bosch pump)
1шт.
10
K947125
PIPE
FUEL PIPE, injection pump to No. 3 cylinder (Bosch pump)
1шт.
11
K947126
PIPE
FUEL PIPE, injection pump to No. 4 cylinder (Bosch pump)
1шт.
8a
K914624
PIPE
FUEL PIPE, injection pump to No. 1 cylinder (Simms pump)
1шт.
9a
K914626
PIPE
FUEL PIPE, injection pump to No. 2 cylinder (Simms pump)
1шт.
10a
K914628
PIPE
FUEL PIPE, injection pump to No. 3 cylinder (Simms pump)
1шт.
11a
K914630
PIPE
FUEL PIPE, injection pump to No. 4 cylinder (Simms pump)
1шт.
K900845
NUT
UNION NUT, injector pipes
8шт.
K947203
FERRULE
OLIVE, 0.218 in., injector pipes (to suit pipe diameter)
8шт.
K900846
FERRULE
OLIVE, 0.228 in., injector pipes (to suit pipe diameter)
8шт.
12
K14673
CLIP
injector pipes
4шт.
13
K12217
SCREW,0.185" x 5/8"
2BA x 5/8 in., injector pipes
4шт.
K11109
NUT
2 BA, injector pipes
4шт.
K19488
SPRING WASHER
SPRING WASHER, 3/16 in., injector pipes
4шт.
14
K906708
FILTER
FUEL FILTER, complete (Purolator APF62900), Includes: Ref. 15 - 48 and aluminum washer
1шт.
K962263
COVER
FILTER HEAD
1шт.
15
K960911
FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP
ELEMENT
2шт.
16
K960936
RING
SEALING WASHER, (supplied with element)
4шт.
50
K600360
BOLT
5/16 UNC x 4-3/4 in., Serial Range: body-base
2шт.
K963409
RING
SEAL, 5/16 in., Serial Range: body-base
2шт.
17
K960937
O-RING
'O' RING, 1/2 in. internal dia.
2шт.
47
K962264
COVER
BASE
2шт.
48
K962348
SCREW
VENT PLUG, 5/16 BSF
1шт.
K14734
WASHER
ALUMINUM WASHER, replaces K626856
1шт.
49
K619541
PLUG
1/2 UNF, fuel filter
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
K15735
WASHER
SEALING WASHER, 1/2 in., fuel filter
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
18
K600406
BOLT
3/8 UNC x 1-3/4 in., filter to cylinder head
2шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in., filter to cylinder head
2шт.
19
K627042
BUSHING
DISTANCE PIECE, filter to cylinder head
2шт.
20a
K944997
PUMP
FUEL FEED PUMP, (AC-Delco E/FP63154/B), Includes: Ref. 21 - 22 and diaphragm
1шт.
Used on model 1210, S/N 725855 and after
1шт.
Used on model 1212, S/N 1002822 and after
1шт.
20b
K909944
PUMP
FUEL FEED PUMP, (AC-Delco E/FP63154/A) (K944997 will be supplied in lieu), Includes: Ref. 21 - 22 and diaphragm
1шт.
Used on model 1210, up to S/N 725855
1шт.
Used on model 1212, up to S/N 1002822
1шт.
K961675
FILTER SCREEN
FILTER GAUZE
1шт.
21
K66442
FILTER BOWL
1шт.
K961674
SEAL
GASKET
1шт.
22
K961676
BAIL
STIRRUP AND SCREW
1шт.
K911917
DIAPHRAGM
1шт.
Bosch Fuel Pumps see P B 14-79
1шт.
K956796. K956797, K964855.
1шт.
Bleed Off Screw for this Fuel System is part number K962348.
1шт.
23
K902136
GASKET
feed pump to cylinder block
1шт.
24
K602807
SCREW
SETSCREW, 5/16 UNC x 1-1/4 in., feed pump to cylinder block
2шт.
K14988
WASHER
COPPER-ASBESTOS WASHER, 5/16 in., feed pump to cylinder block
2шт.
K19471
WASHER
5/16 in., feed pump to cylinder block
2шт.
25
K911928
PUSH ROD,9.51mm OD x 35.99mm L
PUSH ROD, feed pump
1шт.
26
K947127
PIPE
FUEL PIPE, filter to injection pump (Bosch pump)
1шт.
26a
K912488
PIPE
FUEL PIPE, filter to injection pump (Simms pump)
1шт.
27a
K944999
FUEL TUBE,0.25" OD x 14.531, 6.562" L
FUEL PIPE, feed pump to filter, use with K944997
1шт.
Used on model 1210, S/N 725855 and after
1шт.
Used on model 1212, S/N 1002822 and after
1шт.
27b
K909952
PIPE
FUEL PIPE, feed pump to filter, use with K909944
1шт.
Used on model 1210, up to S/N 725855
1шт.
Used on model 1212, up to S/N 1002822
1шт.
28
K621603
CLIP
fuel pipe to manifold stud
1шт.
29a
K944998
PIPE
FUEL PIPE, tank to feed pump
1шт.
Used on model 1210, S/N 725855 and after
1шт.
Used on model 1212, S/N 1002822 and after
1шт.
29b
K917153
PIPE
FUEL PIPE, tank to feed pump
1шт.
Used on model 1210, up to S/N 725855
1шт.
Used on model 1212, up to S/N 1002822
1шт.
30
K907037
FITTING
FUEL PIPE, Serial Range: leak-off-filters
1шт.
Used on model 1210, up to S/N E25389
1шт.
Used on model 1210 (Bosch), up to S/N E24079
1шт.
Used on model 1212, up to S/N E18025
1шт.
31a
K947870
PIPE
LEAK-OFF PIPE, injectors
1шт.
31a is shown in the book.
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
44a
K947871
PIPE
FUEL PIPE, pump leak-off to injector leak-off (Simms)
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
45a
K626068
FITTING
UNION, 1/8 BSP x 8mm x 1mm, fuel pump (Simms)
1шт.
K15734
WASHER
5/16 in. (Simms)
1шт.
46a
K621707
CLIP
PIPE CLIP, manifold (Simms)
1шт.
44b
K947868
PIPE
FUEL PIPE, pump leak-off to injector leak-off (Bosch)
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
45b
K947869
FITTING
UNION, 14mm x 1/8 BSP (Bosch)
1шт.
K626891
WASHER
(Bosch)
1шт.
46b
K621610
CLIP
PIPE CLIP, manifold (Bosch)
1шт.
31b
K915815
PIPE
LEAK-OFF PIPE, injectors
1шт.
Used on model 1210, up to S/N E25389
1шт.
Used on model 1210 (Bosch), up to S/N E24079
1шт.
Used on model 1212, up to S/N E18025
1шт.
32a
K947872
PIPE
FUEL PIPE, Serial Range: leak-off-tank
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
K618901
ADAPTER
ADAPTOR, 3/8 UNF, use with K947872
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
K19504
WASHER,9.92mm ID x 14.29mm OD x 2mm Thk
FIBRE WASHER, 3/8 in.
1шт.
Used on model 1210, S/N E25389 and after
1шт.
Used on model 1210 (Bosch), S/N E24079 and after
1шт.
Used on model 1212, S/N E18025 and after
1шт.
32b
K923667
PIPE
FUEL PIPE, Serial Range: leak-off-tank
1шт.
Used on model 1210, up to S/N E25389
1шт.
Used on model 1210 (Bosch), up to S/N E24079
1шт.
Used on model 1212, up to S/N E18025
1шт.
33a
K948061
PIPE
LEAK-OFF PIPE, pump, plastic (Bosch, Steel pipe and fittings no longer supplied)
1шт.
Used on model 1210 (Bosch), S/N E23274 and after
1шт.
34a
K948114
BOLT
BANJO BOLT, 10mm (Bosch, Steel pipe and fittings no longer supplied)
1шт.
Used on model 1210 (Bosch), S/N E23274 and after
1шт.
K621687
CLIP
(Steel pipe and fittings no longer supplied)
1шт.
K948115
WASHER
(Steel pipe and fittings no longer supplied)
2шт.
33b
K915350
PIPE
LEAK-OFF PIPE, pump, steel (Simms)
1шт.
34b
K921095
BANJO BOLT
BANJO BOLT, 5/16 UNF (Simms)
1шт.
K36374
WASHER
SEALING WASHER, 5/16 in.
2шт.
35
K622061
VALVE
FUEL TAP (optional equipment)
1шт.
36
K626076
FITTING
UNION, 1/2 UNF, replaces K626024 (optional equipment)
1шт.
K626950
WASHER
FIBRE WASHER, 1/2 in. (optional equipment)
1шт.
37
K14573
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
'O' RING, 5/16 internal dia. (optional equipment)
1шт.
K951062
EXTENSION
fuel tap
1шт.
Выбрано товаров: 155
