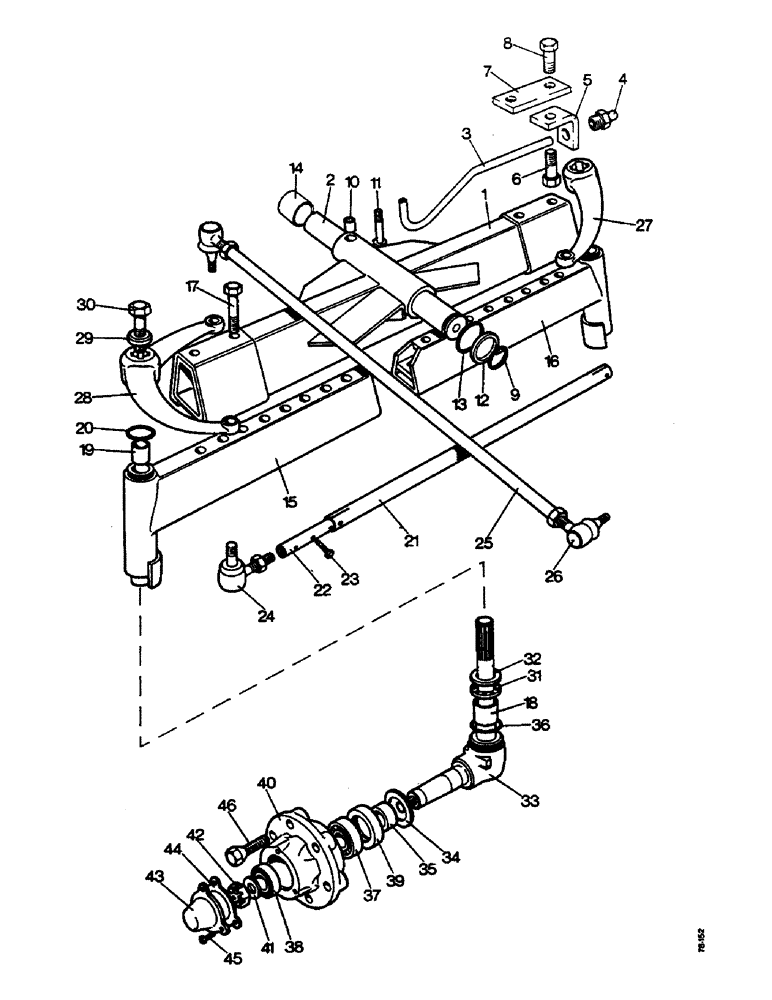

Запчасти Case IH 1212 (H14) - STEERING AND FRONT AXLE, FRONT AXLE, 1210 AND 1212 TRACTORS Steering & Front Axle

1a

K926280

BEAM

CENTRE BEAM, 56 to 80 in track (1210, 1212)

1шт.

1b

K918861

BEAM

CENTRE BEAM, 52 to 72 in track (1210 standard)

1шт.

1c

K918861

BEAM

CENTRE BEAM, 56 to 80 in track (1210 high clearance)

1шт.

2a

K947516

TRUNNION

PIN

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

2b

K913091

PIN

TRUNNION PIN, 15 1/4" long, 1 1/2" dia.

1шт.

Used on model 1210, up to S/N 730832

1шт.

Used on model 1212, up to S/N 1004792

1шт.

3

K948808

TUBE

trunnion greaser

1шт.

4

K622255

FITTING

GREASE FITTING

1шт.

5

K948809

BRACKET

1шт.

6

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

7

K952592

PLATE

bracket

1шт.

8

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in, front extension to bracket

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, front, Serial Range: extension-bracket

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, front extension to bracket

1шт.

9

K15596

RING,3.63mm Thk x 31.34mm ID

'O' RING, 1-1/4 in internal dia., trunnion pin

1шт.

10

K913092

NUT

SCREWED BUSH

1шт.

11

K600505

BOLT

3/8 UNC x 2-3/4 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

12

K915421

WASHER

THRUST WASHER

2шт.

13

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

'O' RING, 2-1/8 in internal dia.

2шт.

14

K15597

BUSHING

BUSH, main frame

4шт.

15a

K962815

BEAM

EXTENSION, left-hand, 56 to 80 in track (1212)

1шт.

15b

K962006

SHAFT

BEAM EXTENSION, left-hand, 52 to 72 in track (1210, standard)

1шт.

15c

K962972

AXLE

BEAM EXTENSION, left-hand, 56 to 80 in track (1210 high clearance)

1шт.

16a

K962816

BEAM

EXTENSION, right-hand, 56 to 80 in track (1212)

1шт.

16b

K962007

EXTENSION

BEAM EXTENSION, right-hand, 52 to 72 in track (1210 standard)

1шт.

16c

K962973

SHAFT

BEAM EXTENSION, right-hand, 56 to 80 in track (1210 high clearance)

1шт.

17

K601661

BOLT

7/8 UNC x 3-3/4 in, special

4шт.

K626350

SPRING

WASHER, 7/8 in

4шт.

18

K621367

BUSHING

BUSH, lower

2шт.

19

K621331

BUSHING

upper

2шт.

20

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

'O' RING, 2-1/2 in internal dia.

2шт.

21a

K926288

TUBE

SPACER TUBE, 35-3/4 in, 56 to 80 in track (1212)

1шт.

21b

K918955

BUSHING

SPACER TUBE, 31-3/4 in, 52 to 76 in track (1210 standard)

1шт.

21c

K926288

TUBE

SPACER TUBE, 35-3/4 in, 56 to 80 in track (1210 high clearance)

1шт.

22

K906210

ROD

TRACK ROD

2шт.

23

K600316

BOLT

5/16 UNC x 2-1/4 in

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

24

K908071

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

K961701

BOOT

DIRT EXCLUDER, (rubber)

4шт.

K622500

LOCK NUT

LOCKNUT, 3/4 in, special

4шт.

231-2448

LOCK NUT,1/2"-20, GB

NYLOC NUT, 1/2 UNF

4шт.

K923470

LINK ASSY.

DRAG LINK, complete, manual steering (1210)

1шт.

25

K923469

LINK

DRAG LINK TUBE

1шт.

26

K915962

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

K962155

CAP

DIRT EXCLUDER

1шт.

K617316

NUT

NYLOC NUT, 5/8 UNF

1шт.

K622500

LOCK NUT

LOCKNUT, 3/4 in, special

1шт.

27

K918933

LEVER

STEERING LEVER, right-hand

1шт.

28

K918932

LEVER

STEERING LEVER, left-hand

1шт.

29

K15595

WASHER

5/8 in, special

2шт.

30

K601213

BOLT

5/8 UNC x 3-1/4 in, replaces K601212

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in

2шт.

31

K620180

THRUST BEARING

2шт.

32

K626692

DISC

THRUST WASHER

4шт.

33

K962019

STEERING KNUCKLE

STUB AXLE ASSEMBLY (standard clearance), Includes: Ref. 34 & 35

2шт.

K962974

SHAFT

STUB AXLE ASSEMBLY (high clearance), Includes: Ref. 34 & 35

2шт.

34

K910429

SPACER

DIRT EXCLUDER

2шт.

35

K910428

RING RACE

SLEEVE, oil seal

2шт.

36

K24764

O-RING

'O' RING, 2-5/8 in internal dia.

2шт.

K962986

SEAL

BEARING AND SEAL PACK, Includes: Ref. 37 - 39

2шт.

37

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING, inner

2шт.

38

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

outer

2шт.

39

K262882

SEAL

OIL SEAL, 2-3/4 x 3-3/4 x 1/2 in

2шт.

40

K916377

HUB

FRONT HUB

2шт.

41

K626673

WASHER

3/4 in, special

2шт.

42

K617157

NUT

SLOTTED NUT, 3/4 UNF

2шт.

K623603

PIN

SPLIT PIN, 11/64 x 1-1/8 in, part of K962986

2шт.

43

K908913

CAP

HUB CAP

2шт.

44

K15344

GASKET,0.25mm Thk

part of K962986

2шт.

45

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

4шт.

46

K600875

BOLT

WHEEL BOLT, 1/2 UNC x 1-7/8 in

12шт.

K628089

PLUG

PLASIC PLUG, beam extension holes

10шт.
