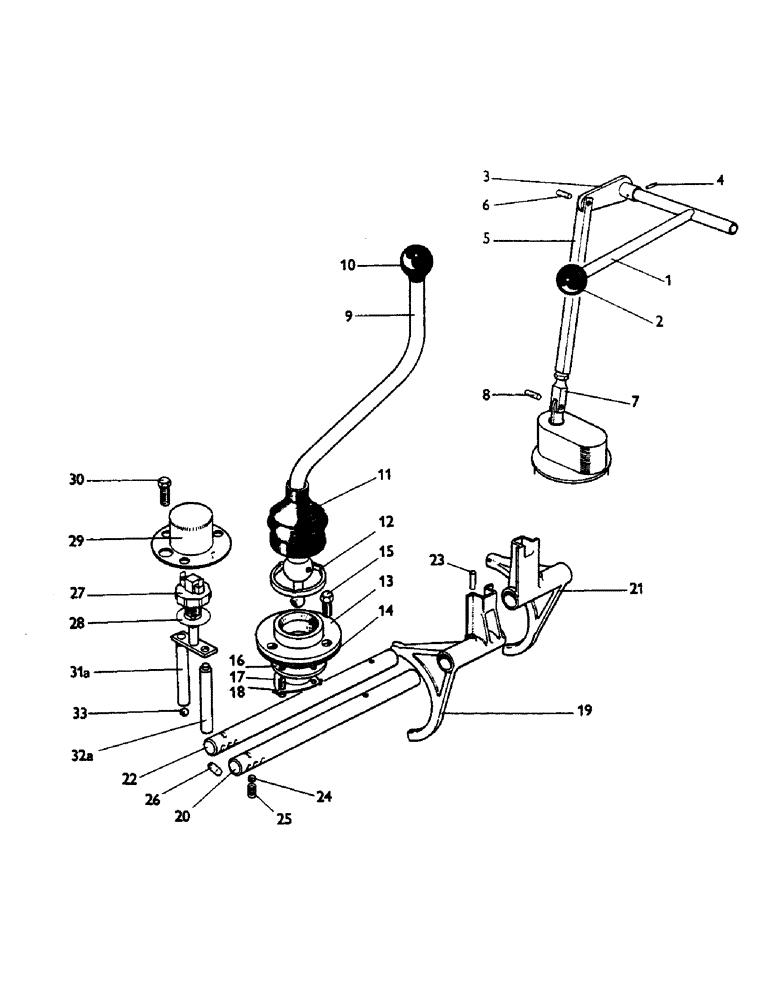

Запчасти Case IH 1212 (C30) - GEARBOX, SELECTOR MECHANISM, 1212 TRACTORS Gearbox
№
Артикул
Название
Примечание
Количество
1
K929743
GEAR
HYDRA-SHIFT LEVER
1шт.
2
K929750
KNOB
1шт.
3
K929747
LEVER
48mm
1шт.
4
K623722
PIN
MILLS PIN, 5/32 x 1 in.
1шт.
5
K929755
ROD
CONNECTING ROD
1шт.
6
K623884
SPRING
PIN, 3/16 x 5/8 in.
1шт.
7
K919274
FORK
END, 5/16 UNF
1шт.
K617051
NUT
5/16 UNF
1шт.
8
K919275
PIN
CLEVIS PIN
1шт.
K19520
PIN
SPLIT PIN, 1/16 x 3/8 in.
2шт.
9
K942796
SELECTOR
RANGE LEVER
1шт.
10
K943366
KNOB
1шт.
11
K929631
BOOT
DIRT EXCLUDER
1шт.
12
K621957
HOSE
CLIP, replaces K621990
1шт.
13
K929630
HOUSING
BALL HOUSING
1шт.
14
K901835
GASKET
housing to gearbox cover
1шт.
15
K602705
SCREW
SETSCREW, 1/4 UNC x 1 in., housing to gearbox cover
3шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in., housing to gearbox cover
3шт.
16
K903074
SUPPORT
PLATE
1шт.
17
K690456
SCREW
SETSCREW, 3/16 whitworth x 3/8 in., Serial Range: plate-housing
3шт.
18
K904386
WASHER
TABWASHER, Serial Range: plate-housing
1шт.
19
K917217
SELECTOR
FORK, 1st and 3rd range
1шт.
20
K917216
SELECTOR
ROD, 1st and 3rd range
1шт.
21
K917219
SELECTOR
FORK, 2nd and reverse range
1шт.
22
K917218
SELECTOR
ROD, 2nd and reverse range
1шт.
23
K623748
PIN
MILLS PIN, 3/16 x 1-1/8 in.
2шт.
24
K13506
BALL
STEEL BALL, 3/8 in.
2шт.
25
K13507
SPRING
2шт.
26
K30430
LOCKING DEVICE
LOCKING PLUNGER
1шт.
27
K940288
SWITCH
SAFETY SWITCH, starter
1шт.
K626858
SHIM,.005" Thk
Cover .005" Thk
1шт.
K626894
SHIM,.010" Thk
Cover .010" Thk
1шт.
29
K940284
COVER
safety switch
1шт.
30
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SETSCREW, 1/4 UNC x 1/2 in.
3шт.
K626341
SPRING WASHER
SPRING WASHER, 1/4 in.
3шт.
31a
K945204
PLUNGER
AND PLATE
1шт.
Used on model 1212, S/N 1001330 and after
1шт.
32a
K945208
PLUNGER
1шт.
Used on model 1212, S/N 1001330 and after
1шт.
31b
K929149
PLUNGER
AND PLATE
1шт.
Used on model 1212, up to S/N 1001330
1шт.
32b
K929150
PLUNGER
1шт.
Used on model 1212, up to S/N 1001330
1шт.
33
K13506
BALL
STEEL BALL, 3/8 in.
2шт.
Выбрано товаров: 44
