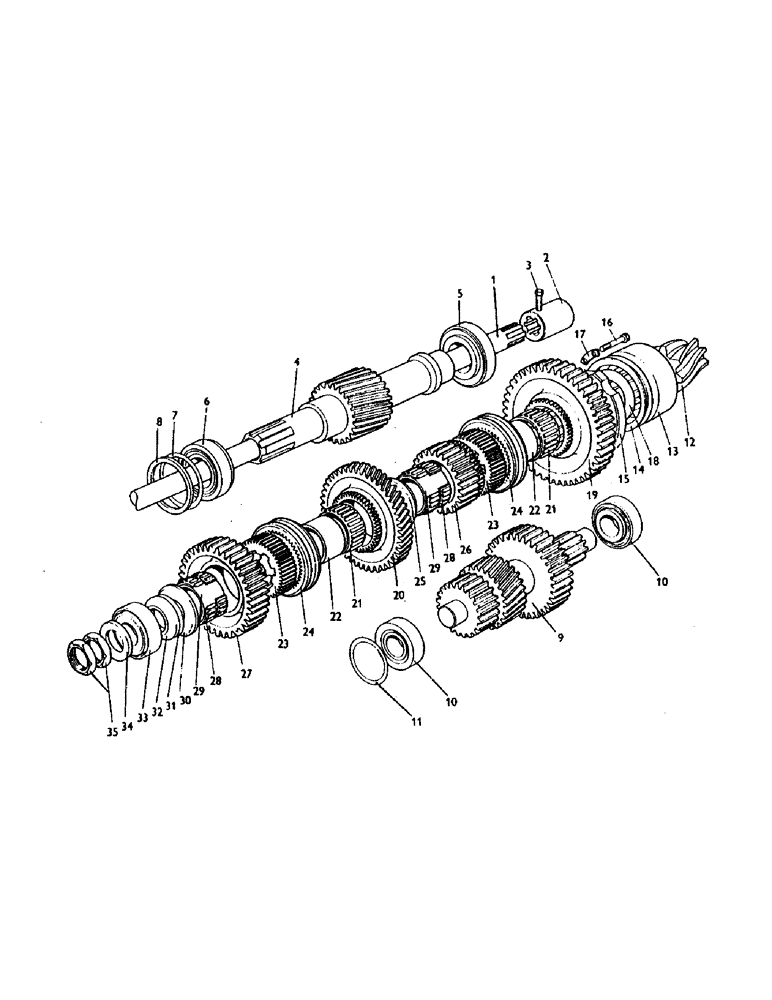

Запчасти Case IH 1212 (C28) - GEARBOX, SHAFTS AND GEARS - RANGE GEARBOX, 1212 TRACTORS Gearbox

1

K915583

PTO

LIVE PTO CARDAN SHAFT

1шт.

2

K89181

COUPLING, BREAK AWAY

COUPLING SLEEVE

1шт.

3

K600009

BOLT

1/4 UNC x 1-7/8 in.

1шт.

K607440

NUT

CLEVELOC NUT, 1/4 UNC

1шт.

4

K928489

DRIVE SHAFT

DRIVESHAFT

1шт.

5

K620117

ROLLER

TAPERED ROLLER BEARING

1шт.

6

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

1шт.

7

K626254

SHIM,.002" Thk

1шт.

K626255

SHIM,.005" Thk

1шт.

K626256

SHIM,.015" Thk

1шт.

K626257

SHIM,.030" Thk

1шт.

8

K940603

BUSHING

DISTANCE PIECE

1шт.

9

K928317

SHAFT

LAYSHAFT, with integral gears

1шт.

10

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

TAPERED ROLLER BEARING

2шт.

11

K928485

SHIM

0.002 in.

1шт.

K928486

SHIM

0.005 in.

1шт.

K928487

SHIM

0.015 in.

1шт.

K928488

SHIM

0.030 in.

1шт.

12

K962894

GEAR-SET

BEVEL PINION AND SPIRAL GEAR, (7/43 teeth)

1шт.

13

K620062

BEARING, ROLLER

TAPERED ROLLER BEARING

1шт.

14

K910457

SHIM,.002" Thk

1шт.

K910456

SHIM,.005" Thk

1шт.

K910455

SHIM

0.015 in.

1шт.

K910454

SHIM,.030" Thk

1шт.

15

K917472

SUPPORT

PLATE, bearing

1шт.

16

K600405

BOLT

3/8 UNC x 1-5/8 in.

6шт.

17

K626387

WASHER

TABWASHER

3шт.

18

K928637

COLLAR

1шт.

19

K916877

GEAR

(46 teeth), first range

1шт.

20

K928319

GEAR

(43 teeth), reverse range

1шт.

21

K620081

NEEDLE BEARING

NEEDLE ROLLER BEARING

2шт.

22

K917103

BUSHING

BEARING BUSH, short

2шт.

23

K928636

GEAR

FIXED DOG CLUTCH

2шт.

24

K917109

GEAR

SLIDING DOG CLUTCH

2шт.

25

K928637

COLLAR

1шт.

26

K916879

GEAR

(24 teeth), third range

1шт.

27

K928634

GEAR

(36 teeth), second range

1шт.

28

K620080

NEEDLE BEARING

NEEDLE ROLLER BEARING

4шт.

29

K917104

BUSHING

BEARING BUSH, long

2шт.

30

K917106

COLLAR

1шт.

31

K943058

SHIM

0.002 in.

1шт.

K943059

SHIM

0.005 in.

1шт.

K943060

SHIM

0.010 in.

1шт.

K943061

SHIM

0.030 in.

1шт.

32

K928641

BUSHING

SPACER

1шт.

33

K620061

BEARING, ROLLER

TAPERED ROLLER BEARING

1шт.

34

K14687

WASHER

1-1/8 in.

1шт.

35a

K623317

LOCK NUT

1-1/8 BSF, left-hand

2шт.

Used on model 1212, up to S/N 1003729

1шт.

35b

K623317

LOCK NUT

1-1/8 BSF, left-hand

1шт.

Used on model 1212, S/N 1003729 and after

1шт.

35c

K622805

LOCK NUT

LOCKNUT, 1-1/8 BSF, left-hand

1шт.

Used on model 1212, S/N 1003729 and after

1шт.

K623885

PIN

TENSION PIN, 3/16 x 1-1/2 in.

1шт.

Used on model 1212, S/N 1003729 and after

1шт.
