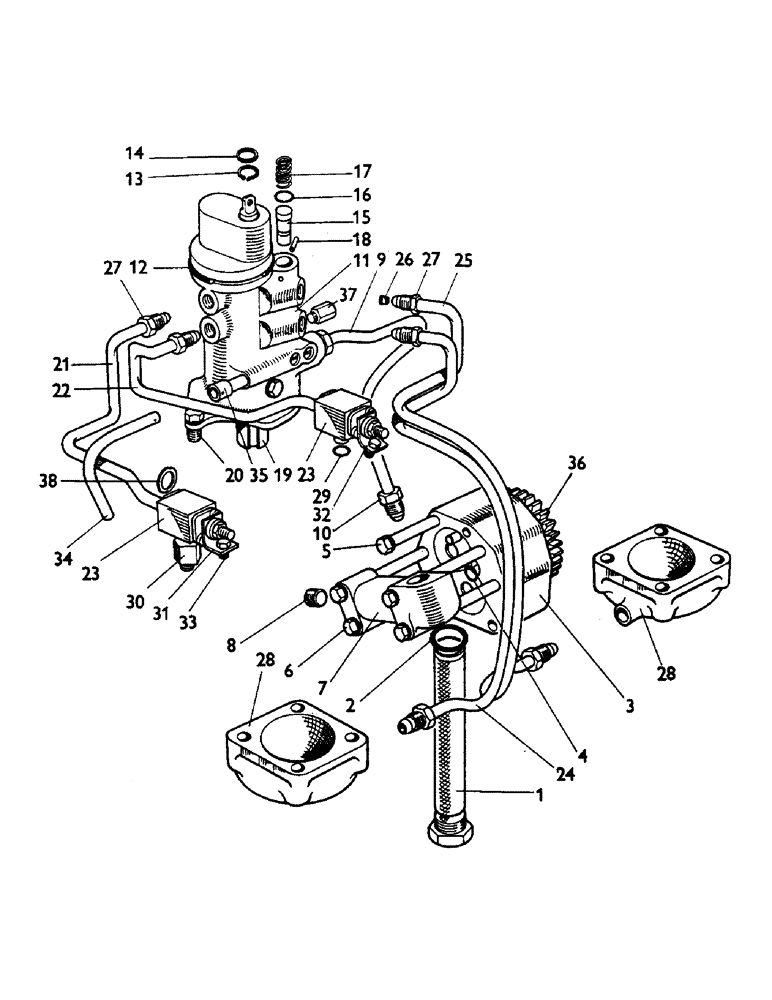

Запчасти Case IH 1212 (C26) - GEARBOX, CONTROL VALVES AND PIPES, 1212 TRACTORS Gearbox

1

K942039

FILTER

pump inlet

1шт.

2

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

'O' RING, 3/4 in. internal dia., filter

1шт.

K11120

SEALING WASHER

SEALING WASHER, 1 in.

1шт.

3

K963524

PUMP

ASSEMBLY, complete

1шт.

36

K928670

GEAR

pump (23 teeth)

1шт.

K19604

KEY

Woodruff No. 405

1шт.

K617303

LOCK NUT

NYLOC NUT, 7/16 UNF

1шт.

K962993

SEALING RING

'O' RING PACK, pump

1шт.

K962992

ROTOR

AND BEARING PACK, pump

1шт.

4

K623714

O-RING,0.612" ID x 0.818" OD x 0.103"

'O' RING, 5/8 in. internal dia., pump to gearbox

3шт.

5

K600218

BOLT

5/16 UNC x 3-1/4 in., Serial Range: pump-gearbox

2шт.

6

K600223

BOLT

5/16 UNC x 4-1/2 in., Serial Range: pump-gearbox

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., Serial Range: pump-gearbox

6шт.

7

K923653

CONNECTOR, ELEC

CONNECTOR, pump outlet

1шт.

8

K619539

PLUG

3/4 UNF x 5/16 in.

1шт.

9

K923660

PIPE

, Serial Range: connector-valve

1шт.

K11904

FERRULE

OLIVE, 1/2 in.

2шт.

10

K617953

TUBE NUT

TUBING NUT, 3/4 UNF (replaces K617053)

2шт.

11

K923150

NO LONGER SERVICED

CONTROL VALVE ASSEMBLY, complete, Includes: Ref. 12 - 18

1шт.

12

K86503

O-RING,0.21" Thk x 2.35" ID, -332, Cl 5, 75 Duro

'O' RING, 2-5/16 in. internal dia., valve body

1шт.

13

K621761

RING, SNAP

CIRCLIP, 7/8 in. internal

1шт.

14

K623443

OIL SEAL

OIL SEAL, 1/2 x 7/8 x 3/16 in.

2шт.

15

K918743

PISTON

relief valve

1шт.

16

K625400

O-RING,0.07" Thk x 0.239" ID

'O' RING, 1/4 in. internal dia., relief valve

1шт.

K626743

SHIM

0.020 in., relief valve

1шт.

K19470

WASHER

1/4 in., relief valve

1шт.

18

K15439

PIN

MILLS PIN, 3/16 x 1-1/8 in., relief valve

1шт.

37

K623847

PLUG

special 1/8 BSP

1шт.

K626788

WASHER

3/8 in.

1шт.

19

K918741

SPOOL

STOP, spool

1шт.

20

K602903

SCREW

SETSCREW, 3/8 UNC x 7/8 in., Serial Range: valve-gearbox

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., Serial Range: valve-gearbox

2шт.

21

K929696

CONNECTOR, ELEC

PIPE, front sequence valve

1шт.

22

K929697

CONNECTOR, ELEC

PIPE, rear sequence valve

1шт.

23

K963539

VALVE

SEQUENCE VALVE ASSEMBLY, less pipe

2шт.

38

K626460

SEALING WASHER

JOINT, sequence valve

2шт.

24

K929855

PIPE

front brake band cylinder

1шт.

25

K929856

PIPE

rear brake band cylinder

1шт.

26

K943460

PLUG

RESTRICTOR PLUG, brake pipes

2шт.

K622401

RING

OLIVE, 5/16 in.

6шт.

27

K617951

TUBE NUT

TUBING NUT, 1/2 UNF

6шт.

28

K963538

BRAKE

CYLINDER AND PISTON, brake bands

2шт.

29

K24554

O-RING

'O' RING, 3/8 in. internal dia., sequence valves

2шт.

30

K929690

ADAPTER

ADAPTOR, 7/16 UNF, front sequence valve

1шт.

Ref #30 - See PB 8-78.

1шт.

K626522

SEALING WASHER

SEALING WASHER, 7/16 in.

1шт.

31

K940535

PLATE

RETAINING PLATE, front sequence valve

1шт.

32

K940534

PLATE

RETAINING PLATE, rear sequence valve

1шт.

33

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW, 1/4 UNC x 3/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

34

K928687

PIPE

front unit lubrication

1шт.

35

K942700

PIPE,0.375" OD x 2.25" L

CONNECTOR, valve to pipe

1шт.

K19523

PIN

SPLIT PIN, 1/16 x 3/4 in.

1шт.
