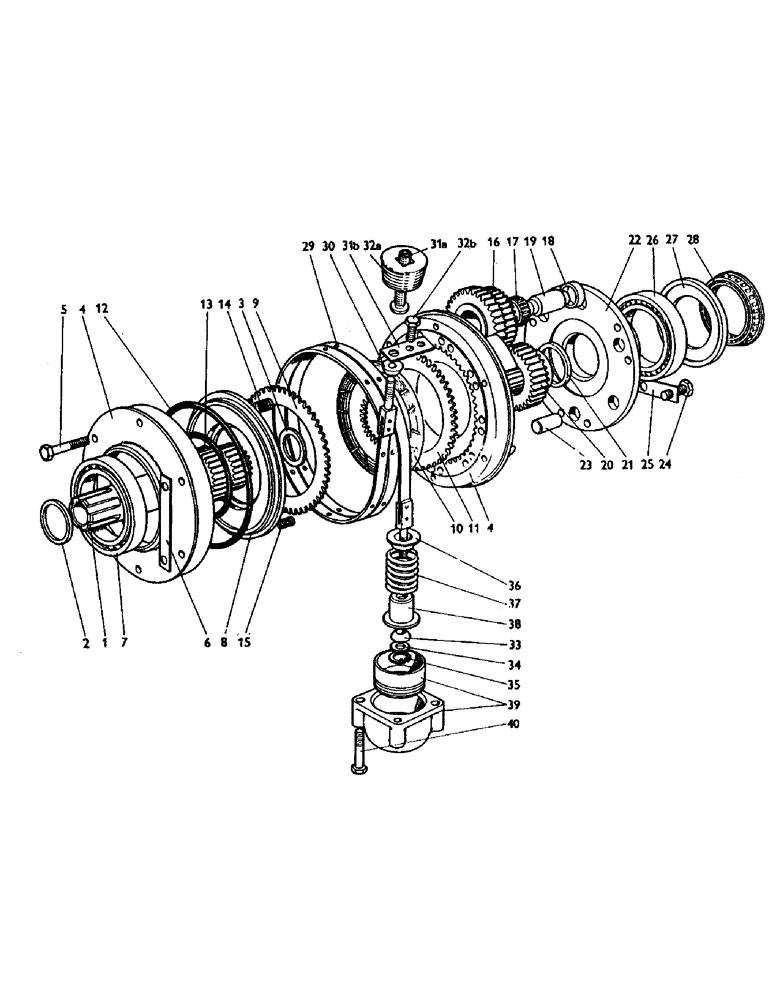

Запчасти Case IH 1212 (C24) - GEARBOX, REAR PLANETARY UNIT, 1212 TRACTORS Gearbox

1

K916873

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K908509

WASHER

THRUST WASHER, front

1шт.

3

K917185

WASHER

THRUST WASHER, inner

1шт.

4

K917836

CARRIER

AND CYLINDER, Includes: Ref. 5 & 6

1шт.

5

K600207

BOLT

5/16 UNC x 1-3/4 in.

6шт.

6

K626386

WASHER

TABWASHER

3шт.

7

K620082

BEARING, BALL

BALL BEARING

1шт.

8

K943958

PISTON

1шт.

K963594

CLUTCH

PLATE PACK, selective assembly, Includes: Ref. 9 - 11 and backing plates

1шт.

9

CLUTCH PLATE, steel, not supplied separately

4шт.

10

CLUTCH PLATE, grooved faces, not supplied separately

3шт.

CLUTCH PLATE, plain bronze faces, not supplied separately

1шт.

11

BACKING PLATE, 0.184 in., alternatives not supplied separately

1шт.

BACKING PLATE, 0.192 in., alternatives not supplied separately

1шт.

BACKING PLATE, 0.198 in., alternatives not supplied separately

1шт.

BACKING PLATE, 0.204 in., alternatives not supplied separately

1шт.

12

K623576

O-RING,6.975" ID x 7.525" OD x 0.275"

'O' RING, 7 in. internal dia., piston

1шт.

13

K623575

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

'O' RING, 4 in. internal dia., piston

1шт.

14

K929779

SPRING

inner

9шт.

15

K13507

SPRING

outer

18шт.

16

K963527

GEAR

PLANET GEAR, (35/22 teeth), set of three

1шт.

17

K620275

BEARING, NEEDLE

NEEDLE ROLLER BEARING

6шт.

18

K929054

BUSHING

DISTANCE PIECE

3шт.

19

K940290

PIN

BEARING PIN

3шт.

20

K916875

GEAR

SUN GEAR, (24 teeth)

1шт.

21

K917186

WASHER

THRUST WASHER, rear

1шт.

22

K917838

CARRIER

END COVER, carrier

1шт.

23

K621808

PIN

DOWEL, 5/8 x 1-1/4 in.

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

K626388

WASHER

TABWASHER

3шт.

26

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

27

K917834

PLATE

ABUTMENT PLATE

1шт.

28

K917835

BEARING

FREEWHEEL

1шт.

29

K943410

BRAKE BAND

1шт.

30

K940064

WASHER

CONICAL WASHER, 3/8 in.

1шт.

K607377

LOCK NUT

3/8 UNC

1шт.

31a

K946253

SCREW,1/2" - 13 x 1 3/4"

STOP SCREW, 1/2 UNC (from tractor No. 1001333)

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC (from tractor No. 1001333)

1шт.

32a

K623827

PLUG

TAPER PLUG, 1 in. BSP, special (from tractor No. 1001333)

1шт.

31b

K929377

WASHER

LOCKING PLATE (to tractor No. 1001332)

1шт.

32b

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in (to tractor No. 1001332)

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in. (to tractor No. 1001332)

2шт.

33

K917590

WASHER

SPHERICAL WASHER, 3/8 in.

1шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT, 3/8 UNC

1шт.

34

K626314

WASHER

7/16 in.

1шт.

35

K621761

RING, SNAP

CIRCLIP, 7/8 in. internal

1шт.

36

K940346

STOP

1шт.

37

K625256

SPRING

1шт.

38

K917591

SLEEVE

1шт.

39

K963538

BRAKE

PISTON AND CYLINDER

1шт.

40

K600208

BOLT

5/16 UNC x 1-7/8 in.

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

4шт.
