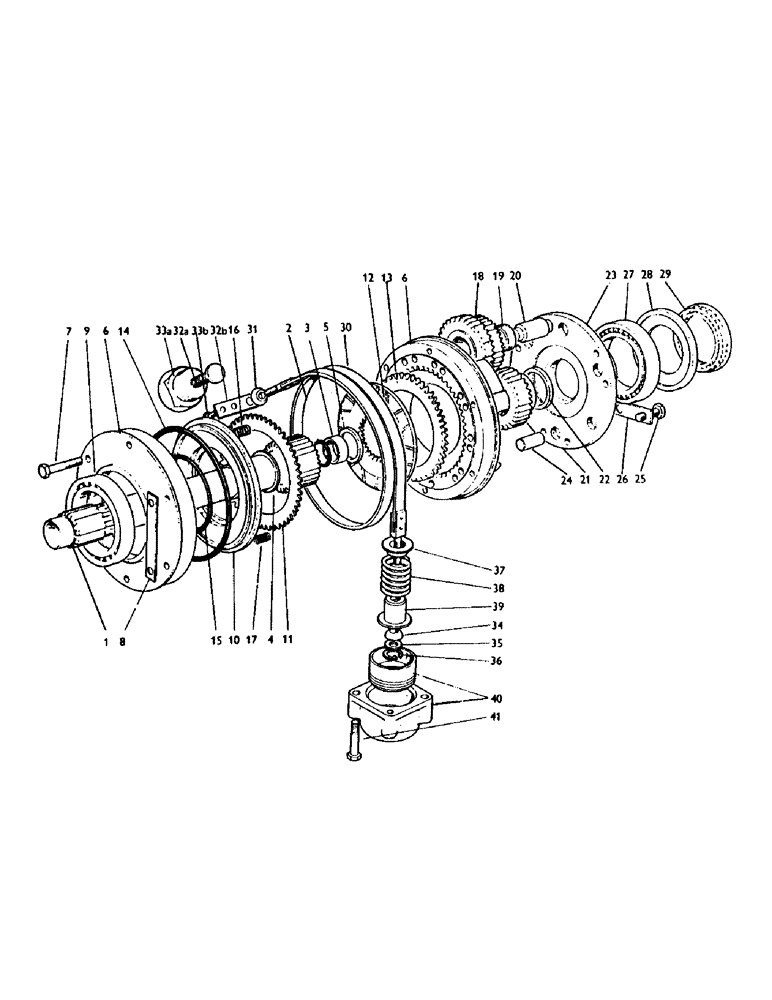

Запчасти Case IH 1212 (C22) - GEARBOX, FRONT PLANETARY UNIT, 1212 TRACTORS Gearbox

1

K916870

CLUTCH

DRIVESHAFT

1шт.

2

K623634

SEAL

ING RING, 1-1/8 in. internal dia.

1шт.

3

K917184

BUSHING

BUSH, driveshaft

1шт.

4

K908509

WASHER

THRUST WASHER, front

1шт.

5

K917185

WASHER

THRUST WASHER, inner

1шт.

6

K917828

CARRIER

AND CYLINDER, Includes: Ref. 7 & 8

1шт.

7

K600207

BOLT

5/16 UNC x 1-3/4 in.

6шт.

8

K626386

WASHER

TABWASHER

3шт.

9

K620082

BEARING, BALL

BALL BEARING

1шт.

10

K929781

PISTON

1шт.

K963593

CLUTCH

PLATE PACK, selective assembly, Includes: Ref. 11 - 13 and backing plate

1шт.

11

CLUTCH PLATE, steel, not supplied separately

2шт.

12

CLUTCH PLATE, grooved bronze faces, not supplied separately

2шт.

13

BACKING PLATE, 0.184 in., alternatives not supplied separately

1шт.

BACKING PLATE, 0.192 in., alternatives not supplied separately

1шт.

14

K623576

O-RING,6.975" ID x 7.525" OD x 0.275"

'O' RING, 7 in. internal dia., piston

1шт.

15

K623575

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

'O' RING, 4 in. internal dia., piston

1шт.

16

K929779

SPRING

inner

6шт.

17

K13507

SPRING

outer

18шт.

18

K963526

GEAR

PLANET GEAR, (41/30 teeth), set of three

1шт.

19

K620274

ROLLER CAGE BEARING

NEEDLE ROLLER BEARING

6шт.

20

K940289

PIN

BEARING PIN

3шт.

21

K916872

GEAR

SUN GEAR

1шт.

22

K917186

WASHER

THRUST WASHER, rear

1шт.

23

K917831

CARRIER

END COVER, carrier

1шт.

24

K621808

PIN

DOWEL, 5/8 x 1-1/4 in.

3шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

26

K626388

WASHER

TABWASHER

3шт.

27

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

28

K917834

PLATE

ABUTMENT PLATE

1шт.

29

K917835

BEARING

FREEWHEEL

1шт.

30

K943409

BRAKE BAND

1шт.

31

K940064

WASHER

CONICAL WASHER, 3/8 in.

1шт.

K607377

LOCK NUT

3/8 in.

1шт.

32a

K914883

SCREW

ADJUSTING SCREW, 5/16 UNC (from tractor No. 1001333)

1шт.

280736

NUT,5/16" - 18, Gr C

NUT, LOCK, (From tractor No. 1001333) 5/16"-18, GC

1шт.

33a

K944621

STOP

-PLUG, 1 in. BSP, special (from tractor No. 1001333)

1шт.

K628091

PLUG

SEALING PLUG, 13/16 in. dia., replaces K628082 (from tractor No. 1001333)

1шт.

32b

K929377

WASHER

LOCKING PLATE, Serial Range: (up-1212-1001333)

1шт.

33b

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in. (to tractor No. 1001322)

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in. (to tractor No. 1001322)

2шт.

34

K917590

WASHER

SPHERICAL WASHER, 3/8 in.

1шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT, 3/8 UNC

1шт.

35

K626314

WASHER

7/16 in.

1шт.

36

K621761

RING, SNAP

CIRCLIP, 7/8 in. internal

1шт.

37

K940346

STOP

1шт.

38

K625256

SPRING

1шт.

39

K917591

SLEEVE

1шт.

40

K963538

BRAKE

PISTON AND CYLINDER

1шт.

41

K600208

BOLT

5/16 UNC x 1-7/8 in., Serial Range: cylinder-spacer

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., Serial Range: cylinder-spacer

4шт.
