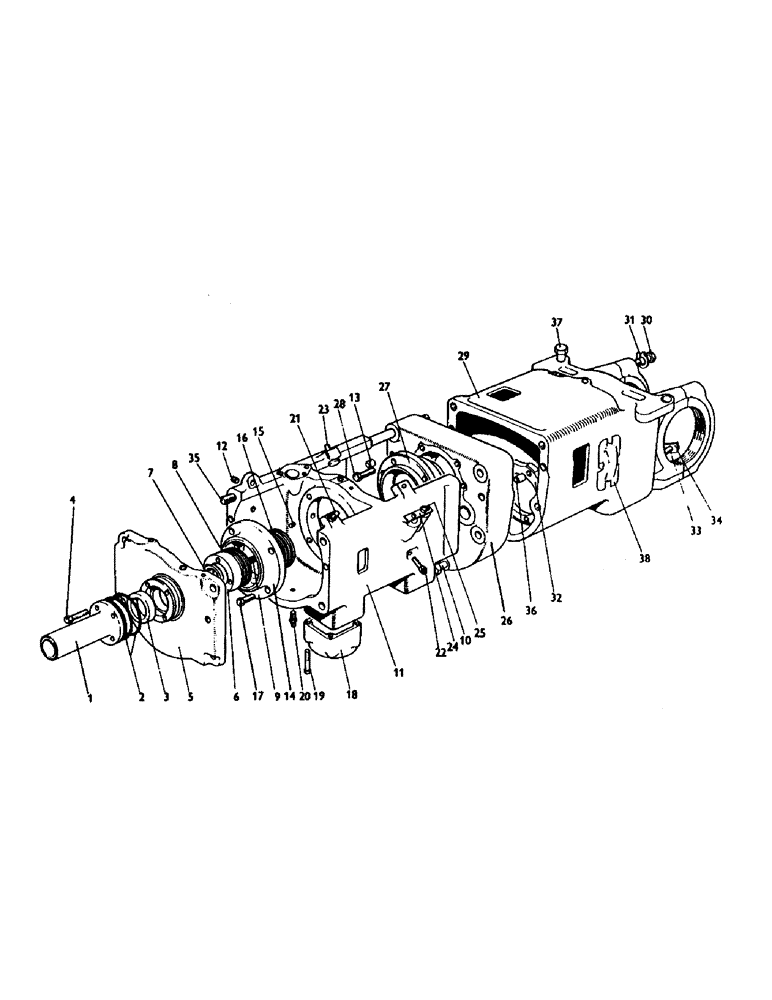

Запчасти Case IH 1212 (C20) - GEARBOX, GEARBOX, 1212 TRACTORS Gearbox

K927142

GEARBOX ASSY

GEARBOX, both sections complete

1шт.

K963537

GEARBOX ASSY

GEARBOX, semi-automatic section only

1шт.

1

K940294

SUPPORT

SNOUT, gearbox case

1шт.

2

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 2-3/4 in. internal dia., support snout, gearbox case

2шт.

3

K623415

SEAL

OIL SEAL, 46 x 65 x 10mm, gearbox case

1шт.

4

K602705

SCREW

SETSCREW, 1/4 UNC x 1 in., gearbox case

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in., gearbox case

1шт.

5

K917470

PLATE ASSY.

END PLATE, front, gearbox case

1шт.

K943635

STEP BOLT

5/16 UNC x 2 in., special, end-plate to spacer, gearbox case

2шт.

K19482

SPRING WASHER

SPRING WASHER, 5/16 in., end-plate to spacer, gearbox case

2шт.

6

K929301

SUPPORT

SLEEVE, gearbox case

1шт.

7

K908508

BUSHING

BUSH, support sleeve, gearbox case

1шт.

8

K917796

RING, PISTON

SEAL RING, gearbox case

2шт.

9

K606812

SCREW

1/4 UNC, Wedglock, gearbox case

4шт.

10

K600417

BOLT

3/8 UNC x 3-1/4 in., gearbox case

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., gearbox case

1шт.

11

K929441

BUSHING

SPACER, gearbox case

1шт.

12

K606021

SCREW

GRUBSCREW, 5/16 UNC x 5/16 in., spacer, gearbox case

1шт.

13

K621805

PIN

DOWEL, 3/8 x 7/8 in., gearbox case

2шт.

14

K929300

HOUSING

spacer, gearbox case

1шт.

15

K606200

SCREW

GRUBSCREW, 1/4 UNC x 1/4 in., housing, gearbox case

1шт.

16

K917796

RING, PISTON

SEAL RING, gearbox case

2шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in., gearbox case

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., gearbox case

4шт.

18

K963538

BRAKE

CYLINDER AND PISTON, brake band, gearbox case

2шт.

19

K600208

BOLT

5/16 UNC x 1-7/8 in., cylinder to spacer, gearbox case

8шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., cylinder to spacer, gearbox case

8шт.

20

K929459

SCREW

LOCATING SCREW, 5/16 UNF x 1-3/8 in., front brake band, gearbox case

2шт.

21

K929460

SCREW,5/16" - 24 x 1 3/8"

LOCATING SCREW, 5/16 UNF x 1-3/8 in., front brake band, gearbox case

1шт.

K617051

NUT

LOCKNUT, 5/16 UNF, front brake band, gearbox case

3шт.

22

K929458

SCREW

LOCATING SCREW, 3/8 UNF x 1-3/4 in., rear brake band, gearbox case

1шт.

K617052

NUT

LOCKNUT, 3/8 UNF, rear brake band, gearbox case

1шт.

23

K929460

SCREW,5/16" - 24 x 1 3/8"

LOCATING SCREW, 5/16 UNF x 1-3/8 in., rear brake band, gearbox case

3шт.

K617051

NUT

LOCKNUT, 5/16 UNF, rear brake band, gearbox case

3шт.

24

K929377

WASHER

LOCKING PLATE, brake band adjusters, gearbox case

2шт.

25

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in., brake band adjusters, gearbox case

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in., brake band adjusters, gearbox case

4шт.

26

K940299

PLATE

END-PLATE, centre, gearbox case

1шт.

27

K928480

HOUSING

centre plate, gearbox case

1шт.

28

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in., gearbox case

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., gearbox case

6шт.

29

K962991

ADJUSTER

CASE, range gearbox

1шт.

38

K947189

COVER

PLATE, gearbox case

1шт.

Used on model 1212, S/N 1003002 and after

1шт.

30

K601242

BOLT

5/8 UNC x 3-3/4 in., gearbox case

4шт.

31

K626389

BEARING WASHER

TABWASHER, gearbox case

4шт.

32

K917472

SUPPORT

PLATE, pinion bearing, gearbox case

1шт.

33

K600405

BOLT

3/8 UNC x 1-5/8 in., gearbox case

6шт.

34

K626387

WASHER

TABWASHER, gearbox case

3шт.

35

K608410

STUD

1/2 UNC x 17-5/8 in., gearbox case

4шт.

K607004

NUT

1/2 UNC, gearbox case

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in., gearbox case

4шт.

36

K621805

PIN

DOWEL, 3/8 x 7/8 in., gearbox case

2шт.

37

K601306

BOLT

5/8 UNC x 2-1/2 in., case to main frame, gearbox

2шт.

K920656

BUSHING

BUSH, case to main frame, gearbox

2шт.

K626239

SHIM,.010" Thk

Gearbox case .010" Thk

1шт.
