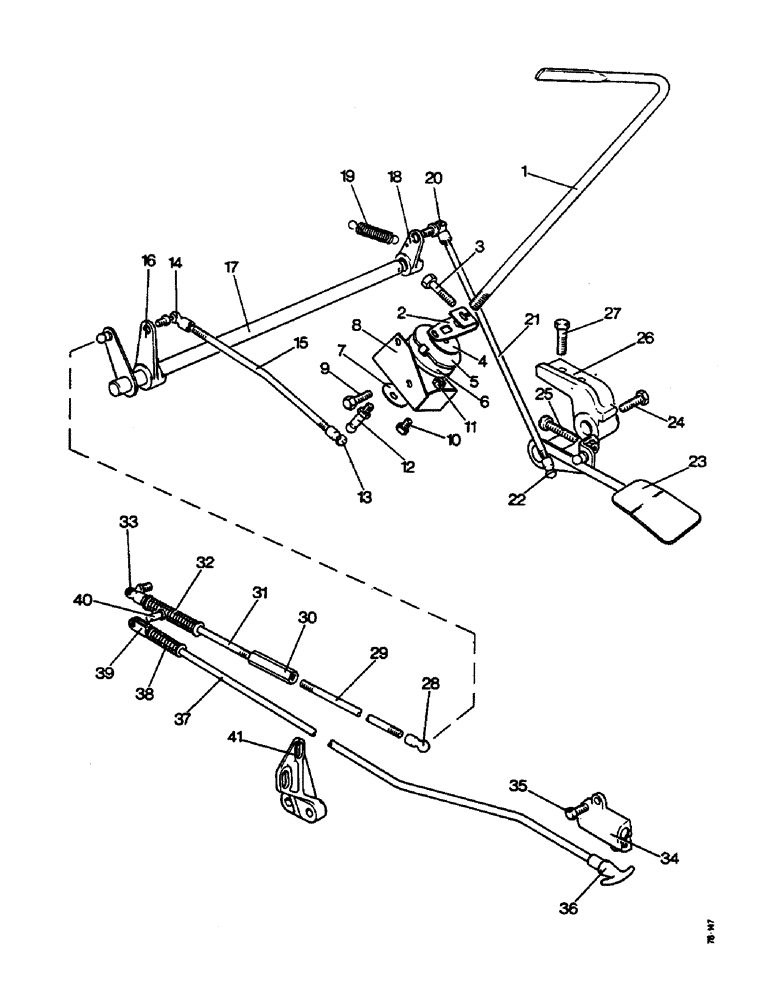

Запчасти Case IH 1212 (F12) - ENGINE CONTROLS AND INSTRUMENTS, THROTTLE AND STOP CONTROLS, 1212 TRACTORS Engine Controls & Instruments

1

K919002

LEVER

HAND LEVER

1шт.

K919618

SUPPORT

BLOCK, hand lever

1шт.

2

K919003

LEVER

1шт.

3

K600144

BOLT

1/4 UNC x 1-3/8 in, lever to hand lever

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in, lever to hand lever

1шт.

K607000

NUT

1/4 UNC, lever to hand lever

1шт.

4

K19472

WASHER

3/8 in

1шт.

5

K919004

DRIVE

PLATE

1шт.

6

K917612

DISC

FRICTION DISC

1шт.

7

K626741

WASHER

BELLEVILLE WASHER, 3/8 in

1шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT, 3/8 in

1шт.

8

K940117

SUPPORT

BRACKET

1шт.

9

K602704

SCREW

SETSCREW, 1/4 UNC x 7/8 in, bracket to steering box

3шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in, bracket to steering box

3шт.

10

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW, 1/4 UNC x 1/2 in, hand lever stops

2шт.

K19470

WASHER

1/4 in, hand lever stops

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, hand lever stops

2шт.

11

K943634

NUT

1/4 UNC, special hand lever stops

2шт.

12

K621905

BALL

END, 1/4 BSF

1шт.

13

K621902

END ASSY.

SOCKET END, 1/4 BSF

1шт.

14

K621902

END ASSY.

SOCKET END

1шт.

K621906

PIN

BALL END

1шт.

K19401

NUT

1/4 BSF

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

K19440

NUT

LOCKNUT, 1/4 BSF

2шт.

15

K940128

ROD

hand lever to cross shaft

1шт.

16

K928177

LEVER

cross shaft

1шт.

17

K928189

SHAFT

CROSS SHAFT

1шт.

18

K928178

LEVER

cross shaft

1шт.

K623747

SPLIT PIN/SAFETY PIN

MILLS PIN, 5/32 x 3/4 in

2шт.

19

K624938

SPRING

RETURN SPRING

1шт.

20

K621902

END ASSY.

SOCKET END, 1/4 BSF

1шт.

K621906

PIN

BALL END, 1/4 BSF

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K19401

NUT

1/4 BSF

1шт.

21

K928188

ROD

pedal to cross shaft

1шт.

K19440

NUT

LOCKNUT, 1/4 BSF

2шт.

22

K621902

END ASSY.

SOCKET END

1шт.

23

K942134

PEDAL

ACCELERATOR PEDAL

1шт.

K19476

WASHER

3/4 in

1шт.

K88751

WASHER

3/8 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

24

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in

1шт.

25

K620500

BOLT

1/4 BSF x 1-1/16, pedal stop

1шт.

K19440

NUT

LOCKNUT, 1/4 BSF

1шт.

26

K940909

BRACKET

SUPPORT BRACKET, pedal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

27

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in, bracket to frame

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: bracket-frame

2шт.

28

K621902

END ASSY.

SOCKET END

1шт.

K19440

NUT

LOCKNUT, 1/4 BSF

3шт.

29

K929575

ROD

cross shaft to adjusting sleeve

1шт.

30

K38598

SLEEVE

ADJUSTING SLEEVE, 1/4 BSF

1шт.

K12285

NUT

LOCKNUT, 1/4 BSF, left-hand

1шт.

31

K929574

ROD

sleeve to injection pump

1шт.

32

K625260

SPRING

throttle return

1шт.

K19470

WASHER

1/4 in

2шт.

33

K621902

END ASSY.

SOCKET END, 1/4 BSF

1шт.

K621906

PIN

BALL END, 1/4 BSF

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K19401

NUT

1/4 BSF

1шт.

34

K940118

HOUSING

BRACKET, stop control

1шт.

35

K602704

SCREW

SETSCREW, 1/4 UNC x 7/8 in, stop bracket to throttle bracket

2шт.

K607000

NUT

1/4 UNC, stop bracket to throttle bracket

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in, stop bracket to throttle bracket

2шт.

36

K947418

HANDLE

KNOB, stop control

1шт.

K12939

WASHER

3/16 in, special

1шт.

K617080

NUT

No. 10 UNF

1шт.

37

K940119

ROD

engine stop

1шт.

38

K24780

SPRING

RETURN SPRING, stop control

1шт.

K12939

WASHER

3/16 in, special

2шт.

39

K622203

FORK

END, No. 10 UNF

1шт.

40

K913180

PIN

CLEVIS PIN, 1/4 x 5/8 in

1шт.

K11934

PIN

SPLIT PIN, 1/16 x 1/2 in

1шт.

K617080

NUT

No. 10 UNF

1шт.

41

K928761

BRACKET

injection pump controls

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, bracket to injection pump

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, bracket to injection pump

2шт.
