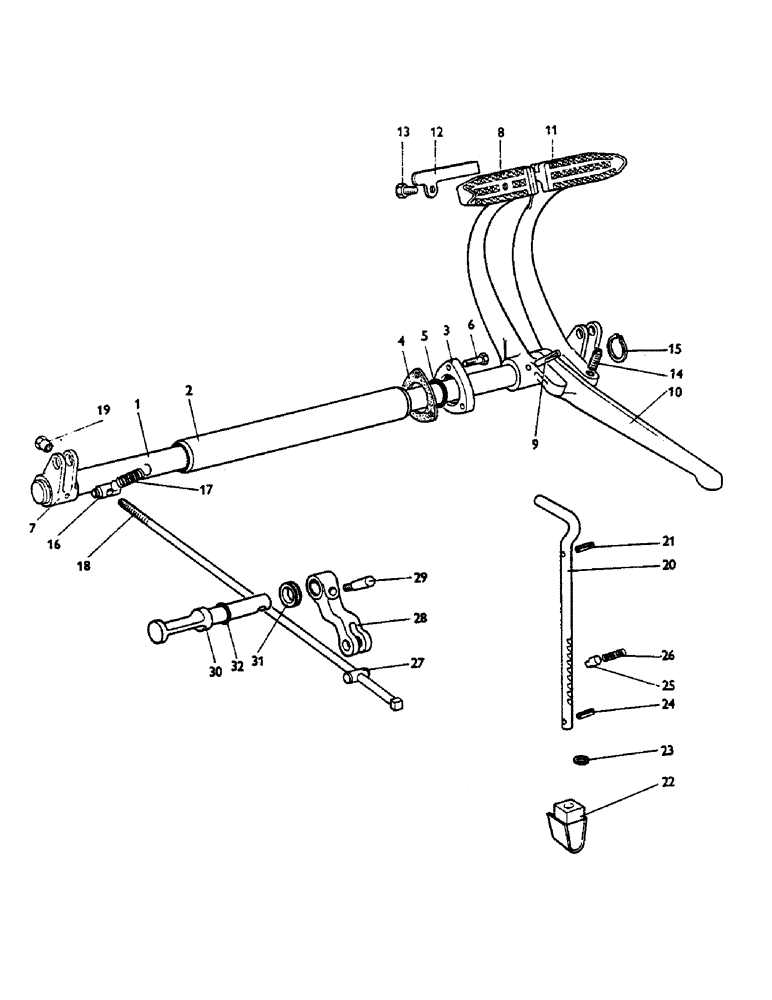

Запчасти Case IH 1212 (G04) - BRAKES, BRAKE LINKAGE, 1210 AND 1212 TRACTORS (5.1) - BRAKES

1

K940582

SHAFT

CROSS SHAFT

1шт.

2

K916651

TUBE

cross shaft

1шт.

3

K916650

CAP

END CAP

2шт.

4

K916652

GASKET

caps to main frame

2шт.

5

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

'O' RING, 1-7/8 in internal dia., caps to main frame

4шт.

6

K602806

BOLT

SETSCREW, 5/16 UNC x 1-1/8 in, caps to main frame

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, caps to main frame

6шт.

7

K916679

LEVER

cross shaft

1шт.

8

K940738

BRAKE

PEDAL, left-hand

1шт.

9

K11737

PIN

MILLS PIN, 3/8 x 2-1/4 in

2шт.

10

K940581

LEVER

OPERATING LEVER, hand brake

1шт.

K916681

SHIM

1шт.

11

K916374

BRAKE

PEDAL, right-hand

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, RH pedal 1/4"-28 NPT x .54" lg

1шт.

12

K940670

PLATE

LOCKING PLATE, pedals

1шт.

13

K600500

SCREW

BOLT, 3/8 UNC, special, Serial Range: plate-pedal

1шт.

K626700

WASHER

SPRING WASHER, 3/8 in, Serial Range: plate-pedal

1шт.

14

K606170

SCREW

GRUBSCREW, 7/16 UNC, pedal

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT, 7/16 UNC

1шт.

15

K11538

RING, SNAP

CIRCLIP, 1-1/2 in external, cross shaft

1шт.

16

K919706

PIN

cross shaft lever

2шт.

17

K624927

SPRING

RETURN SPRING

2шт.

18

K940583

BAR ASSY.

BRAKE ROD, 3/8 UNC x 25 in

2шт.

19

K607504

NUT

ADJUSTING NUT, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

20

K929791

LEVER

HAND LEVER

1шт.

21

K623892

PIN

SPRING PIN, 5/16 x 1-1/2 in

1шт.

22

K949260

FORK

replaces K945873

1шт.

23

K626736

WASHER

5/8 in special

1шт.

24a

K623892

PIN

SPRING PIN, 5/16 x 1-1/2 in, use with 945873

1шт.

24b

K623895

PIN

SPRING PIN, 5/16 x 2 in, use with 919897

1шт.

25

K909588

PAWL

1шт.

26

K14651

SPRING

pawl

1шт.

27

K14744

PIN

cam lever

2шт.

28

K940580

LEVER

CAM LEVER

2шт.

29

K609425

LARGE PIN

COTTER PIN, 3/8 UNC, cam, Serial Range: lever-camshaft

2шт.

K19472

WASHER

3/8 in, cam, Serial Range: lever-camshaft

2шт.

K11522

WASHER

SHAKEPROOF WASHER, 3/8 in, cam, Serial Range: lever-camshaft

2шт.

280136

NUT,3/8"-16, G8

Cam lever to camshaft 3/8"-16, G8

2шт.

30

K920438

BRAKE

CAMSHAFT, left-hand

1шт.

K920437

BRAKE

CAMSHAFT, right-hand

1шт.

31

K85417

SEAL

DIRT EXCLUDER

2шт.

32

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

'O' RING, 1 in internal dia.

2шт.
