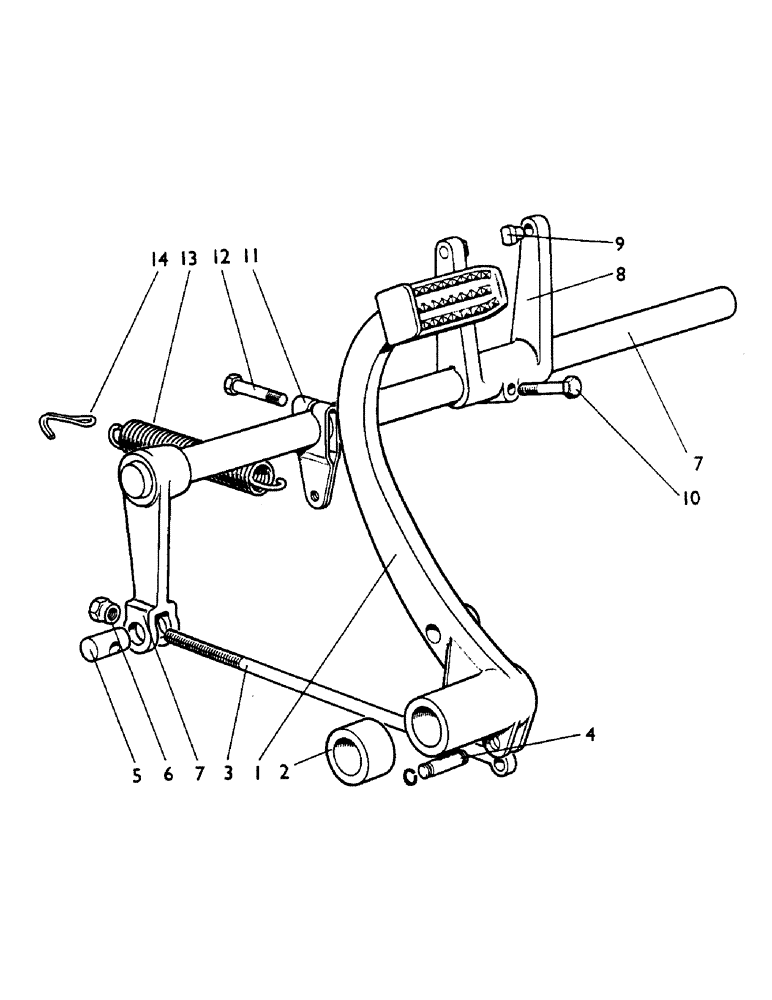

Запчасти Case IH 1212 (B26) - CLUTCH, CONTROLS - TRANSMISSION CLUTCH, 996, 1210 AND 1212 TRACTORS (03.1) - CLUTCH

1a

K919426

CLUTCH

PEDAL (1210, 1212) (replaces K945933)

1шт.

1b

K943381

CLUTCH

PEDAL (996)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

2

K943382

BUSHING

SPACER, pedal pivot (996)

1шт.

3a

K916661

ROD

13 5/8" Straight, pedal to cross shaft (1210, 1212)

1шт.

3b

K943376

CLUTCH

ROD, 10" 2 Bands, pedal to cross shaft (996)

1шт.

4

K950269

PIN

PIVOT PIN, 3/8 x 1-1/4 in., replaces K69984 and K19528

1шт.

K621562

RING, SNAP

CIRCLIP, 3/8 in. dia., replaces K69984 and K19528

2шт.

5

K14744

PIN

1шт.

6

K607504

NUT

ADJUSTING NUT, 3/8 UNC

1шт.

280136

NUT,3/8"-16, G8

1шт.

7

K915993

ARM

AND CROSS SHAFT (1210, 1212)

1шт.

7

K943718

ARM

AND CROSS SHAFT (996)

1шт.

K19612

KEY

Woodruff No. 608

2шт.

8

K915831

TRANSMISSION

FORK

1шт.

9

K84748

TRUNNION

PIN, fork

2шт.

10

K600406

BOLT

3/8 UNC x 1-3/4 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

1шт.

11

K916477

LEVER

return spring (1210 and 1212)

1шт.

12

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in. (1210 and 1212)

1шт.

280136

NUT,3/8"-16, G8

(1210 and 1212) 3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in. (1210 and 1212)

1шт.

K19472

WASHER

3/8 in. (1210 and 1212)

1шт.

13

K624909

SPRING

(1210 and 1212)

1шт.

14

K916478

SPRING

HOOK, spring (1210 and 1212)

1шт.
