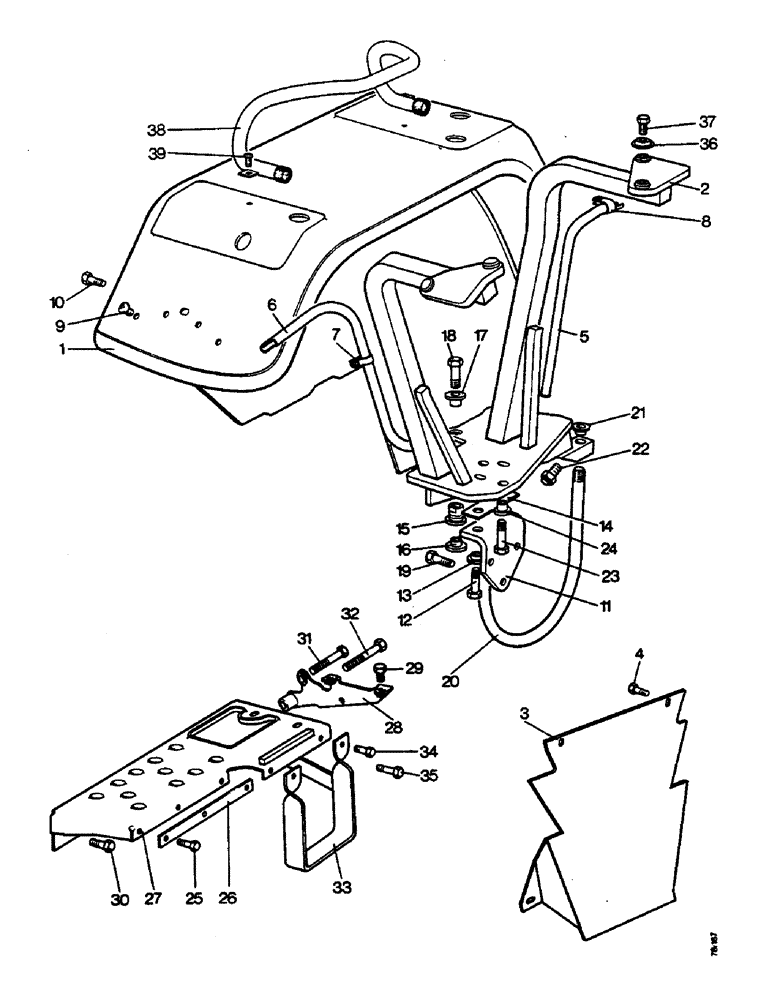

Запчасти Case IH 1212 (L54) - CHASSIS, FENDERS & FRAME PLATFORMS, 1210 & 1212 TRACTORS, TRACTORS FITTED W/ REINFORCED FULL FENDERS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1a
K775035
RIM
FULL FENDER, right-hand
1шт.
Used on model 1210, S/N 727072 and after
1шт.
Used on model 1212, S/N 1003291 and after
1шт.
K775038
WHEEL
FULL FENDER, left-hand
1шт.
Used on model 1210, S/N 727072 and after
1шт.
Used on model 1212, S/N 1003291 and after
1шт.
1b
K771568
RIM
FULL FENDER, right-hand
1шт.
Used on model 1210, up to S/N 727072
1шт.
Used on model 1212, up to S/N 1003291
1шт.
K771449
RIM
FULL FENDER, left-hand
1шт.
Used on model 1210, up to S/N 727072
1шт.
Used on model 1212, up to S/N 1003291
1шт.
2
K771856
FRAME
SUPPORT, right-hand fender
1шт.
K771574
FRAME
SUPPORT, left-hand fender
1шт.
K774980
FRAME
SUPPORT, right-hand (4WD Mkll)
1шт.
K775033
FRAME
SUPPORT, left-hand (4WD Mkll)
1шт.
K774743
GUARD
MUD-SHIELD, right-hand
1шт.
Used on model 1210, S/N 727072 and after
1шт.
Used on model 1212, S/N 1003291 and after
1шт.
K774737
GUARD
MUD-SHIELD, left-hand
1шт.
Used on model 1210, S/N 727072 and after
1шт.
Used on model 1212, S/N 1003291 and after
1шт.
3
K773471
SPARE PART
MUD-SHIELD, right-hand fender
1шт.
Used on model 1210, up to S/N 727072
1шт.
Used on model 1212, up to S/N 1003291
1шт.
K773472
SPARE PART
MUD-SHIELD, left-hand fender
1шт.
Used on model 1210, up to S/N 727072
1шт.
Used on model 1212, up to S/N 1003291
1шт.
4
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW, 5/16 UNC x 3/4 in, mud-shields to fenders
8шт.
K626682
WASHER
5/16 in, Serial Range: mud-shields-fenders
8шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in, Serial Range: mud-shields-fenders
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC, mud-shields to fenders
8шт.
5
K772448
CABLE TUBE, front
2шт.
6
K772450
CABLE TUBE, right-hand, rear
1шт.
K772449
CABLE TUBE, left-hand, rear
1шт.
7
K621688
CLIP
1/2 in, Serial Range: tubes-fenders
8шт.
8
K621689
CLIP
1/2 in, Serial Range: tubes-fenders
4шт.
9
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
No. 10 UNF x 1/2 in, tubes to fenders
4шт.
K626340
RING
SPRING WASHER, 3/16 in, Serial Range: tubes-fenders
4шт.
K617080
NUT
No. 10 UNF, Serial Range: tubes-fenders
4шт.
10
K602849
SCREW
SETSCREW, 5/16 UNC x 7/8 in, Serial Range: supports-fenders
16шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in, Serial Range: supports-fenders
16шт.
K626682
WASHER
5/16 in, Serial Range: supports-fenders
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC, supports to fenders
16шт.
K775563
BRACKET
CONVERSION BRACKETS, narrow brakes (set, Serial Range: up-703005)
1шт.
11
K771570
SUPPORT
PLATE
2шт.
Used on model 1210, S/N 727072 and after
1шт.
Used on model 1212, S/N 1003291 and after
1шт.
K775288
SUPPORT
PLATE, right-hand (4WD Mkll)
1шт.
K775294
SUPPORT
PLATE, left-hand (4WD Mkll)
1шт.
12
K691839
BOLT
1/2 UNC x 2-1/4 in, Serial Range: plates-supports
6шт.
13
K771938
BUSHING
NYLON BUSH, Serial Range: plates-supports
6шт.
K691835
WASHER
1/2 in, special, Serial Range: plates-supports
6шт.
K626686
WASHER
1/2 in, Serial Range: plates-supports
6шт.
14
K771560
PAD
NYLON PAD, Serial Range: plates-supports
2шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in, Serial Range: plates-supports
6шт.
15a
K773969
ADJUSTER
supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
16
K771563
BUSHING
NYLON BUSH, supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
17a
K773970
WASHER
DAMPING WASHER, supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
K692050
WASHER
special, supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
K692049
WASHER
special, supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in, supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
18a
K600885
BOLT
1/2 UNC x 2 in, supports to rear axle case
4шт.
Used on model 1210, S/N 724505 and after
1шт.
Used on model 1212, S/N 1002447 and after
1шт.
K771922
ADJUSTER
1 in UNC, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
16
K771563
BUSHING
NYLON BUSH, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
K772000
CAP
adjuster, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
17b
K772001
BUSHING
NYLON BUSH, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
K691835
WASHER
1/2 in, special, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
18b
K600893
BOLT
1/2 UNC x 2-3/4 in, supports to rear axle case
4шт.
Used on model 1210, up to S/N 724505
1шт.
Used on model 1212, up to S/N 1002447
1шт.
19
K603275
SCREW
SETSCREW, 5/8 UNC x 1-5/8 in, plates to reduction units
6шт.
K19485
WASHER
SPRING WASHER, 5/8 in, plates to reduction units
6шт.
K626855
WASHER
5/8 in, plates to reduction units
6шт.
20
K771600
BOLT
'U' BOLT, 3/4 UNC, Serial Range: supports-reductions
2шт.
21
K771554
BUSHING
NYLON BUSH, Serial Range: supports-reductions
4шт.
K19476
WASHER
3/4 in, Serial Range: supports-reductions
4шт.
K607086
NUT
LOCKNUT, 3/4 UNC, Serial Range: supports-reductions
8шт.
22
K771994
SCREW
SETSCREW, 1/2 UNF, special, Serial Range: supports-reductions
4шт.
23
K691834
SCREW
SETSCREW, 5/8 UNC x 3 in, Serial Range: supports-reductions
2шт.
24
K771606
BUSHING
NYLON BUSH, Serial Range: supports-reductions
2шт.
K771605
WASHER
NYLON WASHER, 5/8 in, Serial Range: supports-reductions
2шт.
K691832
WASHER
5/8 in, Serial Range: supports-reductions
4шт.
25
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
SETSCREW, 5/16 UNC x 1 in, replaces K602849, fenders to platforms
6шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in, Serial Range: fenders-platforms
6шт.
K626682
WASHER
5/16 in, Serial Range: fenders-platforms
12шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC, fenders to platforms
6шт.
26
K772133
STRIP
NYLON STRIP, Serial Range: fenders-platforms
2шт.
27
K943581
FRAME
PLATFORM, right-hand
1шт.
K943571
FRAME
PLATFORM, left-hand
1шт.
28
K949434
LEVER
GUSSET
1шт.
Used on model 1212, S/N 1003291 and after
1шт.
Used on model 1210, S/N 729869 and after
1шт.
29
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Gusset to frame platform Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
Used on model 1212, S/N 1003291 and after
1шт.
Used on model 1210, S/N 729869 and after
1шт.
K19472
WASHER
3/8 in, gusset to frame platform
2шт.
Used on model 1212, S/N 1003291 and after
1шт.
Used on model 1210, S/N 729869 and after
1шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in, gusset to frame platform
2шт.
Used on model 1212, S/N 1003291 and after
1шт.
Used on model 1210, S/N 729869 and after
1шт.
30
K603003
SCREW
SETSCREW, 7/16 UNC x 1 in, platforms to main frame
11шт.
K19483
SPRING WASHER
SPRING WASHER, 7/16 in, platforms to main frame
12шт.
31
K600815
BOLT
1/2 UNC x 3-1/4 in, gusset to main frame
1шт.
32
K600817
BOLT
1/2 UNC x 3-3/4 in, gusset to main frame
1шт.
33
K944305
STEP
STIRRUP, right-hand
1шт.
K944304
X
STIRRUP, left-hand
1шт.
34
K602803
BOLT
SETSCREW, 5/16 UNC x 7/8 in, Serial Range: stirrups-platforms
4шт.
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
SETSCREW, 5/16 UNC x 7/8 in, stirrups to platforms
1шт.
K19481
SPRING WASHER
WASHER, 5/16 in, Serial Range: stirrups-platforms
5шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC, stirrups to platforms
5шт.
35
K603005
SCREW
SETSCREW, 7/16 UNC x 1-1/4 in, Serial Range: stirrups-platforms
1шт.
36
773988
CONICAL WASHER (not used with safety frame)
8шт.
37
K603274
SCREW
SETSCREW, 5/8 UNC x 1-1/2 in
8шт.
38
K773527
SEAT
RAIL ASSEMBLY, Includes: Ref. 39 and washer, spring washer, and nut
1шт.
39
K603926
SCREW
SETSCREW, 1/4 UNC x 3/4 in, seat, Serial Range: rail-fender
2шт.
K19470
WASHER
1/4 in, seat, Serial Range: rail-fender
2шт.
K626341
SPRING WASHER
SPRING WASHER, 1/4 in, seat, Serial Range: rail-fender
2шт.
K607043
NUT
1/4 UNC, seat, Serial Range: rail-fender
2шт.
Выбрано товаров: 149
