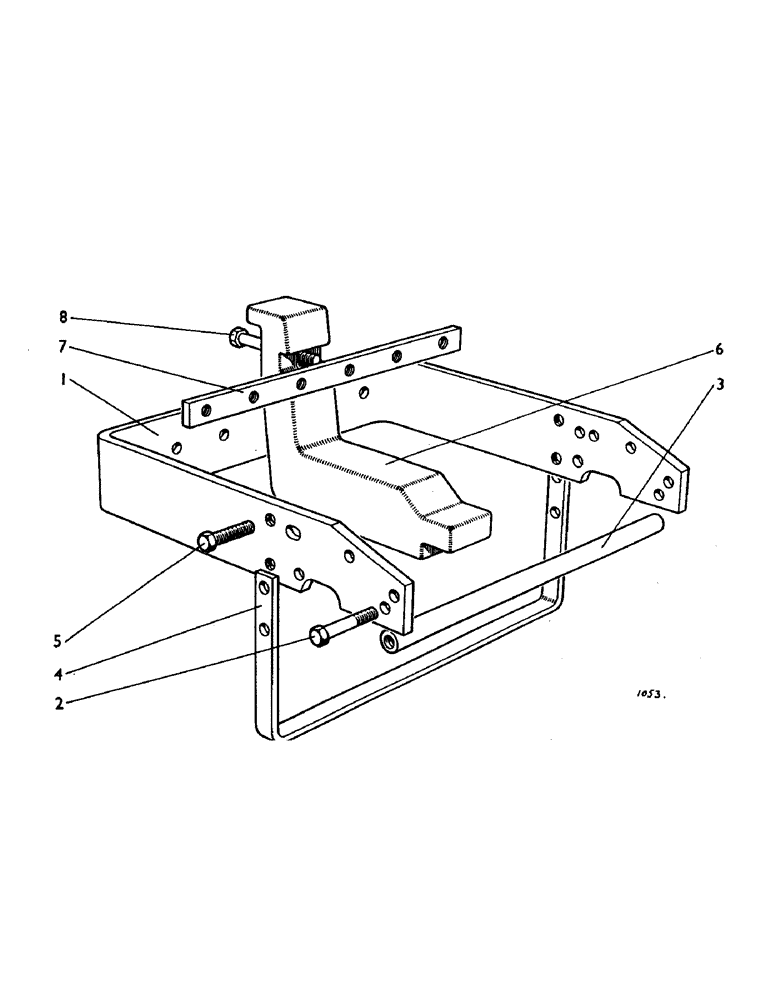

Запчасти Case IH 1212 (L28) - CHASSIS, FRONT CHASSIS BALLAST WEIGHTS, U1865 - 990, 995, 996, 1210, 1212 TRACS, OPTIONAL EQUIPMENT (12) - CHASSIS

K931600

SPARE PART

FRONT CHASSIS BALLAST WEIGHTS U1865, UK1865, K931600 and K186500 - 990, 995, 996, 1210 and 1212 Tractors (Optional Equipment)

1шт.

1

K916699

SUPPORT

FRAME

1шт.

2

K603276

SCREW

BOLT, 5/8 UNC x 1-3/4 in, replaces K601355, frame to front extension

6шт.

K19475

WASHER

5/8 in, frame to front extension

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in, frame to front extension

6шт.

3

K916586

BUSHING

SPACER BAR, frame to front extension (where fitted)

1шт.

4

K915386

BRACKET

STIRRUP

1шт.

5

K603279

SCREW

SETSCREW, 5/8 UNC x 1-3/8 in, Serial Range: stirrup-extension

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in, Serial Range: stirrup-extension

4шт.

6

K916700

WEIGHT

BALLAST WEIGHT, 67 lb

6шт.

7

K915388

BAR

LOCKING BAR

1шт.

8

K601366

BOLT

5/8 UNC x 3-1/2 in, weights to locking bar

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in, weights to locking bar

6шт.
