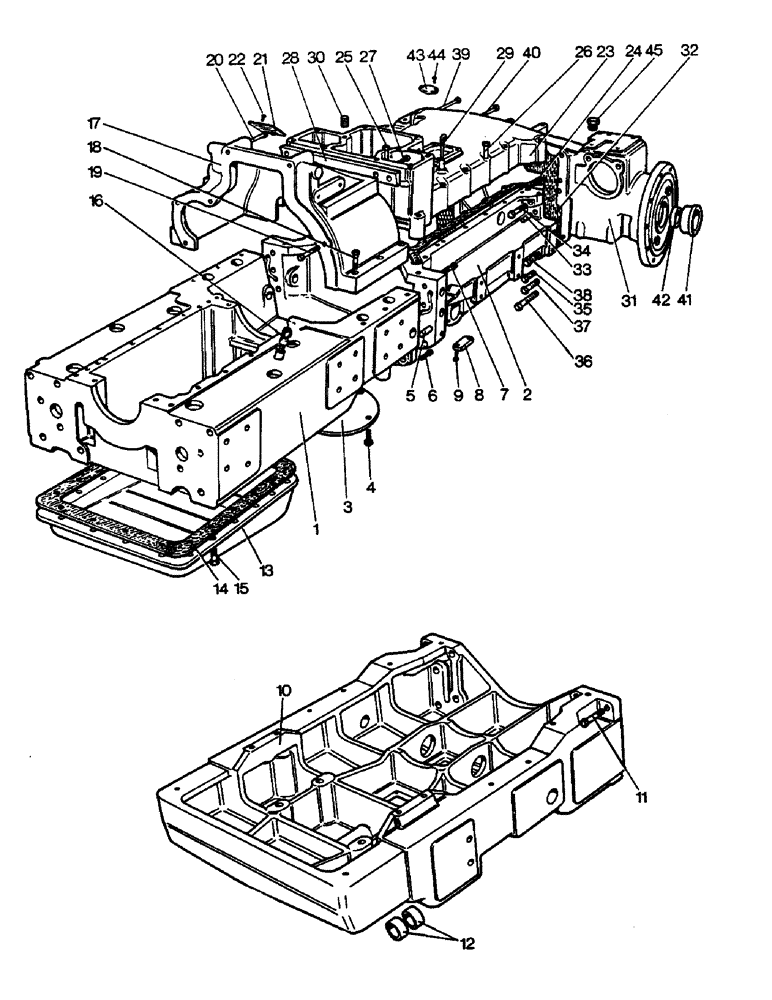

Запчасти Case IH 1212 (L10) - CHASSIS, MAIN FRAME AND REAR AXLE, 1210 AND 1212 TRACTORS (12) - CHASSIS

1

K915404

FRAME

MAIN FRAME, front

1шт.

2a

K940385

FRAME

MAIN FRAME, rear (1212)

1шт.

2b

K946040

FRAME

MAIN FRAME, rear (1210)

1шт.

Used on model 1210, S/N 723387 and after

1шт.

2c

K915403

FRAME

MAIN FRAME, rear (1210)

1шт.

Used on model 1210, up to S/N 723387

1шт.

K628084

PLUG

PLASTIC PLUG, 5/8 in

24шт.

K606021

SCREW

GRUBSCREW, main frame (1212)

3шт.

K623798

PLUG

CORE PLUG, 1 in dia.

1шт.

3

K919622

PLATE

COVER PLATE, clutch pit

1шт.

4

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in, plate to frame

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: plate-frame

4шт.

5

K900105

PIN

DOWEL, 5/8 x 1-7/16 in, main frame, Serial Range: front-rear

2шт.

6

K600808

BOLT

1/2 UNC x 2-1/4 in, main frame, Serial Range: front-rear

4шт.

7

K600814

BOLT

1/2 UNC x 3 in, main frame, Serial Range: front-rear

6шт.

K607004

NUT

1/2 UNC, main frame, Serial Range: front-rear

2шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, main frame, Serial Range: front-rear

10шт.

K690973

FITTING

GREASE FITTING, 1/4 ANF, clutch cross shafts, replaces K13176

2шт.

K623798

PLUG

CORE PLUG, 1 in, rear main frame

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Clutch cross shafts 1/4"-28 NPT x .54" lg

2шт.

K623789

PLUG

CORE PLUG, 1 in, rear main frame

1шт.

8

K919278

COVER

PLATE, relief valve aperture

1шт.

K919279

GASKET

cover to main frame

1шт.

9

K603002

BOLT (SPREADER)

SETSCREW, 7/16 UNC x 7/8 in, cover to main frame

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, cover to main frame

2шт.

10a

K915461

FRONT EXTENSION

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K915461

FRONT EXTENSION

1шт.

Used on model 1210, up to S/N 730832

1шт.

Used on model 1212, up to S/N 1004792

1шт.

K628083

PLUG,Cap, 1.282" OD

PLASTIC PLUG, 1-1/4 in dia.

2шт.

K600806

BOLT

1/2 UNC x 2 in, Serial Range: extension-frame

12шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: extension-frame

12шт.

K15597

BUSHING

BUSH, trunnion bearings

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Trunnion bearings 1/4"-28 NPT x .54" lg

2шт.

Used on model 1210, up to S/N 730832

1шт.

Used on model 1212, up to S/N 1004792

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Trunnion bearings 1/4"-28 NPT x .54" lg

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K623794

CORE

PLUG, trunnion bore

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K948808

TUBE

LUBRICATION TUBE, trunnion

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K948809

BRACKET

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K952592

PLATE

ADAPTOR PLATE

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K622255

FITTING

LUBRICATION FITTING AND ADAPTOR

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in, bracket to front extension

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, bracket to front extension

2шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K904077

COVER

SUMP COVER

1шт.

K906429

GASKET

sump

1шт.

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

18шт.

K19481

SPRING WASHER

WASHER, 5/16 in

18шт.

K623825

PLUG

DRAIN PLUG, 1/2 BSP (Alternative)

1шт.

K626793

WASHER

SEALING WASHER, 7/8 in (Alternative)

1шт.

K626315

WASHER

PLUG, 3/4 BSP (Alternative)

1шт.

K626315

WASHER

SEALING WASHER, 3/4 in (Alternative)

1шт.

K924375

DIPSTICK

engine sump

1шт.

K83884

SLEEVE

dipstick

1шт.

K915609

CLUTCH

HOUSING

1шт.

18

K600810

BOLT

1/2 UNC x 2-1/2 in, Serial Range: housing-frame

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: housing-frame

6шт.

19

K600425

BOLT

3/8 UNC x 5-1/4 in, Serial Range: housing-engine

2шт.

20

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in, Serial Range: housing-engine

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: housing-engine

3шт.

K628087

PLUG

PLASTIC PLUG, 3/8 in, timing apertures

2шт.

21

K923650

COVER

clutch housing

1шт.

22

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in, Serial Range: cover-housing

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: cover-housing

2шт.

23a

K943906

COVER

GEARBOX COVER (1212)

1шт.

K944621

STOP

PLUG, 1 in BSP, for use with K943906

1шт.

K914483

SPECIAL SCREW, 5/16 UNC, for use with K943906

1шт.

280736

NUT,5/16" - 18, Gr C

NUT, LOCK, , For use with K943906 5/16"-18, GC

1шт.

K628091

PLUG

PLASTIC PLUG, 1 in, for use with K943906

1шт.

23b

K940988

COVER

GEARBOX COVER (1210)

1шт.

24

K922555

GASKET

gearbox cover to main frame

2шт.

25

K600829

BOLT

1/2 UNC x 6-3/4 in, gearbox cover to main frame

2шт.

K600824

BOLT

1/2 UNC x 5-1/2 in, gearbox cover to main frame (1212)

6шт.

K600821

BOLT

1/2 UNC x 4 in, gearbox cover to main frame (1212)

2шт.

K600817

BOLT

1/2 UNC x 3-3/4 in, gearbox cover to main frame (1212)

4шт.

26

K600816

BOLT

1/2 UNC x 6-3/4 in, gearbox cover to main frame

12шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, gearbox cover to main frame

10шт.

K14582

WASHER

SEALING WASHER, 1/2 in, gearbox cover to main frame

4шт.

27

K600810

BOLT

1/2 UNC x 2-1/2 in, gearbox cover to clutch housing

4шт.

K626890

WASHER

1/2 in, special, gearbox cover to clutch housing

2шт.

23b

K940988

COVER

GEARBOX COVER (1210)

1шт.

24

K922555

GASKET

gearbox cover to main frame

2шт.

25

K600829

BOLT

1/2 UNC x 6-3/4 in, gearbox cover to main frame

2шт.

K600824

BOLT

1/2 UNC x 5-1/2 in, gearbox cover to main frame (1212)

6шт.

K600821

BOLT

1/2 UNC x 4 in, gearbox cover to main frame (1212)

2шт.

K600817

BOLT

1/2 UNC x 3-3/4 in, gearbox cover to main frame (1212)

4шт.

26

K600816

BOLT

1/2 UNC x 6-3/4 in, gearbox cover to main frame

12шт.

K14582

WASHER

SEALING WASHER, 1/2 in, gearbox cover to main frame

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, gearbox cover to main frame

10шт.

27

K600810

BOLT

1/2 UNC x 2-1/2 in, gearbox cover to clutch housing

4шт.

K626890

WASHER

1/2 in, special, gearbox cover to clutch housing

2шт.

K19474

HARDWARE

WASHER, 1/2 in, gearbox cover to clutch housing

2шт.

28

K915674

WEDGE

gearbox cover to clutch housing

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, gearbox cover to clutch housing

4шт.

K915720

SHIM

0.040 in, gearbox cover to clutch housing

1шт.

29

K947616

DIPSTICK

transmission sump

1шт.

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

'O' RING, 7/16 in internal dia.

1шт.

K942348

SLEEVE

dipstick

1шт.

30

K12362

PLUG

TAPER PLUG, 1 in BSP, oil filler

1шт.

K19578

PLUG

TAPER PLUG, 3/4 BSP, gearbox cover (1212)

1шт.

Used on model 1212, S/N 1001333 and after

1шт.

K14596

PLUG

TAPER PLUG, 1/2 BSP, gearbox cover (1212)

1шт.

Used on model 1212, up to S/N 1001333

1шт.

31

K942484

SHAFT

REAR AXLE CASE, cast iron (standard)

1шт.

K926279

SHAFT

REAR AXLE CASE, SG iron (alternative)

1шт.

K921289

SHAFT

REAR AXLE CASE, twin pump

1шт.

32

K944571

GASKET,0.25mm Thk

replaces K922556, axle case to main frame

1шт.

34

K606718

SCREW

cap head, 1/2 UNC x 3 in, axle case to main frame

2шт.

33

DOWEL, 5/18 x 1-7/16 in, axle case to main frame

2шт.

K11518

WASHER

SHAKEPROOF WASHER, 1/2 in, axle case to main frame

2шт.

35

K600819

BOLT

1/2 UNC x 4-1/4 in, axle case to main frame

2шт.

36

K600817

BOLT

1/2 UNC x 3-3/2 in, axle case to main frame

1шт.

37

K600807

BOLT

1/2 UNC x 2-1/8 in, axle case to main frame

3шт.

38

K600804

BOLT

1/2 UNC x 1-3/4 in, axle case to main frame

2шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, axle case to main frame

7шт.

39

K600832

BOLT

1/2 UNC x 8 in, axle to gearbox cover

1шт.

40

K600820

BOLT

1/2 UNC x 4-1/2 in, axle to gearbox cover

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, axle to gearbox cover

5шт.

K623825

PLUG

DRAIN PLUG, 1/2 BSP

1шт.

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

K623826

PLUG

DRAIN PLUG, 3/4 BSP (Alternative)

1шт.

K626315

WASHER

SEALING WASHER, 1-1/16 in (Alternative)

1шт.

41

K200090

SEAL

HOUSING, oil seals, replaces K920444

2шт.

42

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

OIL SEAL, 1-3/4 x 3-3/16 x 1/2 in

4шт.

43a

K929465

COVER

PLATE, axle case (with dump valve)

1шт.

43b

K929463

COVER

PLATE, axle case (without dump valve)

1шт.

K929464

GASKET

, Serial Range: plate-axle

1шт.

44a

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1-1/8 in, plate to axle (with dump valve)

2шт.

44b

K604089

SCREW

SETSCREW, 5/16 UNC x 5/8 in, (without dump valve)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

45

K619528

PLUG

7/8 UNF, oil return port

1шт.

K30085

GASKET

FIBRE WASHER, 7/8 UNF, oil return port

1шт.
