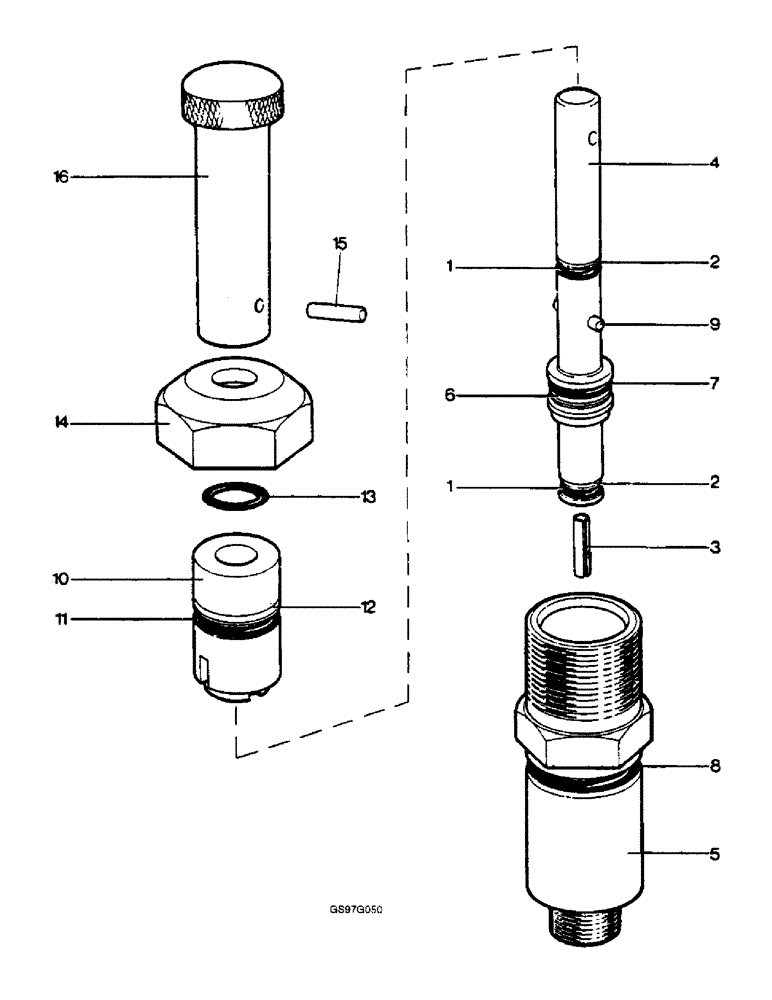

Запчасти Case IH 1212 (8-30) - DUMP VALVE, TRACTORS FOR EUROPE ONLY (08) - HYDRAULICS

K953672

HYDRAULIC VALVE

VALVE ASSEMBLY dump

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11154968 and after.

1шт.

K205087

VALVE

ASSEMBLY dump (Replaces valve assembly K953673)

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

K918195

NO LONGER SERVICED

VALVE ASSEMBLY dump, used with tractor serial numbers prior to 11154968, includes body K940576, nut K918983, bushing K918985, plunger K962194, pin K24871, pin K623724 and knob K919666

1шт.

1

K625400

O-RING,0.07" Thk x 0.239" ID

1/4 inch ID, tractor serial number 11154968 and after

1шт.

2

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

anti-extrusion, 3/8 inch OD, tractor serial number 11154968 and after

1шт.

3

38-1811

LOCK PIN,1/8" x 11/16", Slotted

Pin, , tractor serial number 11154968 and after (replaces pin K623931) 1/8" x 11/16", Slotted

1шт.

4

K964763

PLUNGER

dump valve, includes spring pin, tractor serial number 11154968 and after

1шт.

4

K962194

SET OF PARTS

PLUNGER dump valve, part of valve assembly K918195, tractor serial number 11154968 and after

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

4

K205086

PLUNGER dump valve, part of valve assembly K205087

1шт.

5

K948804

GUIDE

BODY dump valve, tractor serial number 11154968 and after, order valve assembly K205087

1шт.

5

K940576

GUIDE

BODY dump valve, part of valve assembly K918195, tractor serial number 11154968 and after, no longer available

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

6

K948806

RING

anti-extrusion, 9/16 inch OD, tractor serial number 11154968 and after

1шт.

7

K625404

O-RING,0.362" ID x 0.103" Width

3/8 inch ID, tractor serial number 11154968 and after

1шт.

8

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Tractor S/N 11154968 and after (Replaces O-ring K24556) -210, 70 Duro, .734" ID x .139" Thk

1шт.

9

K24871

GROOVED PIN,1/8" x 1/2", Type D

1/8" x 1/2", Type D

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

10

K948805

BUSHING

locating, tractor serial number 11154968 and after, no longer available

1шт.

10

K918985

BUSHING

locating, part of valve assembly K918195, tractor serial number 11154968 and after, no longer available

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

10

K205085

BUSHING

locating, part of valve assembly K205087

1шт.

11

K625405

O-RING,0.549" ID x 0.103" Width

9/16 inch ID, tractor serial number 11154968 and after

1шт.

12

K628913

RING

anti-extrusion, 3/4 inch OD, tractor serial number 11154968 and after

1шт.

13

K24554

O-RING

RING sealing, 1/2 inch ID, tractor serial number 11154968 and after

1шт.

14

K918983

NUT

special, 1 inch NF, no longer available

1шт.

15

135-34

PULLEY

PIN roll, 1/8 x 3/4 inch (Replaces pin K623724)

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

16

K919666

KNOB

dump valve

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Used with valve assembly K205087 1/8" x 5/8", Slotted

1шт.

K964568

SEAL

seal, used with dump valves K953672 and K953673, tractor serial number 11154968 and after

1шт.

K962813

GASKET

seal, used with dump valve K918195

1шт.

Used with 1210, 1212, 1210G and 1212G tractors with serial number 11154968 and after.

1шт.
