Запчасти Case IH 1212 (7-12) - BRAKE LINKAGE, 1210, 1212, 1210G AND 1212G TRACTORS (07) - BRAKES

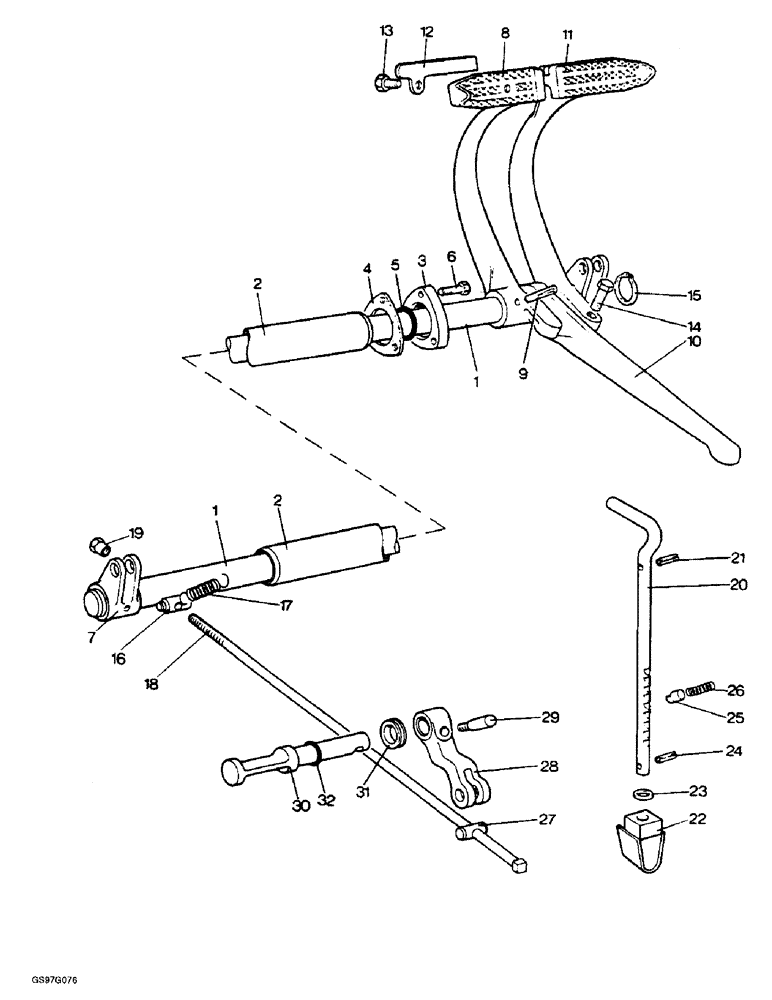

Схема запчастей Case IH 1212 - (7-12) - BRAKE LINKAGE, 1210, 1212, 1210G AND 1212G TRACTORS (07) - BRAKES
15
12
22
28
3
11
8
5
4
26
17
25
2
27
1
16
29
19
20
21
24
6
1
18
7
30
13
10
23
2
14
32
9
31

Артикул

Название

Примечание

Количество

1

K940582

SHAFT

cross, no longer available

1шт.

2

K916651

TUBE

cross-shaft, no longer available

1шт.

3

K916650

CAP

end

2шт.

4

K916652

GASKET

caps to main frame

2шт.

5

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

caps to main frame, 1-7/8 inch ID

4шт.

6

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, caps to main frame, 5/16 NC x 1-1/8 inch (Replaces screw K602806)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

6шт.

7

K916679

LEVER

cross-shaft

1шт.

8

K940738

BRAKE

PEDAL, left-hand

1шт.

9

135-103

PIN, GROOVED

3/8 x 2-1/4 inch (Replaces pin K11737)

2шт.

10

K940581

LEVER

operating, hand brake, no longer available

1шт.

K916681

SHIM

operating lever, no longer available

1шт.

11

K916374

BRAKE

PEDAL, right-hand

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

12

K948974

LATCH

PLATE locking, pedals (Replaces plate K940670)

1шт.

13

K600500

SCREW

BOLT special, plate to pedal, 3/8 NC

1шт.

K626700

WASHER

lock, plate to pedal, 3/8 inch

1шт.

14

K603044

SCREW

set, pedal, 7/16 NC x 1-3/4 inch (Replaces screw K603009)

1шт.

425-104

NUT,1/4"-20, Cl 5

hex jam, 7/16 inch NC (Replaces nut K607053)

1шт.

15

K11538

RING, SNAP

1-1/2 inch, cross-shaft

1шт.

16

K919706

PIN

cross-shaft lever

2шт.

17

K624927

SPRING

return

2шт.

18

K940583

BAR ASSY.

ROD brake, 3/8 NC x 25 inch (635 mm) long

2шт.

19

K607525

NUT

adjusting, 3/8 inch NC (Replaces nut K607504)

2шт.

280136

NUT,3/8"-16, G8

2шт.

20

K206533

LEVER

hand (Replaces lever K929791)

1шт.

21

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (replaces pin K623892) 5/16" x 1 1/2", Slotted

1шт.

22

K949260

FORK

hand lever (Replaces fork K945873)

1шт.

23

K626736

WASHER

special, 5/8 inch, no longer available

1шт.

24

K623892

PIN

spring, 5/16 x 1-1/2 inch

1шт.

25

K909588

PAWL

hand lever

1шт.

26

K14651

SPRING

pawl

1шт.

27

K14744

PIN

cam lever

2шт.

28

K940580

LEVER

cam

2шт.

29

K609425

LARGE PIN

cotter, cam lever to camshaft, 3/8 NC

2шт.

K19472

WASHER

flat, cam lever to camshaft, 3/8 inch

2шт.

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, , Cam lever to camshaft Ext Tooth, 3/8"

2шт.

280136

NUT,3/8"-16, G8

Cam lever to camshaft 3/8"-16, G8

2шт.

30

K920438

BRAKE

CAMSHAFT, left-hand

1шт.

K920437

BRAKE

CAMSHAFT, right-hand, no longer available

1шт.

31

K85417

SEAL

EXCLUDER dirt

2шт.

32

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces O-ring K623561) -212, 70 Duro, .859" ID x .139" Thk

2шт.

Выбрано товаров: 42
