Запчасти Case IH 1212 (7-10) - SLAVE CYLINDERS AND BRAKE SHOES, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS FOR EUROPE ONLY (07) - BRAKES

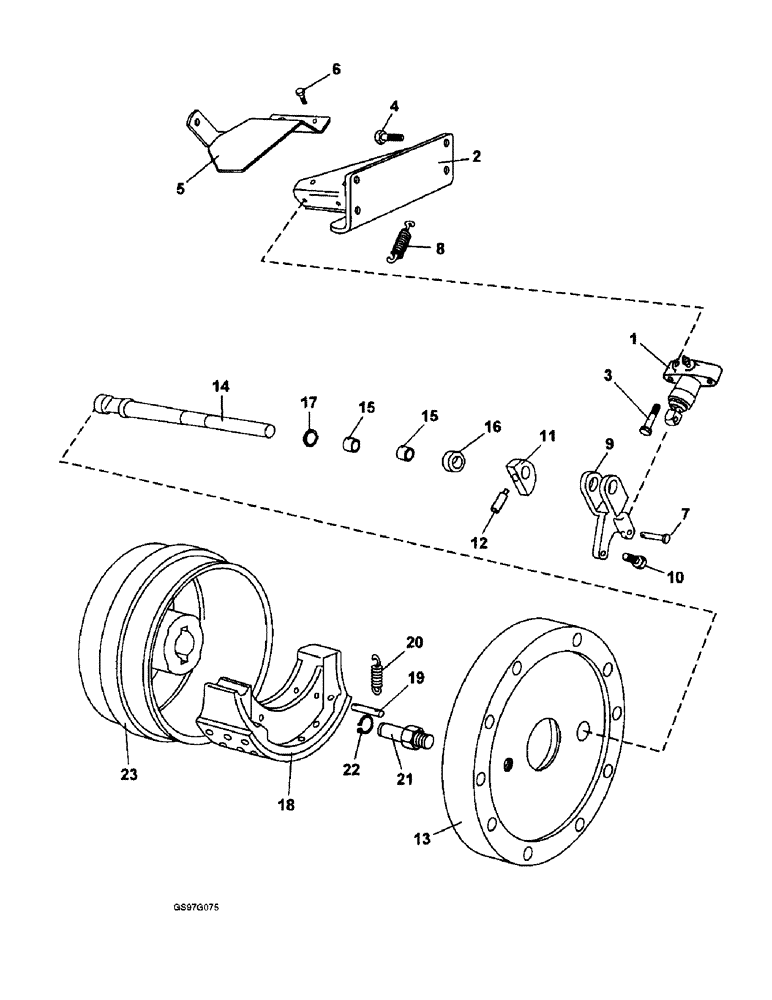

Схема запчастей Case IH 1212 - (7-10) - SLAVE CYLINDERS AND BRAKE SHOES, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS FOR EUROPE ONLY (07) - BRAKES
11
9
15
13
19
17
23
22
1
10
15
5
8
20
12
7
3
21
4
14
16
18
2
6

Артикул

Название

Примечание

Количество

1

K950549

CYLINDER

slave, Girling 73067021, no longer available

2шт.

K964574

KIT

mineral oil seal, slave cylinder

2шт.

2

K949693

MOUNTING PARTS

BRACKET, left-hand cylinder, no longer available

1шт.

K949692

MOUNTING PARTS

BRACKET, right-hand cylinder, no longer available

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cylinders to mounting brackets (Replaces bolt K600321) Hex, 5/16"-18 x 2", G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinders to mounting brackets (Replaces washer K19481) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, cylinders to mounting brackets, 5/16 inch NC (Replaces nut K607044)

4шт.

4

K603052

SCREW

set, brackets to frame, 7/16 NC x 1-1/4 inch, no longer available

8шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Brackets to frame (Replaces washer K626344) 7/16"

8шт.

5

K952149

GUARD

SHIELD left-hand slave cylinder, no longer available

1шт.

K952150

GUARD

SHIELD right-hand slave cylinder, no longer available

1шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Shield to brackets (Replaces setscrew K602734) Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Shield to brackets (Replaces washer K626341) 1/4"

4шт.

7

K625955

PIN

clevis, 5/16 x 1-13/16 inch, no longer available

2шт.

K626682

WASHER

flat, 5/16 inch

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K11934) 1/16" x 1/2"

2шт.

8

K624948

SPRING

return

2шт.

9

K948977

LEVER

cam

2шт.

10

K951528

SCREW

BOLT adjusting, 5/8 NC

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607048) 5/8"-11, G5

2шт.

11

K948979

ADJUSTER

CAM, no longer available

2шт.

12

K609425

LARGE PIN

cotter, 3/8 NC

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

280136

NUT,3/8"-16, G8

2шт.

13

K920431

ADAPTER

PLATE, right-hand

1шт.

K920432

ADAPTER

PLATE, left-hand

1шт.

14

K949688

BRAKE

CAMSHAFT, left-hand, no longer available

1шт.

K949687

BRAKE

CAMSHAFT, right-hand, no longer available

1шт.

15

K30835

BUSHING

axle housing

4шт.

16

K85417

SEAL

EXCLUDER dirt

2шт.

17

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces O-ring K623561) -212, 70 Duro, .859" ID x .139" Thk

2шт.

18

K920442

SHOE

brake, includes lining, no longer available, order shoe K920434 and lining kit K262705

4шт.

18

K920434

BRAKE SHOE

4шт.

K262705

KIT

brake lining and rivet, quantity of four (Replaces kits K962269 and K964542)

1шт.

19

K920446

PIN

spring anchor

8шт.

K11933

PIN

split, 1/8 x 5/8 inch, no longer available, order pins 132-45 and 432-812 below

16шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

16шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

32шт.

20

K624930

SPRING

brake shoes

4шт.

21

K921032

PIN

fulcrum

2шт.

K626684

WASHER

flat, 7/8 inch (Replaces washer K19497)

2шт.

22

100-1187

SNAP RING,#87, Ext

Ring, Snap, (Replaces K34454) #87, Ext

2шт.

23

K921829

BRAKE DRUM

3-1/2 inch wide

2шт.

Выбрано товаров: 43
