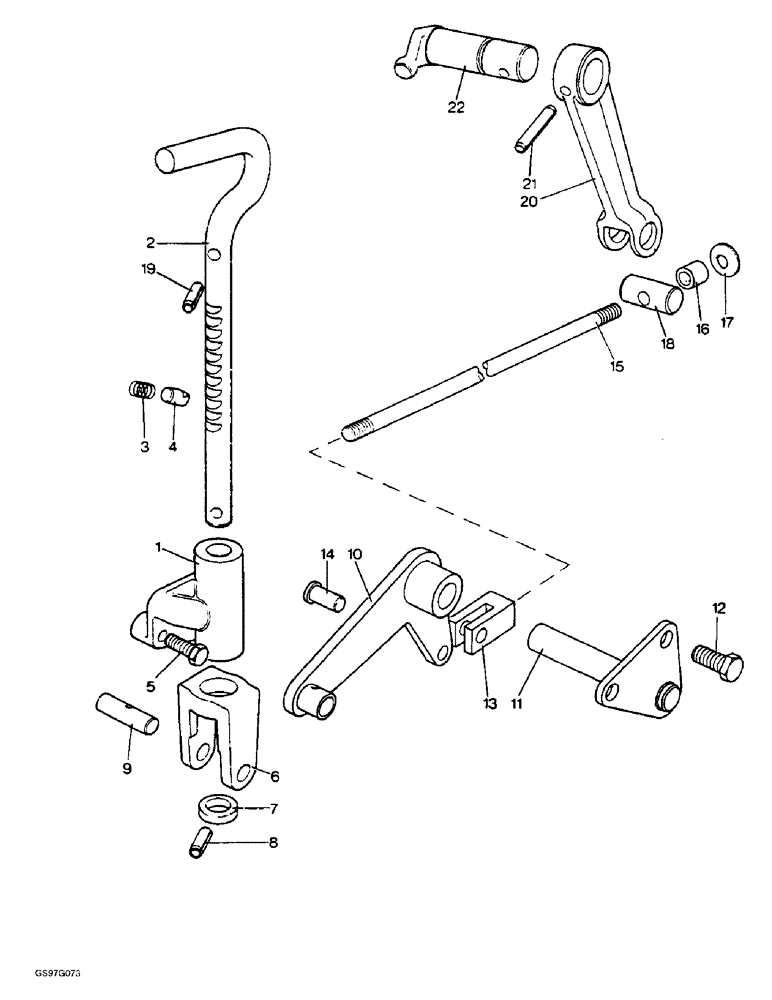

Запчасти Case IH 1212 (7-06) - TRANSMISSION BRAKE LINKAGE, 1210G AND 1212G TRACTORS (07) - BRAKES

1

K912998

HOUSING

hand lever, no longer available

1шт.

2

K918962

LEVER

hand, no longer available

1шт.

3

K14651

SPRING

pawl

1шт.

4

K909588

PAWL

hand lever

1шт.

5

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch (Replaces setscrew K602806)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

6

K912780

FORK

hand lever

1шт.

7

K65784

WASHER

spherical

1шт.

8

38-12032

LOCK PIN,5/16" x 2", Slotted

Pin, (replaces pin K623895) 5/16" x 2", Slotted

1шт.

9

K904356

PIN

fork

1шт.

38-31016

PIN,5/32" x 1", Coiled

(Replaces pin K623940) 5/32" x 1", Coiled

1шт.

10

K923451

DIPPER

CRANK bell, lever, no longer available

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

11

K918963

DIPPER

SUPPORT bell crank, no longer available

1шт.

12

K603049

BOLT

SCREW set, 7/16 NC x 7/8 inch (Replaces setscrew K603002)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

1шт.

425-107

NUT,7/16"-14, G5

hex, 7/16 inch NC (Replaces nut K607003)

1шт.

13

K916677

FORK

END

1шт.

14

K14227

PIN

bell crank, no longer available

1шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Replaces pin K19528) 3/32" x 3/4"

1шт.

15

K918967

BRAKE

ROD, no longer available

1шт.

16

K627045

BUSHING

ROD spacer, no longer available

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607002) 3/8"-16, G5

1шт.

17

K626723

BELLEVILLE WASHER

Belleville, 3/8 inch

6шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking (Replaces nut K607302) 3/8"-16, GB

1шт.

18

K14744

PIN

3/4 x 1/2 inch

1шт.

19

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (replaces pin K623892) 5/16" x 1 1/2", Slotted

1шт.

20

K918968

ARM

operating, no longer available

1шт.

21

K690862

PIN

5/16 x 1-7/8 inch, no longer available

1шт.

22

K918716

SHAFT

operating, no longer available

1шт.

23

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

(Replaces O-ring K24556), not shown -210, 70 Duro, .734" ID x .139" Thk

1шт.
