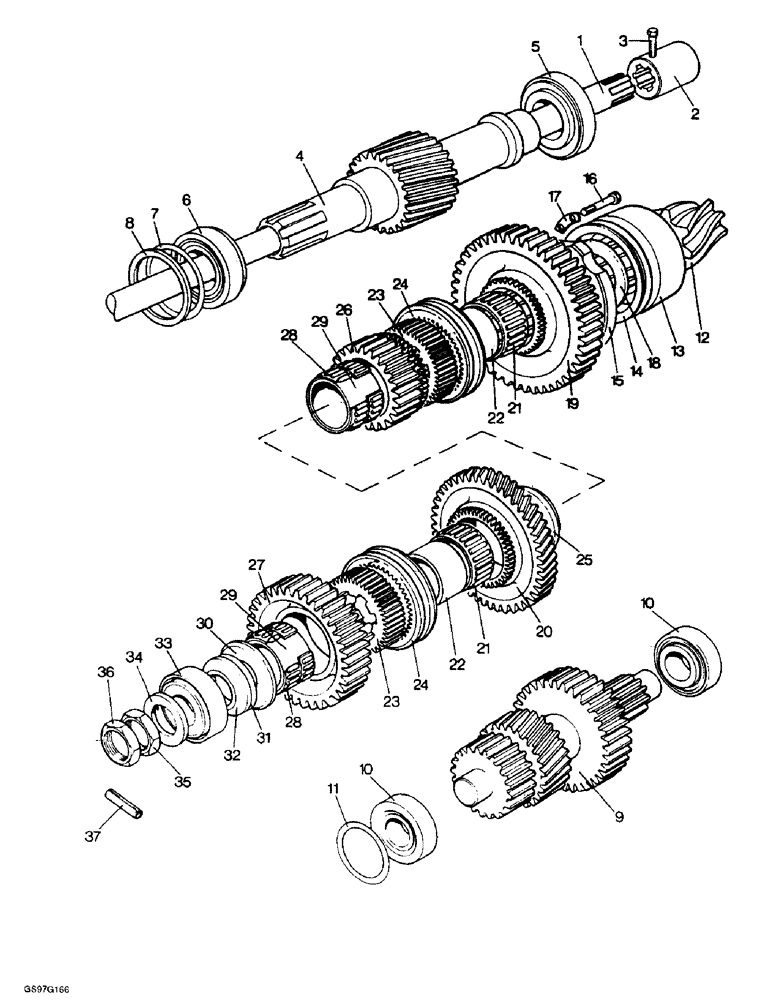

Запчасти Case IH 1212 (6-54) - SHAFTS AND GEARS, RANGE GEARBOX, 1212, 1212Q, 1212G AND 1212SK TRACTORS (06) - POWER TRAIN

1

K915583

PTO

SHAFT-PTO cardan, multi-speed PTO

1шт.

1

K956320

SHAFT

PTO cardan, reversible shaft PTO

1шт.

2

K89181

COUPLING, BREAK AWAY

SLEEVE

1шт.

3

13-430

BOLT,Hex, 1/4" - 20 x 1-7/8", Gr 5

hex, 1/4 NC x 1-7/8 inch (Replaces bolt K600009)

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut K607440) 1/4"-20, GB

1шт.

4

K928489

DRIVE SHAFT

1шт.

5

K620117

ROLLER

BEARING tapered roller

1шт.

6

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

tapered roller (Replaces bearing K19186)

1шт.

B17220

CUP,83.06mm OD x 19.11mm W

SEAL oil, axle, used with bearing ST2118

1шт.

7

K626254

SHIM,.002" Thk

1шт.

7

K626255

SHIM,.005" Thk

1шт.

7

K626256

SHIM,.015" Thk

1шт.

7

K626257

SHIM,.030" Thk

1шт.

8

K940603

BUSHING

SPACER distance

1шт.

9

K928317

SHAFT

lay

1шт.

10

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

tapered

2шт.

11

K928485

SHIM

0.002 inch

1шт.

11

K928486

SHIM

0.005 inch

1шт.

11

K928487

SHIM

0.015 inch

1шт.

11

K928488

SHIM

0.030 inch

1шт.

12

K962894

GEAR-SET

PINION bevel, includes spiral gear

1шт.

13

K620062

BEARING, ROLLER

tapered, no longer available, order cup 107577R1 and bearing 107576R91, Ref. 40 and 41 on Figure 6-54

1шт.

14

K910457

SHIM,.002" Thk

1шт.

14

K910456

SHIM,.005" Thk

No longer available .005" Thk

1шт.

14

K910455

SHIM

0.015 inch

1шт.

14

K910454

SHIM,.030" Thk

1шт.

15

K917472

SUPPORT

PLATE, bearing, no longer available

1шт.

16

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT hex, 3/8 NC x 1-5/8 inch (Replaces bolt K600405)

6шт.

17

K626387

WASHER

tab

3шт.

18

K928637

COLLAR

bearing

1шт.

19

K916877

GEAR

first range, 46 tooth

1шт.

20

K928319

GEAR

reverse range, 43 tooth

1шт.

21

K620081

NEEDLE BEARING

BEARING needle roller

2шт.

22

K917103

BUSHING

bearing, short

2шт.

23

K928636

GEAR

CLUTCH fixed dog

2шт.

24

K917109

GEAR

CLUTCH sliding dog

2шт.

25

K928637

COLLAR

reverse range gear

1шт.

26

K916879

GEAR

third range, 24 tooth, no longer available

1шт.

27

K928634

GEAR

second range, 36 tooth

1шт.

28

K620080

NEEDLE BEARING

BEARING needle roller

4шт.

29

K917104

BUSHING

bearing, long

2шт.

30

K917106

COLLAR

bearing

1шт.

31

K943058

SHIM

0.002 inch

1шт.

31

K943059

SHIM

0.005 inch

1шт.

31

K943060

SHIM

0.015 inch

1шт.

31

K943061

SHIM

0.030 inch

1шт.

32

K928641

BUSHING

SPACER bearing

1шт.

33

K620061

BEARING, ROLLER

tapered roller, no longer available, order cup 167608R1 and bearing 197609R91, Ref. 38 and 39

1шт.

34

K14687

WASHER

flat, 1-1/8 inch

1шт.

35

K623317

LOCK NUT

left-hand, 1-1/8 BSF

1шт.

36

K622805

LOCK NUT

lock, left-hand, 1-1/8 BSF

1шт.

37

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, (Replaces pin K623885) 3/16" x 1 1/2", Slotted

1шт.

38

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

tapered roller, not shown

1шт.

39

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP, Tapered roller, not shown

1шт.

40

107576R91

ROLLER BEARING,2" ID x 4.125" OD x 1.375"

tapered rolle, not shown

1шт.

41

107577R1

BEARING, CUP

tapered roller bearing, not shown

1шт.
