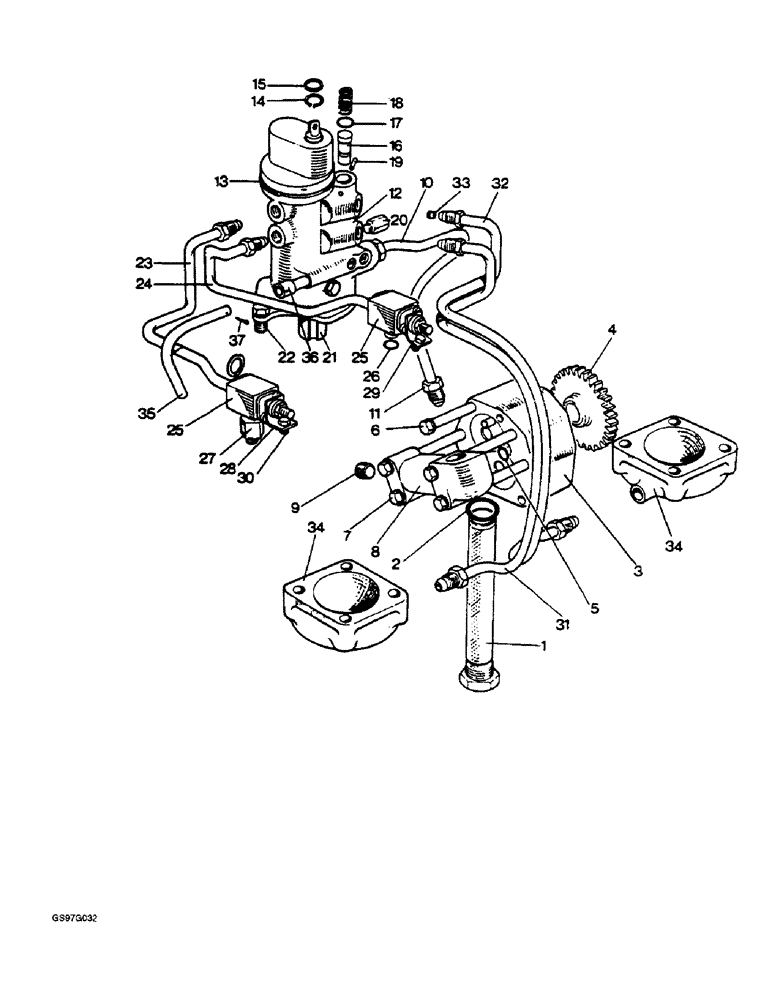

Запчасти Case IH 1212 (6-53A) - CONTROL VALVES, PUMP AND PIPES, 1212, 1212G, 1212Q AND 1212SK TRACTORS (06) - POWER TRAIN

1

K205927

FILTER

pump inlet (Replaces filter K942039)

1шт.

2

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring K24555) -116, 90 Duro, .737" ID x .103" Thk

1шт.

K11120

SEALING WASHER

WASHER sealing, 1 inch

1шт.

3

K963524

PUMP

ASSEMBLY control, Includes Ref. 4, Kit's, Key, Nut, and O-ring

1шт.

K962993

SEALING RING

O-ring

1шт.

K962992

ROTOR

KIT, rotor and bearing

1шт.

4

K928670

GEAR

23 tooth

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(Replaces key K19604) #5, 1/8" x 5/8"

1шт.

K617303

LOCK NUT

Nyloc, 7/16 inch NF

1шт.

5

K623714

O-RING,0.612" ID x 0.818" OD x 0.103"

5/8 inch ID

3шт.

6

K600218

BOLT

hex, 5/16 NC x 3-1/4 inch

2шт.

7

K600223

BOLT

hex, 5/16 NC x 4-1/2 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

6шт.

8

K923653

CONNECTOR, ELEC

pump outlet

1шт.

9

K619539

PLUG

3/4 NF x 5/16 inch

1шт.

10

K923660

PIPE

, Serial Range: connector-valve

1шт.

K11904

FERRULE

SPACER, 1/2 inch

2шт.

11

K617953

TUBE NUT

tubing, 3/4 inch NF

2шт.

12

K923151

VALVE

ASSEMBLY control, Start Serial: 11151506

1шт.

12

K923150

NO LONGER SERVICED

VALVE ASSEMBLY control, Serial Range: -11151506

1шт.

13

K86503

O-RING,0.21" Thk x 2.35" ID, -332, Cl 5, 75 Duro

2-5/16 inch ID

1шт.

14

K621761

RING, SNAP

7/8 inch ID

2шт.

15

K623443

OIL SEAL

oil, 1/2 x 7/8 x 3/16 inch

2шт.

16

K953222

PISTON

relief valve, serial number 11151506 and after

1шт.

16

K918743

PISTON

relief valve, Serial Range: -11151506

1шт.

17

K625400

O-RING,0.07" Thk x 0.239" ID

1/4 inch ID, Serial Range: -11151506

1шт.

18

K625206

SPRING

relief valve

1шт.

K626743

SHIM

0.020 inch

1шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

2шт.

19

K15439

PIN

dowel, 3/16 x 1-1/8 inch

1шт.

20

K623847

PLUG

special, 1/8 BSP

1шт.

K16732

WASHER

copper, 3/8 inch

1шт.

21

K918741

SPOOL

STOP

1шт.

22

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Valve to gearbox Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

valve to gearbox (Replaces washer K19482) 3/8"

2шт.

23

K929696

CONNECTOR, ELEC

PIPE front sequence valve

1шт.

24

K929697

CONNECTOR, ELEC

PIPE rear sequence valve

1шт.

K622401

RING

SPACER, 5/16 inch

2шт.

K617951

TUBE NUT

NUT tubing, 1/2 inch NF

2шт.

25

K963539

VALVE

sequence, without pipe

2шт.

K626460

SEALING WASHER

WASHER sealing

2шт.

26

K24554

O-RING

3/8 inch ID

2шт.

27

K929690

ADAPTER

7/16 inch NF, Serial Range: -11157069

1шт.

K626522

SEALING WASHER

sealing, 7/16 inch, Serial Range: -11157069

1шт.

28

K940535

PLATE

retaining, front sequence valve

1шт.

29

K940534

PLATE

retaining, rear sequence valve

1шт.

30

K602700

SCREW,1/4" - 20 x 3/8"

set, 1/4 NC x 3/8 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

2шт.

31

K929855

PIPE

front brake band cylinder

1шт.

32

K929856

PIPE

rear brake band cylinder

1шт.

33

K943460

PLUG

restrictor, brake pipes

2шт.

K622401

RING

SPACER, 5/16 inch

4шт.

K617951

TUBE NUT

NUT tubing, 1/2 inch NF

4шт.

34

K963538

BRAKE

CYLINDER AND PISTON, brake bands

2шт.

35

K928687

PIPE

front unit lubrication

1шт.

36

K942700

PIPE,0.375" OD x 2.25" L

CONNECTOR, valve to pipe

1шт.

37

K19523

PIN

split, 1/16 x 3/4 inch

1шт.
