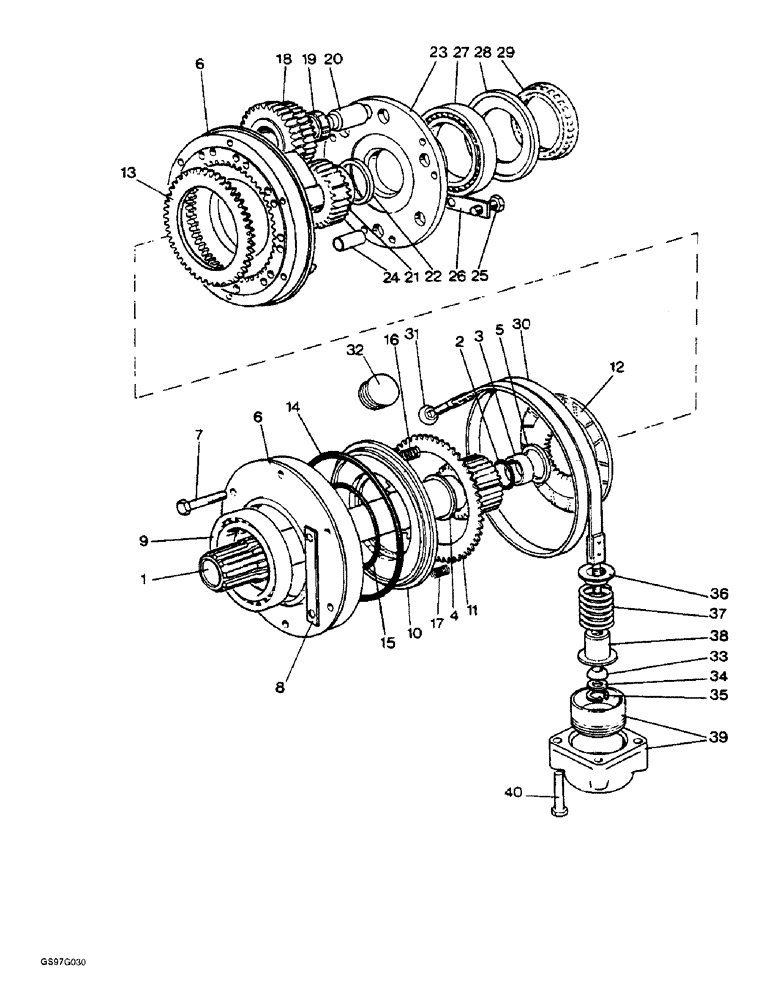

Запчасти Case IH 1212 (6-50) - FRONT PLANETARY UNIT, 1212, 1212Q, 1212G AND 1212SK TRACTORS (06) - POWER TRAIN

1

K916870

CLUTCH

DRIVESHAFT

1шт.

2

K262744

RING

sealing (Replaces ring K628123)

1шт.

3

K917184

BUSHING

driveshaft, no longer available

1шт.

4

K908509

WASHER

thrust, front

1шт.

5

K917185

WASHER

thrust, inner

1шт.

6

K917828

CARRIER

CYLINDER ASSEMBLY, carrier and clutch, Includes: Ref. 7 and 8

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

(Replaces bolt K600207) Hex, 5/16"-18 x 1 3/4", G5

6шт.

8

K626836

HOSE

WASHER tab

3шт.

9

K620082

BEARING, BALL

1шт.

10

K929781

PISTON

clutch cylinder

1шт.

K262537

CLUTCH PACK

KIT, clutch plate, selective assembly (Replaces kit K963593), Includes Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE clutch, steel, order kit

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE clutch, grooved bronze faces, order kit

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE backing, order kit

1шт.

14

238-5441

O-RING,0.275" Thk x 6.975" ID, -441, Cl 5, 75 Duro

7 ID x 1/4 inch wide (Replaces O-ring K623576)

1шт.

15

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

(Replaces O-ring K623575) -345, 70 Duro, 3.975" ID x .210" Thk

1шт.

16

K929779

SPRING

compression, inner

6шт.

17

K13507

SPRING

compression, outer

18шт.

18

K940291

GEAR

planet, 41/30 tooth, set of three (Replaces gear K963526)

1шт.

19

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

needle roller (Replaces bearing K620724)

6шт.

20

K940289

PIN

bearing

3шт.

21

K916872

GEAR

sun, no longer available

1шт.

22

K917186

WASHER

thrust, rear

1шт.

23

K207897

COVER

end, carrier (Replaces cover K917831)

1шт.

24

S65037

DOWEL

PIN, 5/8 x 1-1/4 inch (Replaces pin K621808)

3шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch (Replaces setscrew K602904)

6шт.

26

K626388

WASHER

tab

3шт.

27

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

ball

1шт.

28

K917834

PLATE

abutment

1шт.

29

K210447

BEARING

WHEEL free (Replaces wheel K917835)

1шт.

30

K943409

BRAKE BAND

brake, 3-3/16 - 3-5/16 inch

1шт.

31

K940064

WASHER

conical, 3/8 inch

1шт.

K607377

LOCK NUT

hex, 3/8 inch NC

1шт.

32

K623831

PLUG

special, 1 inch BSP, tractor serial number 11152576 and after

1шт.

353-22

PLUG,Cap, 1.282" OD

CAPLUG plastic, tractor serial number 11152576 and after

1шт.

K914883

SCREW

adjusting, 5/16 NC, tractor serial numbers prior to 11152576, no longer available

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

Tractor serial numbers prior to 11152576 Jam, 5/16"-18, G5

1шт.

32

K944621

STOP

PLUG special, 1 inch BSP, tractor serial numbers, Serial Range: prior-11152576

1шт.

K628091

PLUG

plastic, 13/16 inch ID, tractor serial numbers prior to 11152576, no longer available

1шт.

33

K917590

WASHER

spherical, 3/8 inch, no longer available

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking (Replaces nut K607302) 3/8"-16, GB

1шт.

34

K626314

WASHER

flat, 7/16 inch

1шт.

35

100-2187

SNAP RING,0.875", Int, #87

Ring, Snap, (Replaces K621761) 0.875", Int, #87

1шт.

36

K940346

STOP

brake band

1шт.

37

K623256

SPRING cylinder and piston

1шт.

38

K917591

SLEEVE

cylinder and piston, no longer available

1шт.

39

K963538

BRAKE

CYLINDER AND PISTON, brake band, no longer available

1шт.

40

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cylinder to spacer Hex, 5/16"-18 x 2", G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinder to spacer 5/16"

4шт.

K626682

WASHER

cylinder to spacer, flat, 5/16 inch

1шт.
