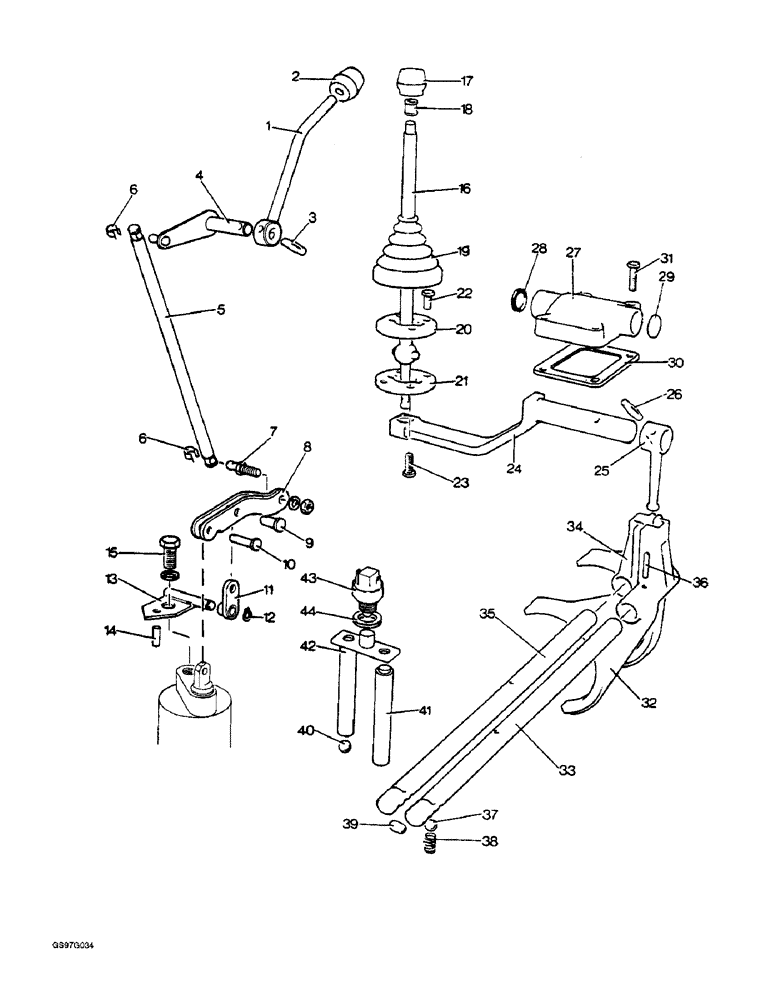

Запчасти Case IH 1212 (6-46) - GEAR SHIFT LEVERS, 1212Q AND 1212SK TRACTORS FOR EUROPE ONLY (06) - POWER TRAIN

1

K950312

GEAR

LEVER, Hydra-Shift, no longer available

1шт.

2

K950493

KNOB

Hydra-Shift lever

1шт.

3

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, (Replaces pin K623718) 3/16" x 1", Slotted

1шт.

4

K950311

SHAFT

LEVER, includes spindle, no longer available

1шт.

5

K964125

OIL SEAL

ROD connecting (Replaces rod K950310)

1шт.

6

K943448

SPRING

CLIP

2шт.

7

K621904

BALL JOINT

END, 1/4 NF

1шт.

25-114

NUT,1/4"-28, G5

hex, 1/4 inch NF (Replaces nut K617000)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

8

K964101

PLUG

LEVER operating (Replaces lever K950309)

1шт.

9

K625957

PIN

clevis, 3/16 x 3/4 inch, no longer available

1шт.

K626310

WASHER

flat, 3/16 inch, no longer available

1шт.

K19520

PIN

cotter, 1/16 x 3/8 inch

1шт.

10

K625953

PIN

clevis, 1/4 x 3/4 inch

1шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

1шт.

K19520

PIN

cotter, 1/16 x 3/8 inch

1шт.

11

K952627

LINK

pivot, no longer available

1шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

1шт.

12

100-1125

SNAP RING,#25, Ext

Ring, Snap, (Replaces ring K621500) #25, Ext

1шт.

13

K964047

PLATE pivot (Replaces plate K950307)

1шт.

14

38-11208

LOCK PIN,3/16" x 1/2", Slotted

Pin, (Replaces pin K623886) 3/16" x 1/2", Slotted

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt K602902) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

16

K955595

SELECTOR

LEVER range, used with tractor serial number 11158600 and after, no longer available

1шт.

16

K950696

SELECTOR

LEVER range, used with tractors prior to serial number 11158600, no longer available

1шт.

17

K950690

BALL KNOB

range lever

1шт.

18

D38662

RING

retaining (Replaces ring K628474)

1шт.

19

K950494

RUBBER

GAITER range lever

1шт.

20

K950490

BALL

HOUSING, upper, no longer available

1шт.

21

K950489

BALL

HOUSING, lower, no longer available

1шт.

22

K613988

SCREW

set, No. 10 NF x 3/4 inch

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

1шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Replaces screw K602737) Hex, 1/4"-20 x 1", G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

24

K950414

SELECTOR

SHAFT, no longer available

1шт.

25

K950624

SELECTOR

LEVER, shaft, no longer available

1шт.

26

38-32022

PIN,5/16" x 1 3/8", Coiled

roll, 5/16 x 1-1/2 inch (Replaces pin K623775)

1шт.

27

K950243

HOUSING

selector shaft

1шт.

28

K623630

SEAL

oil, 7/8 x 1-1/8 x 1/8 inch

1шт.

29

41-16

PLUG,Exp, 1"

expansion, housing (Replaces plug K623810)

1шт.

30

K950543

GASKET,0.2mm Thk

housing to gearbox cover

1шт.

31

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, housing to gearbox cover, 5/16 NC x 1-1/2 inch (Replaces bolt K602809)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , housing to gearbox cover (Replaces washer K19481) 5/16"

4шт.

32

K917217

SELECTOR

FORK, first and third gears

1шт.

33

K917216

SELECTOR

ROD, first and third gears

1шт.

34

K917219

SELECTOR

FORK, second and reverse gears

1шт.

35

K917218

SELECTOR

ROD, second and reverse gears

1шт.

36

K623887

PIN,5.21mm OD x 25.4mm L

3/16 x 1-1/8 inch (Replaces pin K623748)

2шт.

37

K13506

BALL

steel, 3/8 inch

2шт.

38

K13507

SPRING

detent

1шт.

39

K30430

LOCKING DEVICE

PLUNGER gear lock

1шт.

40

K13506

BALL

steel, 3/8 inch

2шт.

41

K945208

PLUNGER

safety switch, no longer available

1шт.

42

K945204

PLUNGER

PLATE, includes plunger

1шт.

43

K262714

SWITCH

safety, starter (Replaces switches K940288 and K200652)

1шт.

44

K626895

SHIM,.002" Thk

1шт.

44

K626858

SHIM,.005" Thk

1шт.

44

K626894

SHIM,.010" Thk

1шт.
