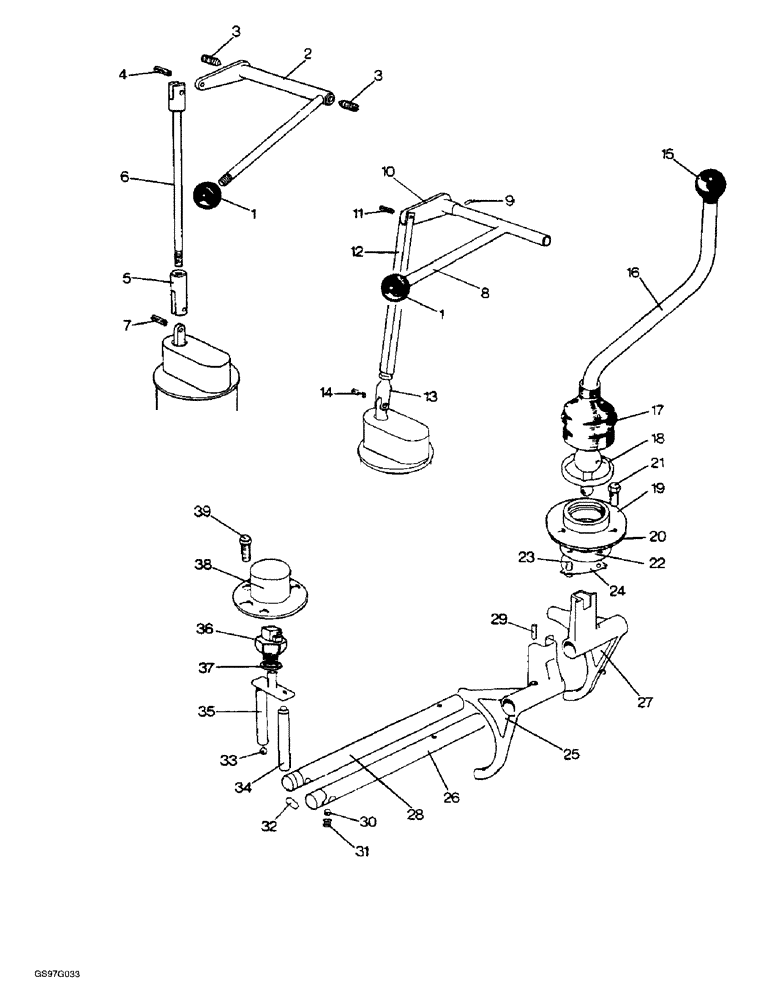

Запчасти Case IH 1212 (6-44) - GEAR SHIFT LEVERS, 1212 AND 1212G TRACTORS (06) - POWER TRAIN

1

K929750

KNOB

Hydra-Shift lever

1шт.

2

K951104

GEAR

LEVER, Hydra-Shift, tractor serial number 11158133 and after

1шт.

3

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

lever pivot, 3/8 NC, tractor serial number 11158133 and after

2шт.

B90397

NUT

lock, 3/8 inch NC, tractor serial number 11158133 and after (Replaces nut K607052)

2шт.

4

38-11210

LOCK PIN,3/16" x 5/8", Slotted

Tractor S/N 11158133 and after (Replaces pin K623884) 3/16" x 5/8", Slotted

1шт.

5

K951108

FORK

END, 5/16 NF, tractor serial number 11158133 and after, no longer available

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

hex jam, 5/16 inch NF, tractor serial number 11158133 and after (Replaces nut K617051)

1шт.

6

K951109

ROD

5/16 inch NF, tractor serial number 11158133 and after, no longer available

1шт.

7

K951112

PIN

rod to valve spool, 3/16 x 1 inch, tractor serial number 11158133 and after

1шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Tractor S/N 11158133 and after (Replaces pin K19520) 1/16" x 1/2"

2шт.

8

K929743

GEAR

LEVER, Hydra-Shift, tractor serial numbers, Serial Range: prior-11158133

1шт.

9

K623722

PIN

5/32 x 1 inch, tractor serial numbers, Serial Range: prior-11158133

1шт.

10

K952467

LEVER

70 mm, tractor serial numbers prior to 11158133 (Replaces 48 mm lever K929747)

1шт.

11

38-11210

LOCK PIN,3/16" x 5/8", Slotted

Tractor S/N's prior to 11158133 (Replaces pin K623884) 3/16" x 5/8", Slotted

1шт.

12

K965002

GEAR

ROD connecting, tractor serial numbers prior to 11158133 (Replaces connecting rod K929755)

1шт.

13

K919274

FORK

END, 5/16 inch NF, tractor serial numbers, Serial Range: prior-11158133

1шт.

K617051

NUT

hex, 5/16 inch NF, tractor serial numbers, Serial Range: prior-11158133

1шт.

14

K919275

PIN

fork end, tractor serial numbers, Serial Range: prior-11158133

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Tractor S/N's prior to 11158133 (Replaces pin K19520) 1/16" x 1/2"

2шт.

15

K943366

KNOB

range lever, no longer available

1шт.

16

K942796

SELECTOR

LEVER range, first, second, third and reverse gears, no longer available

1шт.

17

K929631

BOOT

EXCLUDER dirt

1шт.

18

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable, Dirt excluder, Adjustable (Replaces clip K621957) #28, 1.31/2.25 Type F Worm

1шт.

19

K929630

HOUSING

ball

1шт.

20

K901835

GASKET

ball housing

1шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Replaces screw K602705) Hex, 1/4"-20 x 1", G5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

3шт.

22

K903074

SUPPORT

PLATE

1шт.

23

163-18

SCREW,Hex, #10 - 24 x 3/8"

machine, hex head, No. 10 NC x 3/8 inch (Replaces screw K690456)

3шт.

24

K904386

WASHER

tab

1шт.

25

K917217

SELECTOR

FORK, first and third

1шт.

26

K917216

SELECTOR

ROD, first and third

1шт.

27

K917219

SELECTOR

FORK, second and reverse

1шт.

28

K917218

SELECTOR

ROD, second and reverse

1шт.

29

K623887

PIN,5.21mm OD x 25.4mm L

3/16 x 1-1/8 inch (Replaces pin K623748)

2шт.

30

K13506

BALL

steel, 3/8 inch

2шт.

31

K13507

SPRING

detent

2шт.

32

K30430

LOCKING DEVICE

PLUNGER, range lock

1шт.

33

K13506

BALL

steel, 3/8 inch

2шт.

34

K945208

PLUNGER

safety switch, no longer available

1шт.

35

K945204

PLUNGER

PLATE, includes plunger

1шт.

36

K262714

SWITCH

safety, starter (Replaces switches K940288 and K200652)

1шт.

37

K626895

SHIM,.002" Thk

Switch to gearbox cover .002" Thk

1шт.

37

K626858

SHIM,.005" Thk

Switch to gearbox cover .005" Thk

1шт.

37

K626894

SHIM,.010" Thk

Switch to gearbox cover .010" Thk

1шт.

38

K940284

COVER

safety switch

1шт.

39

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Replaces screw K602734) Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

3шт.
