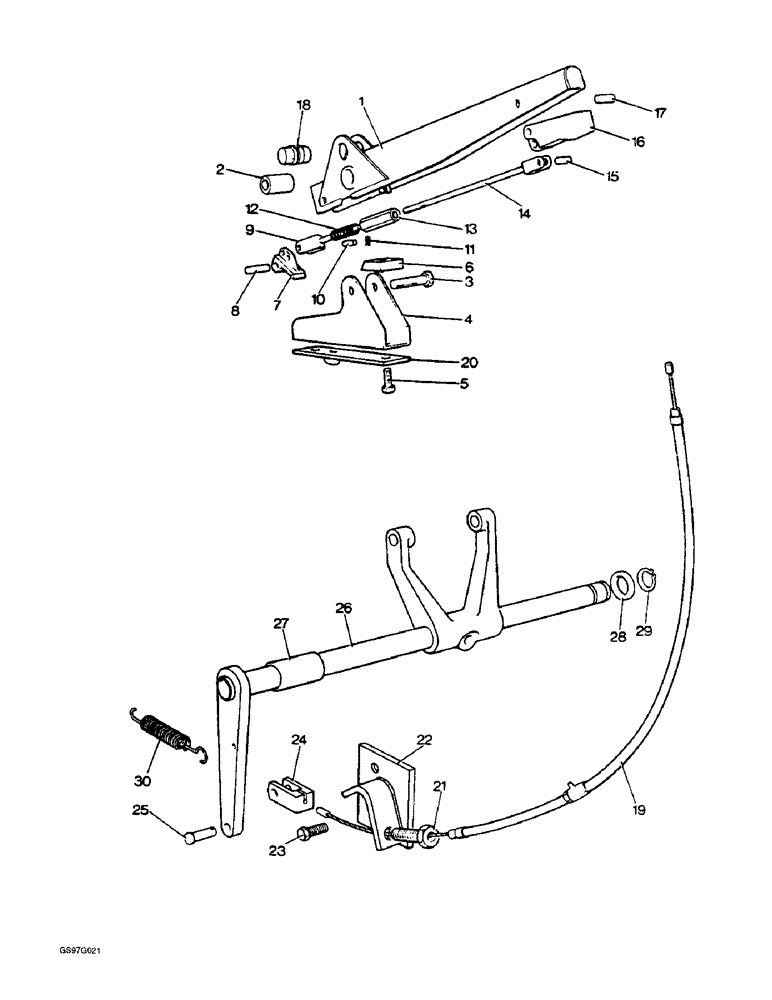

Запчасти Case IH 1212 (6-24) - HAND LEVER FOR POWER TAKE-OFF CLUTCH, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS FOR EUROPE (06) - POWER TRAIN

1

K951557

LEVER

hand, no longer available

1шт.

2

K627052

BUSHING

SPACER lever to support bracket

1шт.

3

113-2256

SCREW

BOLT hex, lever to support bracket, 3/8 NC x 1-7/8 inch

1шт.

492-11038

LOCK WASHER,3/8"

lever to support bracket (Replaces washer K19482) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

Lever to support bracket 3/8"-16, G5

1шт.

4

K951560

BRACKET

support, hand lever, no longer available

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, bracket to cab floor, 5/16 NC x 1 inch (Replaces setscrew K602847)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab floor (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, bracket to cab floor, 5/16 inch NC (Replaces nut K607044)

1шт.

6

K951561

BLOCK

retaining, bracket to cab floor, no longer available

1шт.

7

K949500

PAWL

pull rod, no longer available

1шт.

8

135-761

PIN, 1/4 x 7/8 inch (Replaces pin K623772)

1шт.

9

K950033

ROD

pull, No. 10 NF x 2-1/2 inch

1шт.

10

K949499

PIN

grooved, 3/16 x 1/2 inch

1шт.

11

K621572

RING, SNAP

CLIP spring, 3/16 inch

1шт.

12

K625099

SPRING

pull rod

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

13

K617286

NUT

SLEEVE adjusting, No. 10 NF, no longer available, order pull rod K950033, Ref. 9 and nut K617297

1шт.

13

K617297

NUT

long, spherical, 10-32 NF

1шт.

14

K950031

ROD

pull, No. 10 NF x 7 inch, no longer available

1шт.

15

K949498

PIN

3/16 x 1/2 inch

1шт.

16

K950026

LEVER

release

1шт.

17

138-2067

PIN,3/16" x 1", Coiled

(Replaces pin K623773) 3/16" x 1", Coiled

1шт.

18

K200089

PIN

connecting, cable, no longer available (Replaces pin K950029)

1шт.

19

K951570

CABLE

inner and outer, no longer available

1шт.

20

K951562

CABLE

PLATE anchor, cable, no longer available

1шт.

21

K949629

ADJUSTER

SCREW adjusting, 5/8 NC

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex jam, 5/8 inch NC (Replaces nut K607056)

1шт.

22

K950885

BRACKET

anchor, cable, no longer available

1шт.

23

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces K603003) Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

2шт.

24

K622207

FORK

END, cable

1шт.

25

K69984

SPLIT PIN/SAFETY PIN

clevis, 3/8 x 1-5/16 inch, no longer available, order snap ring K621562 and pin K950269 below

1шт.

K19472

WASHER

flat, 3/8 inch

1шт.

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (Replaces pin K623607) 3/32" x 3/4"

1шт.

K621562

RING, SNAP

1шт.

K950269

PIN

pivot

1шт.

26

K950889

CLUTCH

SHAFT AND LEVER cross, no longer available

1шт.

27

K627171

BUSHING

SPACER cross-shaft

1шт.

28

K626749

WASHER

Belleville, 1 inch

1шт.

29

K11128

CIRCLIP

1 inch

1шт.

30

K624953

SPRING

return, cross-shaft, no longer available

1шт.
