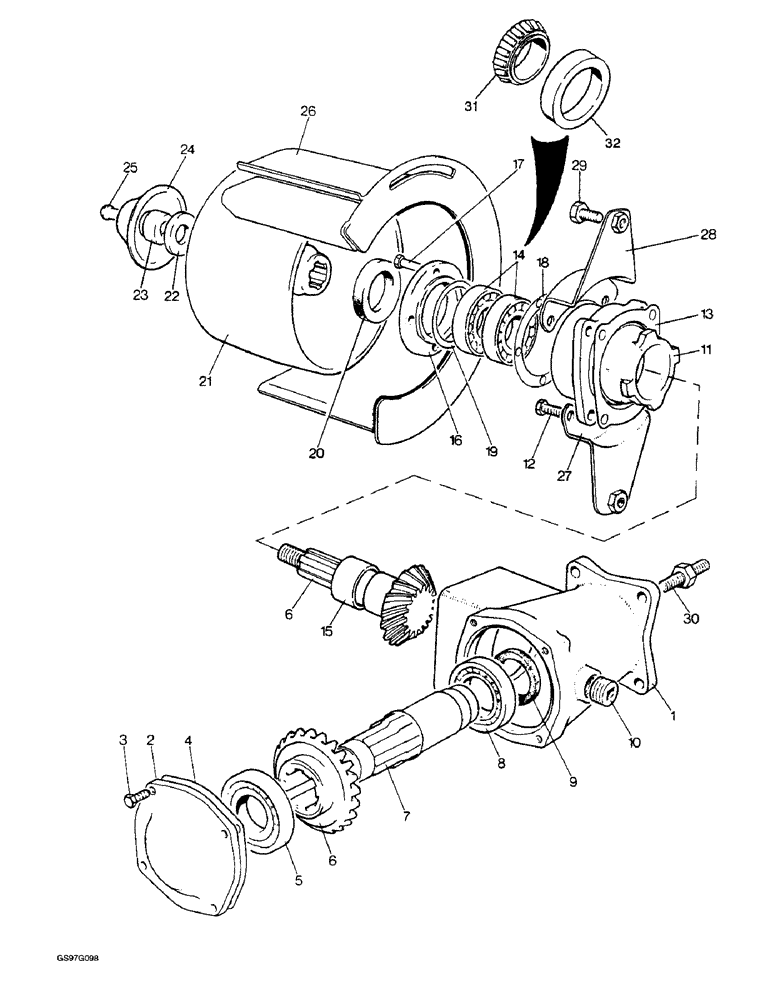

Запчасти Case IH 1212 (6-08) - BELT PULLEY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
K932269
PULLEY
ASSEMBLY belt, no longer available as an assembly, order components, Includes: Ref. 1 - 32
1шт.
1
K923299
HOUSING
pulley, no longer available
1шт.
2
K923300
COVER
end
1шт.
3
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
hex, 3/8 NC x 1 inch (Replaces setscrew K602904)
4шт.
492-11038
LOCK WASHER,3/8"
(Replaces washer K19482) 3/8"
4шт.
4
K923331
SHIM
0.007 inch, no longer available
1шт.
4
K923332
SHIM
0.005 inch
1шт.
4
K923333
SHIM
0.003 inch
1шт.
5
K19081
BALL BEARING
ball
1шт.
6
K964732
WHEEL
AND PINION bevel, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after, no longer available
1шт.
6
K962486
WHEEL
AND PINION bevel, tractor serial numbers prior to 11157412, not included in assembly K932269, no longer available
1шт.
7
K923302
SHAFT ASSY.
drive, no longer available
1шт.
9
K623423
SEAL
oil, 2-1/2 x 1-3/4 x 3/8 inch, no longer available
1шт.
10
K14518
PLUG
3/4 BSP
1шт.
11
K952674
HOUSING
bearing, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after, no longer available
1шт.
11
K923306
HOUSING
bearing, tractor serial numbers prior to 11157412, not included in assembly K932269
1шт.
12
413-722
BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5
hex, 7/16 NC x 1-3/8 inch (Replaces screw K603006)
4шт.
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, (Replaces washer K19483) 7/16"
4шт.
13
K89203
SHIM,.007" Thk
1шт.
13
K89202
SHIM,.005" Thk
No longer available .005" Thk
1шт.
13
K89201
SHIM,.003" Thk
1шт.
14
K620046
BEARING
tapered roller, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after, no longer available, order cup 618024R1 and bearing 618023R91, Ref. 31 and 32 on Figure 6-8
2шт.
14
K19165
BALL
BEARING, tractor serial numbers prior to 11157412, not included in assembly K932269
1шт.
14
K19055
ROLLER
BEARING, tractor serial numbers prior to 11157412, not included in assembly K932269
1шт.
15
K19166
NEEDLE
BEARING roller
1шт.
16
K948436
RETAINER
bearing, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after, no longer available
1шт.
16
K926332
RETAINER
bearing, tractor serial numbers prior to 11157412, not included in assembly K932269
1шт.
17
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
hex, 5/16 NC x 1 inch (Replaces screw K602805)
4шт.
18
K89206
JOINT
GASKET housing, no longer available
1шт.
19
K948435
SHIM
0.007 inch, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after
1шт.
19
K948434
SHIM
0.005 inch, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after
1шт.
19
K948433
SHIM
0.003 inch, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after
1шт.
19
K89210
SHIM,.007" Thk
Tractor S/N's prior to 11157412, Not included in assy K932269 .007" Thk
1шт.
19
K89209
SHIM,.005" Thk
Tractor S/N's prior to 11157412, Not included in assy K932269 .005" Thk
1шт.
19
K89208
SHIM,.003" Thk
Tractor S/N's prior to 11157412, Not included in assy K932269 .003" Thk
1шт.
20
K623436
OIL SEAL
oil, 2-3/4 x 1-15/16 x 3/8 inch
1шт.
21
K914944
BELT
PULLEY
1шт.
22
K19493
WASHER
special, 3/4 inch
1шт.
23
K617317
NUT
light hex, self-locking, 3/4 inch NF
1шт.
24
K912778
COVER
pulley nut
1шт.
25
K603925
SCREW,Pan, 1/4" - 20 x 5/8"
hex, 1/4 NC x 5/8 inch, no longer available
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, (Replaces washer K19480) 1/4"
1шт.
26
K952742
BELT
GUARD pulley, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after
1шт.
26
K907814
belt pulley, tractor serial numbers prior to 11157412, not included in assembly K932269, no longer available
1шт.
27
K907856
SUPPORT
BRACKET, pulley guard
1шт.
28
K952609
SUPPORT
BRACKET guard, used with 1210, 1212, 1210Q and 1212Q tractors with serial number 11157412 and after
1шт.
28
K907815
SUPPORT
BRACKET guard, tractor serial numbers prior to 11157412, not included in assembly K932269, no longer available
1шт.
29
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Guard to brackets Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
492-11038
LOCK WASHER,3/8"
guard to brackets (Replaces washer K19482) 3/8"
2шт.
K19472
WASHER
flat, guard to brackets, 3/8 inch
2шт.
30
K907546
STUD
special, housing to PTO unit, 7/16 NC x 3-3/8 inch
4шт.
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , Housing to PTO unit (Replaces washer K626344) 7/16"
4шт.
31
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
tapered roller
2шт.
32
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
Tapered roller
2шт.
Выбрано товаров: 57
