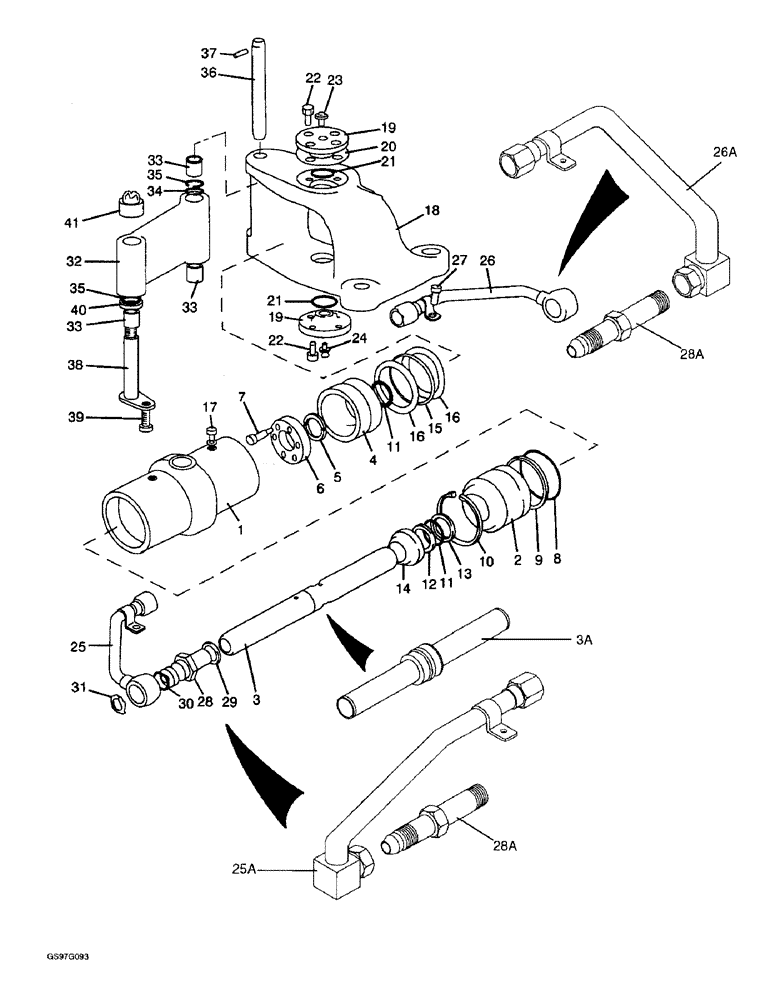

Запчасти Case IH 1212 (5-22) - STEERING CYLINDER, 1210, 1212, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS, INSTALLED BEHIND THE AXLE (05) - STEERING

K948609

CYLINDER

ASSEMBLY steering, no longer available, order cylinder K207771

1шт.

K207771

CYLINDER

steering, component parts shown below do not apply, Includes: Ref. 1 - 17

1шт.

1

K948602

TUBE

HOUSING steering cylinder

1шт.

2

K945883

SLEEVE

steering cylinder

2шт.

3

K948564

ROD

piston, no longer available, order rod K205660, Ref. 3A and kit K964943 below

1шт.

3a

K205660

ROD

ram

1шт.

4

K945880

PISTON

steering cylinder, used with rod K948564, no longer available, order rod K205660, Ref. 3A and kit K964943 below

1шт.

5

K945882

RING

split, halves, order rod K205660 and seal K964943

2шт.

5a

K964943

SEAL KIT

SEAL piston rod, not shown

1шт.

6

K945881

PLATE

locking, used with rod K948564, no longer available, order rod K205660, Ref. 3A and kit K964943 below

1шт.

7

K616504

SCREW

hex, 1/4 NF x 1 inch, no longer available

6шт.

K964943

SEAL KIT

seal, steering cylinder, Includes: Ref. 8 - 16 and Washer

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

(Replaces O-ring K24683) -230, 70 Duro, 2.484" ID x .139" Thk

2шт.

9

K691234

SEAL,66.04mm ID x 70.1mm OD x 1.57mm Thk

leather, 2-1/2 inch ID

2шт.

10

K24302

RING, SNAP

(Replaces clip K691718)

2шт.

11

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

(Replaces O-ring K15264) -216, 70 Duro, 1.109" ID x .139" Thk

3шт.

12

A15895

WASHER, LOCK

RING back-up, 1-1/8 inch ID

2шт.

13

K262744

RING

sealing, 1-1/8 inch ID

2шт.

14

K623458

WIPER SEAL

wiper, 1-1/8 inch ID

2шт.

15

238-5332

O-RING,0.21" Thk x 2.35" ID, -332, Cl 5, 75 Duro

(Replaces O-ring K86503) -332, 70 Duro, 2.35" ID x .210" Thk

1шт.

16

K628064

WASHER,60.33mm ID x 69.85mm OD x 1.83mm Thk

RING back-up, 2-3/8 inch ID

2шт.

K626450

WASHER

copper, 3/16 inch

2шт.

17

K613980

SCREW

vent, No. 10 NF, no longer available

2шт.

18

K948584

FORK

steering cylinder

1шт.

19

K948604

PIN

PEG ball (Replaces K48604)

2шт.

20

K945890

SHIM

0.002 inch

1шт.

20

K945891

SHIM

0.005 inch

1шт.

21

K623660

RING,21.97mm ID x 29.23mm OD x 3.63mm Thk

sealing, 7/8 inch ID

2шт.

22

K616717

SCREW

special, 5/16 NF

4шт.

23

K948621

VALVE

relief, 1/8 BSP

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch (Replaces fittting K12250)

1шт.

25

K945901

PIPE

right-hand, no longer available, order pipe K205929, Ref. 25A and union K626095, Ref. 28A

1шт.

25a

K205929

PIPE,7.531, 5.906" L

pressure, right-hand

1шт.

26

K945903

PIPE

left-hand, no longer available, order pipe K205928, Ref. 26A and union K626095, Ref. 28A

1шт.

26a

K205928

PIPE,8.25, 6.062" L

pressure, left-hand

1шт.

27

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

machine, No. 10 NC x 1/2 inch (Replaces screw K604477)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

28

K626070

FITTING

UNION special, 3/4 inch NF, used with pipe K945901, Ref. 25 and pipe K945903, Ref. 26

2шт.

28a

K626095

FITTING

UNION special

2шт.

29

K948565

WASHER

spacing, 0.185 inch

1шт.

29

K948566

WASHER

spacing, 0.189 inch

1шт.

29

K948567

WASHER

spacing, 0.195 inch

1шт.

29

K948643

WASHER

spacing, 0.201 inch

1шт.

30

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring K24555) -116, 90 Duro, .737" ID x .103" Thk

4шт.

31

K621476

RING, SNAP

CLIP circular, external, 24 mm

2шт.

32

K948540

LINK

ASSEMBLY pivot, Includes: Ref. 33

1шт.

33

K628741

BUSHING

link

4шт.

34

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

(Replaces O-ring K24676) -114, 90 Duro, .612" ID x .103" Thk

2шт.

35

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk (Replaces O-ring K623540)

4шт.

36

K948542

PIVOT PIN

pivot

1шт.

37

K690732

SPRING

PIN, 3/16 x 1-3/4 inch

1шт.

38

K948543

PIN

pivot

1шт.

39

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

(Replaces screw K602802) Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

40

K626921

WASHER

special, 5/8 inch

2шт.

41

231-2448

LOCK NUT,1/2"-20, GB

special, 1/2 inch NF

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

(Replaces pin K19537) 1/8" x 1 3/8"

1шт.
