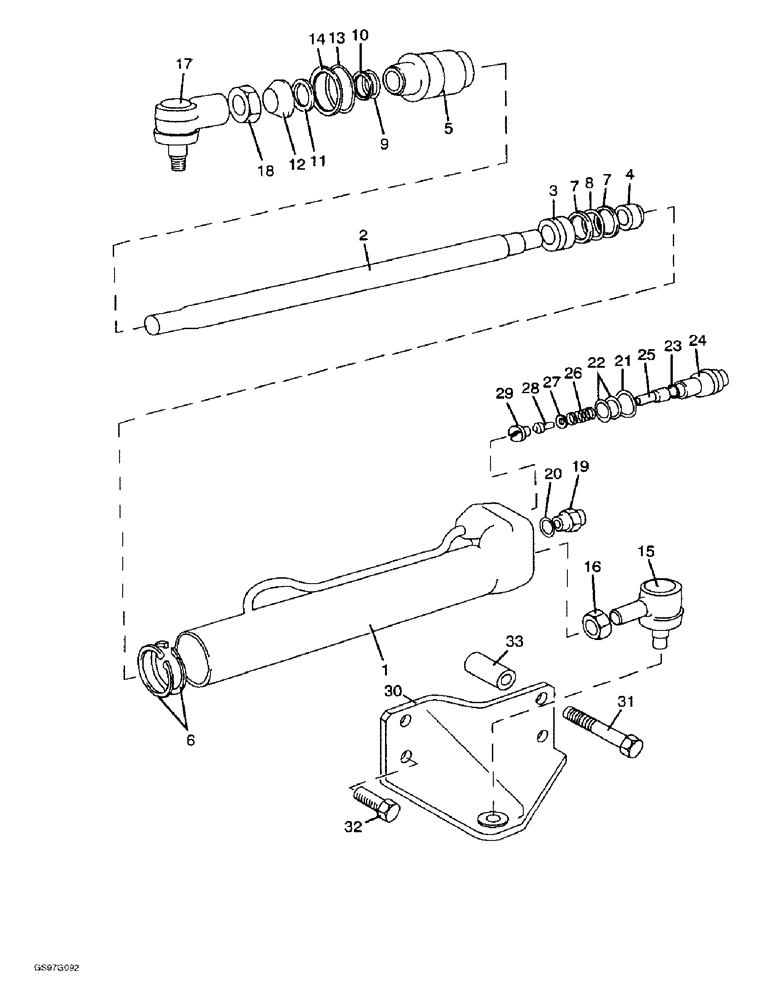

Запчасти Case IH 1212 (5-20) - STEERING CYLINDER, SIDE INSTALLATION (05) - STEERING

K945702

CYLINDER

ASSEMBLY steering, Includes: Ref. 1 - 18

1шт.

1

K945703

TUBE

HOUSING steering cylinder

1шт.

2

K929056

ROD

piston

1шт.

3

K925321

PISTON

steering cylinder

1шт.

4

K607446

NUT

Cleveloc, 3/4 inch NC

1шт.

5

K925322

SLEEVE

piston rod

1шт.

6

K11744

RING, SNAP

CLIP circular, internal, 1-7/8 inch, no longer available

2шт.

K962555

SEAL

seal, steering cylinder, Includes: Ref. 7 - 14

1шт.

7

K628912

WASHER

RING back-up, 1-1/2 inch ID

2шт.

8

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

-325, 70 Duro, 1.475" ID x .210" Thk (Replaces O-ring K24744)

1шт.

9

K16351

O-RING,3.53mm Thk x 24.99mm ID

1 inch ID (Replaces O-ring K623677)

1шт.

10

S7176

WASHER

RING back-up, 1 inch ID (Replaces ring K628911)

1шт.

11

K623762

O-RING,0.99" ID x 0.147" Width

sealing, 1 inch ID

1шт.

12

K691596

SEAL

scraper

1шт.

13

238-6223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1-3/4 ID x 1/8 inch wide (Replaces O-ring K24737)

1шт.

14

K24738

RING,41.07mm ID x 47.88mm OD x 1.83mm Thk

back-up, 1-5/8 inch ID

1шт.

15

K207721

BALL JOINT

SOCKET ASSEMBLY, housing (Replaces socket assembly K923766), Includes: Ref. 16, Excluder, and Nut

1шт.

K962155

CAP

EXCLUDER dirt

1шт.

131-377

LOCK NUT,5/8"-11, GC

Nyloc, 5/8 inch NF (Replaces nut K617306)

1шт.

16

K622500

LOCK NUT

lock, special, 3/4 inch

1шт.

17

K929057

BALL JOINT

SOCKET ASSEMBLY, piston rod, Includes: Ref. 18, Excluder, and Nut

1шт.

K962155

CAP

EXCLUDER dirt

1шт.

131-377

LOCK NUT,5/8"-11, GC

Nyloc, 5/8 inch NF

1шт.

18

K617289

LOCK NUT

lock, special, 7/8 inch

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss (Replaces union K626039)

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623591)

1шт.

K945714

VALVE

ASSEMBLY line, no longer available, Includes: Ref. 21 - 29

1шт.

K963550

SEALING RING

seal, line valve, no longer available as a kit, order components, Includes: Ref. 21 - 24

1шт.

21

K623663

O-RING,0.924" ID x 0.116" Width

15/16 inch ID

1шт.

22

K628850

O-RING,0.612" ID x 0.139" Width

9/16 inch ID

2шт.

23

K24544

O-RING, 3/8 inch ID

1шт.

24

K945758

CYLINDER

BODY valve (Replaces valve body K945571)

1шт.

25

K945567

SPRING

SUPPORT

1шт.

26

K625520

SPRING

line valve

1шт.

27

K945570

WASHER

abutment

1шт.

28

K945569

VALVE

PLUNGER

1шт.

29

K945568

VALVE

SEAT, no longer available

1шт.

30

K925342

BRACKET

anchor

1шт.

31

K601331

BOLT

hex, 5/8 NC x 5-1/4 inch, bracket to main frame

2шт.

32

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8 NC x 2-3/4 inch, bracket to main frame (Replaces setscrew K603313)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bracket to main frame (Replaces washer K19485) 5/8"

4шт.

33

K627095

BUSHING

SPACER bracket to main frame, 2-3/4 inch, used with 1210, 1212, 1210G and 1212G tractors, no longer available

1шт.

33

K627088

SPACER bracket to main frame, 2-1/8 inch, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors, no longer available

1шт.
