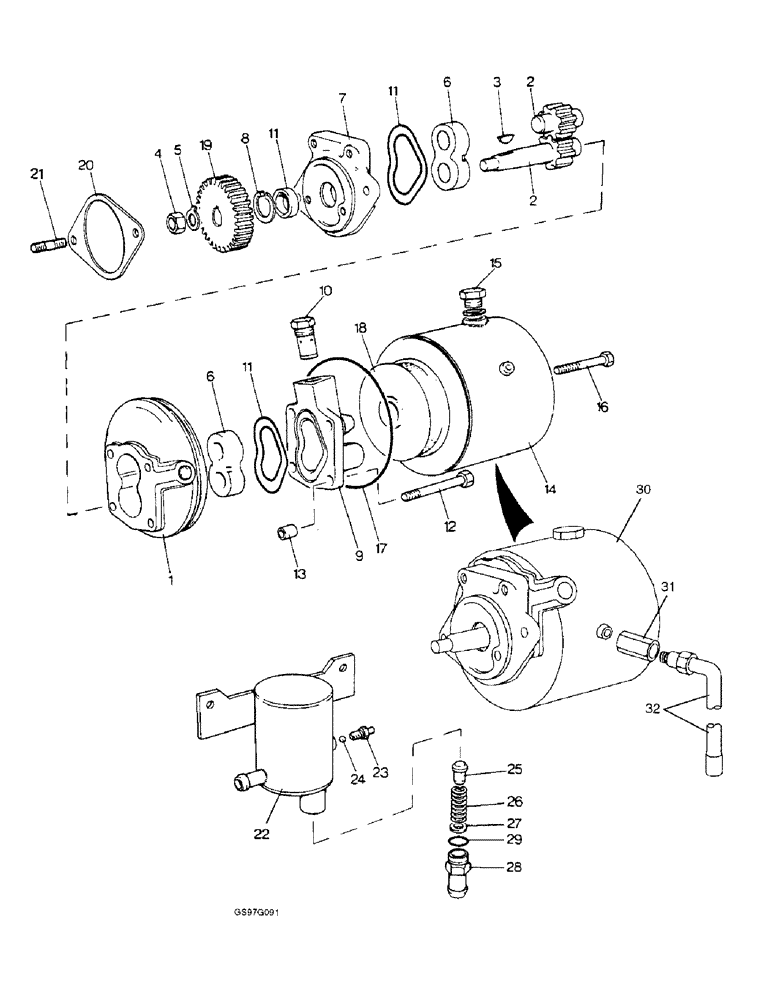

Запчасти Case IH 1212 (5-18) - STEERING PUMP AND RESERVOIR (05) - STEERING

1

K944944

PUMP

ASSEMBLY, includes reservoir, Plessey 550/1/17331, no longer available, order Ref. 30 - 37, Includes: Ref. 2 - 19

1шт.

K964815

GEAR

KIT rotor, no longer available as a kit, order components, Includes: Ref. 2 - 5

1шт.

2

K964934

GEAR

ROTOR pair, order pump assembly

1шт.

3

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(Replaces key K19604) #5, 1/8" x 5/8"

1шт.

4

425-157

JAM NUT,Jam, 7/16"-20, G5

(Replaces nut K617053) Jam, 7/16"-20, G5

1шт.

5

K626380

WASHER

tab

1шт.

6

K962189

BEARING

pair, order pump assembly

1шт.

7

K964925

FLANGE

mounting, no longer available

1шт.

8

K962097

RING, SNAP

CLIP circular, 13/16 inch ID, no longer available, order pump assembly

1шт.

9

K261642

FLANGE

COVER pump body (Replaces cover K964923)

1шт.

10

K261640

VALVE

relief, pre-set (Replaces valve K964932)

1шт.

11

K964935

SEAL

seal, includes oil seal and O-rings

1шт.

12

K965769

BOLT

hex, 3/8 NC x 3-1/8 inch, cover to body (Replaces bolt K964921)

4шт.

492-11038

LOCK WASHER,3/8"

cover to body (Replaces washer K19482) 3/8"

4шт.

13

K964920

PIN

DOWEL ring, Serial Range: cover-body

2шт.

14

K261063

RESERVOIR

steering pump (Replaces reservoir K964933)

1шт.

K260490

BREATHER

KIT, used with reservoir K261063

1шт.

15

K623825

PLUG

filler, 1/2 inch BSP, no longer available, order plug K623849, Ref. 15 and washer K626317

1шт.

K626769

WASHER

sealing, filler plug, used with plug K623825

1шт.

15

K623849

PLUG

flanged, 1/2 inch BSP

1шт.

K626317

WASHER

flat, aluminum, 27/32 inch, used with plug K623849

1шт.

16

K964930

BOLT

SCREW set, 5/16 NC x 2-1/4 inch

1шт.

K15498

SEALING WASHER

WASHER, 5/16 inch (Replaces washer K964928)

1шт.

17

K965217

RING

sealing, reservoir to pump (Replaces ring K964929)

1шт.

18

K964931

FILTER

ELEMENT includes sealing rings

1шт.

19

K945098

PINION

GEAR, 28 tooth

1шт.

20

K919729

GASKET,0.76mm Thk

, Serial Range: pump-engine

1шт.

21

K608161

STUD

5/16 NC x 1 inch, Serial Range: pump-engine

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pump to engine (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, pump to engine (Replaces nut K607001)

2шт.

K949703

RESERVOIR

ASSEMBLY steering pump, includes valve, no longer available, Includes: Ref. 22 - 29

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

22

K949704

RESERVOIR

steering pump, no longer available

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

23

K910104

SCREW

bleed, 1/8 BSP

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

24

K11286

BALL

steel, 5/16 inch

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

25

K949562

PLUNGER

valve

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

26

K24887

SPRING

valve plunger

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

27

K626922

SHIM,.030" Thk

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

28

K949561

CONNECTOR, ELEC

7/8 inch NF

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, (Replaces O-ring K623592)

1шт.

Used with 1210G, 1212G, 1210SkG and 1212SkG tractors.

1шт.

30

K957318

PUMP

AND RESERVOIR steering

1шт.

31

K204309

ADAPTER

CONNECTOR breather

1шт.

32

K204270

PIPE,0.312" OD x 20, 2" L

breather, reservoir to engine

1шт.

33

K302324

FILTER

breather, not shown

1шт.

34

K302478

BRACKET

breather, not shown

1шт.

35

K302479

BRACKET

breather, not shown

1шт.

36

825-1408

NUT,M8, Cl 8

Not shown M8, Cl 8

1шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Not shown M8

1шт.
