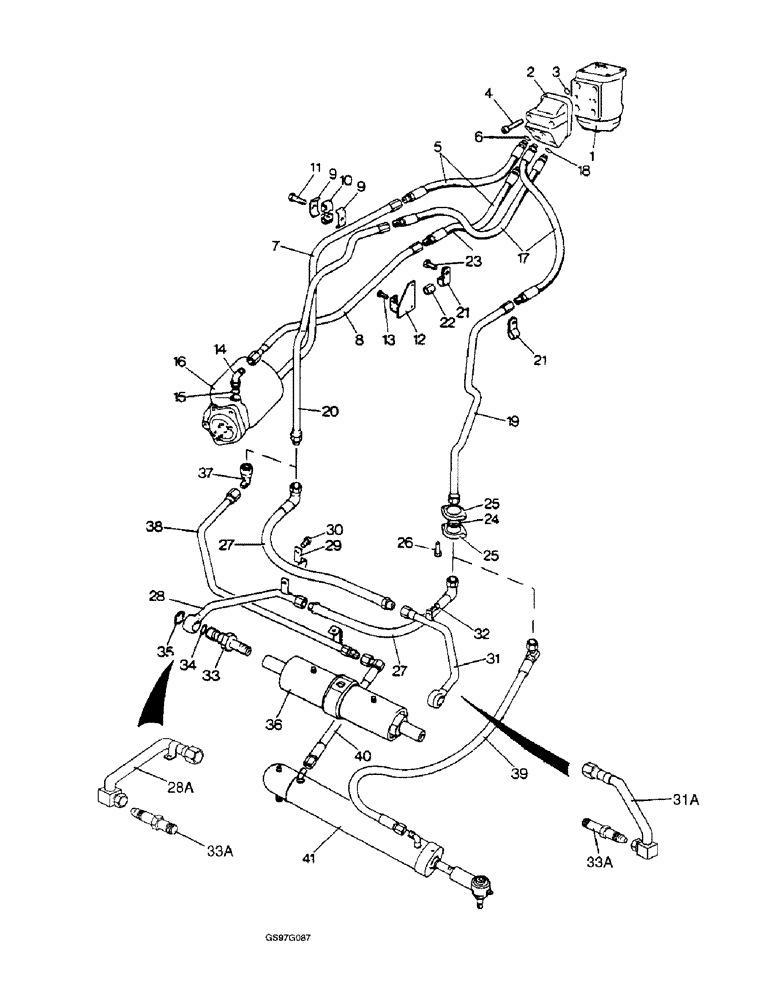

Запчасти Case IH 1212 (5-14) - HYDROSTATIC POWER STEERING SYSTEM, 1210Q, 1210Q 4WD, 1210SK, 1212Q & 1212SK TRACTORS FOR EUROPE ONLY (05) - STEERING

1

K946083

VALVE

steering, Orbitrol OSP 125, no longer available, order valve K207419 and adapter 218-5066

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

1

K924898

VALVE

steering, Orbitrol OSP 100

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

1

K207419

VALVE

steering, Orbitrol

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

2

K951096

FITTING

BLOCK connecting, no longer available

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

(Replaces O-ring K15028) -118, 90 Duro, .862" ID x .103" Thk

4шт.

4

K624683

SCREW

set, M10 x 50 mm, no longer available

2шт.

5

A19526

HOSE flexible, 3/4 NF x 19-1/2 inch (496 mm) long (Replaces pipe K951426)

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623589)

2шт.

7

K951984

PIPE

reservoir inlet, no longer available

1шт.

8

K951983

PIPE

pump outlet, no longer available

1шт.

K946125

TUBE

nylon, inlet and outlet pipes

2шт.

9

K951982

SHIM

CLAMP pipe

2шт.

10

K951993

SLEEVE

rubber

2шт.

11

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Replaces K600406) Hex, 3/8"-16 x 1 3/4", G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

12

K951994

BRACKET

support, clamp, no longer available

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces screw K602902) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

14

238-5105

ELBOW pump outlet, 90 degree, 9/16-18 inch flare x adjustable O-ring boss (Replaces elbow K622110), Includes: Ref. 15

1шт.

16

K944944

PUMP

ASSEMBLY steering, parts list Figure 5-18

1шт.

17

K952215

HOSE

PIPE flexible, 3/4 NF x 16-1/2 inch (419 mm) long, no longer available

2шт.

18

K623589

O-RING

5/8 inch ID

2шт.

19

K200628

PIPE

flexible, no longer available (Replaces pipe K951985)

1шт.

20

K951986

PIPE

flexible, no longer available

1шт.

21

K621717

CLIP

pipes

2шт.

22

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

nylon

2шт.

23

K602902

SCREW

set, 3/8 NC x 3/4 inch

2шт.

K19472

WASHER

flat, 3/8 inch

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

24

K628856

O-RING,0.649" ID x 0.25" Width

clamping plate, no longer available

2шт.

25

CASK945907

PLATE

clamping

4шт.

26

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch (Replaces screw K602704)

4шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

4шт.

27

K952959

HOSE

PIPE flexible, 3/4 NF x 17-7/8 inch (454 mm) long

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

28

K945901

PIPE

right-hand, no longer available, order pipe K205929, Ref. 28A and union K626095, Ref. 33A

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

28a

K205929

PIPE,7.531, 5.906" L

pressure, right-hand

1шт.

29

K952958

CLIP

flexible pipe, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Replaces screw K602803) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

31

K945903

PIPE

left-hand, no longer available, order pipe K205928, Ref. 31A and union K626095, Ref. 33A

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

31a

K205928

PIPE,8.25, 6.062" L

pressure, left-hand

1шт.

32

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

machine, No. 10 NC x 1/2 inch (Replaces screw K604477)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

33

K626070

FITTING

UNION special, 3/4 inch NF, used with pipes K945901 and K945903, Ref. 28 and 31

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

33a

K626095

FITTING

UNION special

2шт.

34

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring K24555) -116, 90 Duro, .737" ID x .103" Thk

4шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

35

K621476

RING, SNAP

CLIP circular, 24 mm, external

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

36

REF

INSTRUCTION

CYLINDER ASSEMBLY steering, parts list Figure 5-22

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

37

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare (Replaces elbow K622115)

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

38

K949727

PIPE

, Serial Range: elbow-flexible

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

39

K950818

PIPE

flexible, M18 - 3/4 NF x 30 inch (762 mm) long, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

40

K950819

PIPE

flexible, M18 - 3/4 NF x 10 inch (254 mm) long, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

41

K950325

CYLINDER

ASSEMBLY steering, parts list Figure 5-24

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (Replaces O-ring K623649)

1шт.
