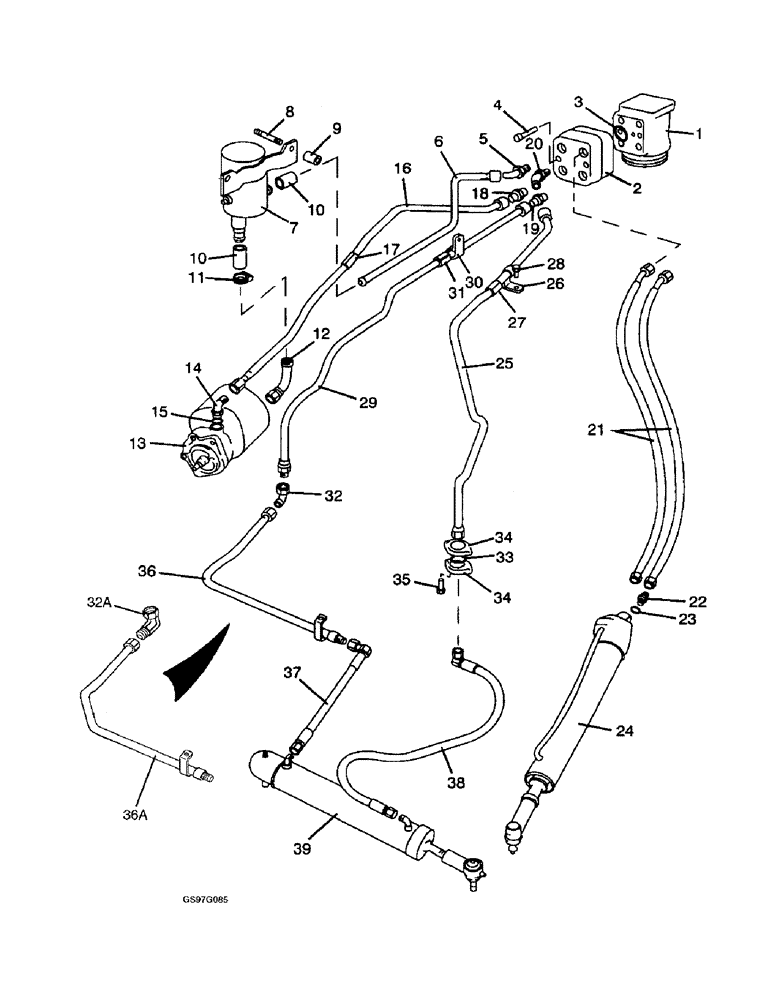

Запчасти Case IH 1212 (5-10) - HYDROSTATIC POWER STEERING SYSTEM (05) - STEERING

1

K946083

VALVE

steering, Orbitrol OSP 125, no longer available, order valve K207419 and adapter 218-5066

1шт.

Used with 1210G and 1212G tractors.

1шт.

1

K924898

VALVE

steering, Orbitrol OSP 100

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

1

K207419

VALVE

steering, Orbitrol

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

2

K948588

VALVE

BLOCK connecting, no longer available

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

(Replaces O-ring K15028) -118, 90 Duro, .862" ID x .103" Thk

4шт.

4

K940381

CAP

SCREW set, M10 x 40 mm, no longer available

2шт.

5

K617751

FITTING

ELBOW, 3/4 inch NF, no longer available

1шт.

6

K949733

PIPE

valve to reservoir, no longer available

1шт.

7

K949703

RESERVOIR

ASSEMBLY steering, parts list Figure 5-18

1шт.

8

K608299

STUD

3/8 NC x 3-1/4 inch

2шт.

9

K86372

BUSHING

SPACER distance, no longer available

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

2шт.

10

K924391

HOSE

5/8 x 2-1/2 inch (64 mm) long, cut from bulk hose 97252CX or A42610 below

2шт.

11

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clip K14679) #10, 0.56/1.06 Type F Worm

4шт.

12

K949700

PIPE

reservoir to pump, no longer available

1шт.

13

K944944

PUMP

ASSEMBLY steering, parts list Figure 5-18

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

pump outlet, 90 degree, 9/16-18 inch flare x adjustable O-ring boss (Replaces elbow K622110), Includes: Ref. 15

1шт.

15

K623469

O-RING

7/16 inch ID, no longer available

1шт.

16

K946084

PIPE

pump to steering valve, no longer available

1шт.

17

K946125

TUBE

SLEEVE nylon

3шт.

18

K62066

UNION, 7/8 NF - 1/2 BSP

1шт.

19

K690908

FITTING

UNION, 3/4 NF - 1/2 BSP, two used 1210G and 1212G tractors, one used with 1210G four-wheel drive tractors

1шт.

20

K617751

FITTING

ELBOW, 3/4 NF - 1/2 BSP

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

K15143

WASHER

copper, 3/4 inch

3шт.

21

K940262

HOSE

PIPE flexible, 3/4 NF x 34 inch (864 mm) long

2шт.

Used with 1210G and 1212G tractors.

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss (Replaces union K626039), Incl. Ref 23

1шт.

Used with 1210G and 1212G tractors.

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Used with 1210G and 1212G tractors.

1шт.

24

K945702

CYLINDER

ASSEMBLY steering, parts list Figure 5-20

1шт.

Used with 1210G and 1212G tractors.

1шт.

25

K949872

PIPE

steering valve to hose, no longer available

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

26

K621705

CLIP

pipe, no longer available

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

27

K628244

STRIP

rubber

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

28

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(Replaces screw K602901) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

280136

NUT,3/8"-16, G8

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

29

K949871

PIPE

steering valve to elbow, no longer available

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

30

K621704

CLIP

pipe, no longer available

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

97252CX

HOSE

bulk, 50 foot (15240 mm) long

1шт.

A46210

BRACKET

HOSE bulk, 50 foot (15240 mm) long

1шт.

31

K628244

STRIP

rubber

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

32

K622115

NUT

ELBOW, 3/4 inch NF, used with pipe K949727

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

32a

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

33

K628856

O-RING,0.649" ID x 0.25" Width

5/8 inch ID, no longer available

2шт.

Used with 1210G four-wheel drive tractors.

1шт.

34

K945907

RING, SNAP

clamp

4шт.

Used with 1210G four-wheel drive tractors.

1шт.

35

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch (Replaces screw K602704)

4шт.

Used with 1210G four-wheel drive tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

4шт.

Used with 1210G four-wheel drive tractors.

1шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

8шт.

Used with 1210G four-wheel drive tractors.

1шт.

36

K949726

PIPE

elbow to flexible pipe, no longer available, order pipe K949727, Ref. 36A and elbow 218-5230, Ref. 32A

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

36a

K949727

PIPE

ram feed

1шт.

37

K950819

PIPE

flexible, M18 - 3/4 NF x 10 inch (254 mm) long, no longer available

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

38

K950818

PIPE

flexible, M18 - 3/4 NF x 30 inch (762 mm) long, no longer available

1шт.

Used with 1210G four-wheel drive tractors.

1шт.

39

K950325

CYLINDER

ASSEMBLY, steering, parts list Figure 5-24

1шт.

Used with 1210G four-wheel drive tractors.

1шт.
