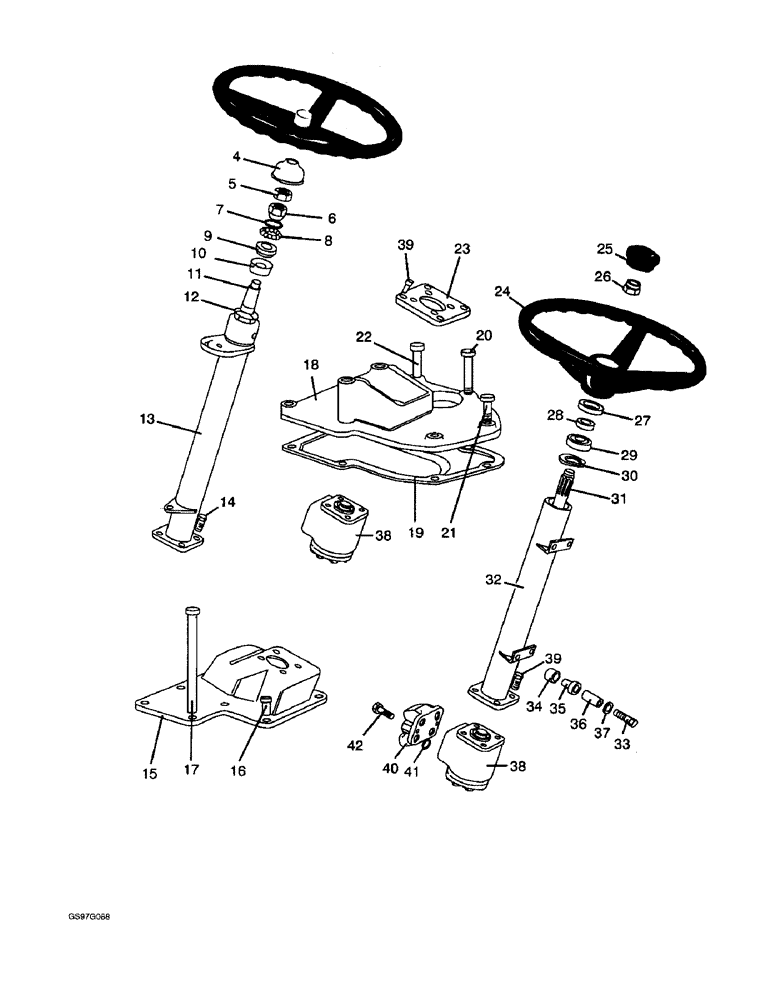

Запчасти Case IH 1212 (5-02) - STEERING COLUMN AND VALVE (05) - STEERING

1

K912634

HANDWHEEL

WHEEL steering, 16 inch, black, no longer available

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

2

129-881

NUT,Crown, 5/8"-11

dome, 5/8 inch NC (Replaces nut K905679)

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

3

K626671

WASHER

special, 5/8 inch

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(Replaces key K19608) #9, 3/16" x 3/4"

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

4

K923681

SEAL

EXCLUDER dirt

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

5

K924967

NUT

lock

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

6

K903463

BEARING CONE

BEARING tapered roller, adjustable

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

1-1/4 inch ID

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

8

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24 (Replaces ball K13506)

12шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

9

K903462

SPHERICAL BEARING

lower

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

10

K903461

SPACER

SEAT spherical

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

11

K925262

STEERING COLUMN

SHAFT 14-31/32 inch long plus a 7/16 inch knob (Replaces 19-1/2 inch shaft K925264)

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

12

K903469

PAD, RUBBER

BAFFLE

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

13

K929146

SUPPORT ASSY.

COLUMN steering

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

14

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex, 3/8 NC x 1-3/8 inch (Replaces bolt K600403)

4шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

Used with 1210, 1210G, 1210 4WD, 1210G 4WD, 1212 and 1212G tractors.

1шт.

15

K940357

SUPPORT

BRACKET, steering column, used with 1210, 1210G, 1210 4WD and 1210G 4WD tractors, no longer available

1шт.

16

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

hex, 1/2 NC x 1-1/8 inch, used with 1210, 1210G, 1210 4WD and 1210G 4WD tractors (Replaces setscrew K603105)

8шт.

17

K600833

BOLT

hex, 1/2 NC x 8-1/2 inch, used with 1210, 1210G, 1210 4WD and 1210G 4WD tractors, no longer available

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with 1210, 1210G, 1210 4WD and 1210G 4WD tractors (Replaces washer K19484) 1/2"

10шт.

18

K940116

SUPPORT

CASTING, steering column, used with 1212 and 1212G tractors

1шт.

19

K940136

GASKET

support casting, used with 1212 and 1212G tractors

1шт.

20

K600840

BOLT

hex, 1/2 NC x 10-1/4 inch, used with 1212 and 1212G tractors, no longer available

1шт.

21

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used with 1212 and 1212G tractors (Replaces bolt K600806) Hex, 1/2"-13 x 2", G5

7шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with 1212 and 1212G tractors (Replaces washer K19484) 1/2"

8шт.

22

K600836

BOLT

hex, 1/2 NC x 9-1/4 inch, used with 1212 and 1212G tractors

1шт.

K626686

WASHER

flat, 1/2 inch, used with 1212 and 1212G tractors

1шт.

23

K928118

SUPPORT

PLATE, steering column, used with 1212 and 1212G tractors

1шт.

24

K949446

HANDWHEEL

WHEEL steering, black, 15 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

25

K952274

CAP

hub, no longer available, order cap K262737 and sealing ring K691285

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

25

K262737

CAP

hub, steering

1шт.

K691285

SEAL

RING, 1-3/4 inch ID, used with hub cap K262737

1шт.

26

231-1448

NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC (Replaces nut K607304)

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

K626686

WASHER

flat, 1/2 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

27

K623467

SEAL

WASHER felt, 1 inch ID, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

28

K627103

BUSHING

SPACER distance

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

29

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball (Replaces bearing K620192)

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

30

K1191

CLIP circular, 1-5/8 inch ID

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

31

K951207

SHAFT

22 inch, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

32

K951204

SUPPORT

COLUMN steering, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

33

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

34

K627305

BUSHING

SPACER outer, no longer available

4шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

35

K950214

RUBBER

MOUNTING, no longer available

4шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

36

K627086

BUSHING

SPACER inner, no longer available

4шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

37

K626884

WASHER

special, 5/16 inch, no longer available

4шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

38

K946083

VALVE

steering, Orbitrol OSP 125, used with 1210, 1210G, 1212, 1212G, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors, no longer available, order valve K207419 and adapter 218-5066

1шт.

38

K924898

VALVE

steering, Orbitrol OSP 100, used with 1210 4WD, 1210G 4WD and 1210Q 4WD tractors

1шт.

38

K207419

VALVE

steering

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

39

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used with 1212, 1212G, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors (Replaces setscrew K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

used with 1212, 1212G, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors (Replaces washer K19482) 3/8"

4шт.

1500443C91

SEAL KIT

seal, steering valve (Replaces kit K962387)

1шт.

40

K951096

FITTING

BLOCK connecting

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

41

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

(Replaces O-ring K15028) -118, 90 Duro, .862" ID x .103" Thk

4шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.

42

K624683

SCREW

M10 x 50 mm, no longer available

2шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG, 1212SkG and 1210Q 4WD tractors.

1шт.
