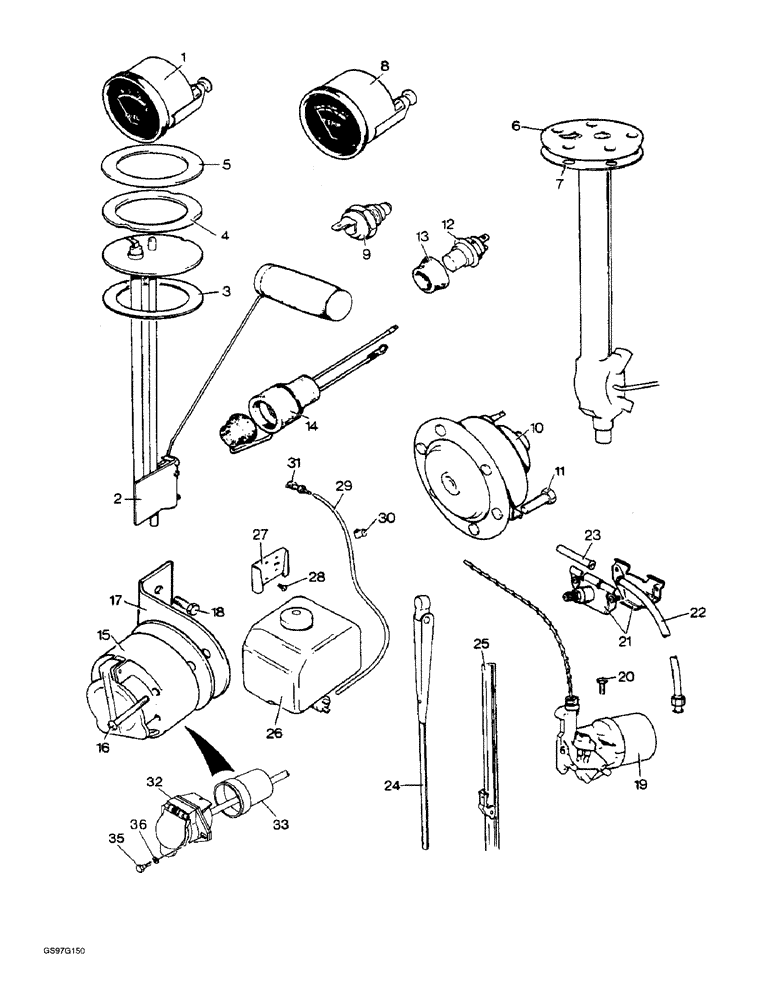

Запчасти Case IH 1212 (4-12) - GAUGES, HORN, WIPER AND TRAILER SOCKETS, TRACTORS FOR EUROPE ONLY (04) - ELECTRICAL SYSTEMS

1

K949236

ELECTRICAL GAUGE

fuel, Smiths AF2204/00, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

1

K262707

ELECTRICAL GAUGE

fuel, used with 1210, 1212, 1210G and 1212G tractors (Replaces gauge K921147)

1шт.

2

K948994

FLOAT

TANK, Smiths TSB5514/014, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors

1шт.

3

K942450

RING

sealing, unit to fuel tank, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors

1шт.

4

K942451

RING

locking, unit to fuel tank, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

5

K627753

GROMMET

PLUG plastic, 3-3/4 inch ID, fuel gauge hole, used with 1210Q and 1212Q with serial number 11158600 and after, 1210Sk and 1212Sk tractors, no longer available

1шт.

6

K916755

FLOAT

TANK, AC Delco 7967414, used with 1210, 1212, 1210G and 1212G tractors, no longer available

1шт.

7

K916485

GASKET

unit to fuel tank, used with 1210, 1212, 1210G and 1212G tractors

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Unit to fuel tank, used with 1210, 1212, 1210G and 1212G tractors (Replaces washer K626340) #10

5шт.

225-14210

NUT,#10-32

Unit to fuel tank, used with 1210, 1212, 1210G and 1212G tractors (Replaces nut K617080) #10-32

5шт.

8

K949237

ELECTRICAL GAUGE

temperature, Smiths ACT2206/00, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

8

3127959R3

GAUGE

temperature, used with 1210, 1212, 1210G and 1212G tractors (Replaces gauge K921148)

1шт.

9

K952332

TRANSMITTER

SENDER, Smiths TT4803/01, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors

1шт.

9

K300297

TEMPERATURE SENDER

SENDER, used with 1210, 1212, 1210G and 1212G tractors (Replaces sender K921149)

1шт.

K626444

WASHER

copper, 3/8 inch, used with 1210, 1212, 1210G and 1212G tractors, no longer available

1шт.

10

K311359

HORN

includes bracket (Replaces horn K950098)

1шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch (Replaces setscrew K602733)

2шт.

493-21026

LOCK WASHER,Int Tooth, 1/4"

internal tooth lock, 1/4 inch (Replaces washer K11524)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

2шт.

12

K928180

SWITCH

PUSH ASSEMBLY horn, Lucas 31872, Includes: Ref. 13, Washer's, and Nut

1шт.

13

K928150

BOOT

COVER rubber, no longer available

1шт.

K25949

WASHER

special, 3/4 inch (Replaces washer K928149)

1шт.

K928148

SPRING

WASHER lock, special, 3/4 inch, no longer available

1шт.

K923147

NUT special, 3/4 inch NF

1шт.

14

705271R91

SOCKET/RECEPTACLE

trailer connection, 2 pin, used with 1210 and 1212 tractors (Replaces socket K948076)

1шт.

K605633

SCREW

hex, 1/4 NC x 1/2 inch, 2 pin socket, 1210 and 1212 tractors

1шт.

425-104

NUT,1/4"-20, Cl 5

Used with 1210 and 1212 tractors 1/4"-20, G5

1шт.

15

K913566

POINT

SOCKET trailer connection, 7 pin, used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors, no longer available, order Ref. 32 - 36 on page 4-15B

1шт.

3118929R1

SOCKET/RECEPTACLE

PLUG trailer connection, used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors (Replaces plug K963625)

1шт.

16

K614950

SCREW

No. 10 NF x 1-1/4 inch, used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors, no longer available

3шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors (Replaces washer K626340) #10

4шт.

225-14210

NUT,#10-32

Used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors (Replaces nut K617080) #10-32

4шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors (Replaces screw K614944)

1шт.

K627724

GROMMET

3/16 inch, used with 1210, 1212, 1210G and 1212G tractors

1шт.

17

K948022

BRACKET

trailer socket, 7 pin, used with 1210, 1212, 1210G and 1212G tractors

1шт.

18

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch, used with 1210, 1212, 1210G and 1212G tractors

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 1210, 1212, 1210G and 1212G tractors (Replaces washer K626341) 1/4"

2шт.

19

K951518

WIPER MOTOR

Lucas 54071929, used with 1210Q and 1212Q tractors, no longer available

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with 1210Q and 1212Q tractors Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

K626662

WASHER

flat, 1/4 inch, used with 1210Q and 1212Q tractors (Replaces washer K19470)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 1210Q and 1212Q tractors (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

Used with 1210Q and 1212Q tractors (Replaces nut K607043) 1/4"-20, G5

1шт.

21

K951519

WHEEL

BOX, Lucas LT28894-72925, used with 1210Q and 1212Q tractors, no longer available

1шт.

22

K951516

DRIVE

TUBE, used with 1210Q and 1212Q tractors, no longer available

1шт.

23

K692917

TUBE extension, used with 1210Q and 1212Q tractors

1шт.

24

K955664

WIPER

ARM, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

24

K950923

ARM

wiper, used with 1210Q and 1212Q tractors with serial numbers prior to 1158600, no longer available

1шт.

25

K955665

WIPER

BLADE, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

25

K950924

BLADE

wiper, used with 1210Q and 1212Q tractors with serial numbers prior to 1158600, no longer available

1шт.

26

K954271

RESERVOIR

windscreen washer, includes pump, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

27

K954272

MOUNTING PARTS

BRACKET, reservoir, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

28

K614943

SCREW

hex, No. 10 NF x 3/8 inch, used with 1210Q and 1212Q tractors with serial number 11158600 and after

3шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Used with 1210Q and 1212Q tractors with S/N 11158600 and after (Replaces washer K626340) #10

3шт.

225-14210

NUT,#10-32

Used with 1210Q and 1212Q tractors with S/N 11158600 and after (Replaces nut K617080) #10-32

3шт.

29

K954274

TUBE

plastic, 4 mm x 85 inch (2159 mm) long, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

30

K625020

CLIP

pipe, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

3шт.

31

K954273

JET

windscreen wiper, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

32

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR trailer, seven pin

1шт.

33

481849C1

PROTECTIVE COVER

BOOT rubber

1шт.

34

A143370

HARNESS

auxiliary outlet, not shown

1шт.

35

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
