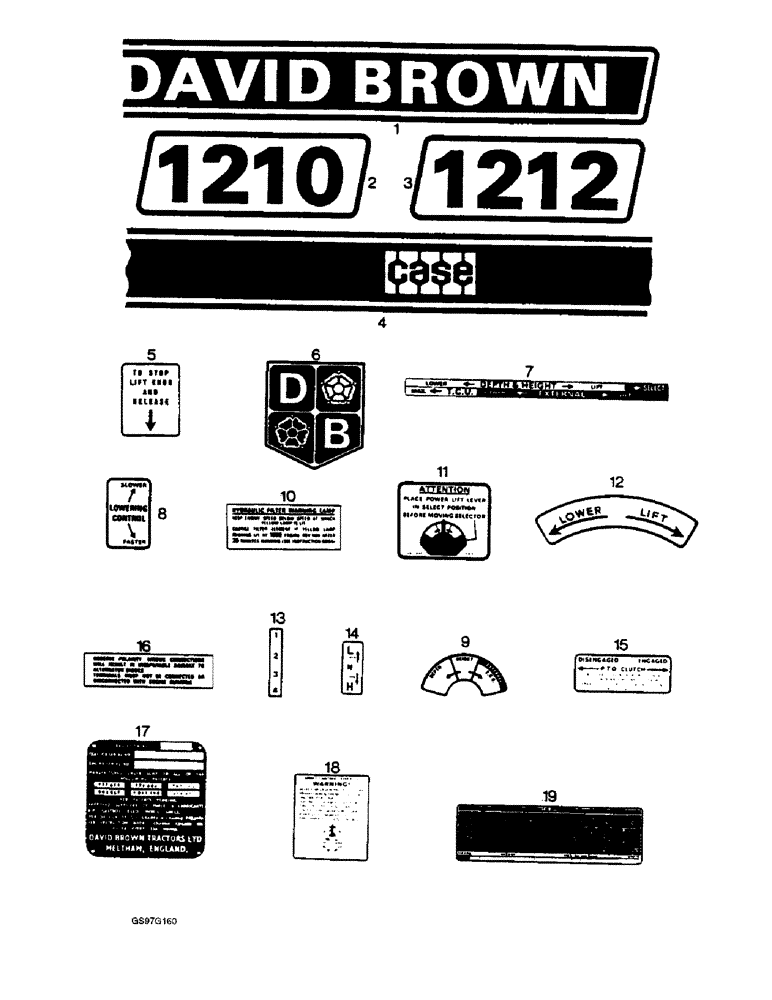

Запчасти Case IH 1212 (9-110) - DECALS, 1210G, 1210G FOUR-WHEEL DRIVE AND 1212G TRACTORS (09) - CHASSIS/ATTACHMENTS

K949210

DECAL

KIT used with 1210G and 1210G four-wheel drive tractors, no longer available as a kit, order components, Includes: Ref. 1 - 4 and Decal

1шт.

K949211

DECAL

KIT used with 1212G tractors, no longer available, order decals K947729, K947727, K260300 and K260299, Includes: Ref. 1 - 4 and Decal

1шт.

1

K260300

DECAL

David Brown, right-hand (Replaces decal K947724)

1шт.

K260299

DECAL

David Brown, left-hand (Replaces decal K947723)

1шт.

2

K952979

DECAL

1210, right-hand, used with 1210G and 1210G four-wheel drive tractors (Replaces decal K947728)

1шт.

K952980

DECAL

1210, left-hand, used with 1210G and 1210G four-wheel drive tractors (Replaces decal K947726)

1шт.

3

K947729

DECAL

1212, right-hand, used with 1212G tractors, no longer available

1шт.

K947727

DECAL

1212, left-hand, used with 1212G tractors, no longer available

1шт.

4

K949151

DECAL

Case, right-hand, no longer available, order decal K260300

1шт.

K949150

DECAL

Case, left-hand, no longer available, order decal K260299

1шт.

5

K917274

PRODUCT GRAPHIC

DECAL to stop, lift knob and release, no longer available

1шт.

6

K951132

DECAL

DB motif, bonnet nose, no longer available

1шт.

7

K915224

PLATE

instruction, quadrant, no longer available

1шт.

8

K917276

PLATE

instruction, lowering control, no longer available

1шт.

9

K915227

PLATE

DECAL selector panel, no longer available

1шт.

10

K921387

DECAL

hydraulic filter warning lamp, no longer available, Serial Range: -11152576

1шт.

11

K915221

PRODUCT GRAPHIC

DECAL hydraulic lift control, no longer available

1шт.

12

K917270

PRODUCT GRAPHIC

DECAL lift/lower, no longer available

1шт.

13

K943368

DECAL

Hydra-Shift lever positions, used with 1212G tractors

1шт.

14

K920633

PRODUCT GRAPHIC

DECAL mult-speed PTO, no longer available

1шт.

15

K920958

PRODUCT GRAPHIC

DECAL PTO clutch lever instruction, no longer available

1шт.

K917425

PRODUCT GRAPHIC

DECAL negative earth

1шт.

16

K952355

DECAL

alternator, no longer available

1шт.

K913882

PLATE

specification

1шт.

168-62

DRIVE SCREW,Type U, Rnd Hd, #4 x 1/4"

drive, round head, No. 4 x 1/4 inch (Replaces screw K11205)

4шт.

17

K915779

PLATE

lubrication instruction, no longer available

1шт.

151-526

RIVET,Pop, 1/8" x .337"

pop, 1/8 x 9/32 inch (Replaces rivet K624090)

4шт.

18

K940362

PRODUCT GRAPHIC

DECAL selective sensing unit

1шт.

19

K926837

INDICATOR

CHART km/h, 11/49 reduction ratio, used with 1210G four-wheel drive tractors, no longer available, gear/travel speed charts 16.9/14-30, 12.4/11-36, 13.6/12-36, 18.4/15-30, 13.6/12-38, 16.9/14-34 and 15.5-38 tires

1шт.

19

K926836

DECAL

CHART km/h, 10/49 reduction ratio, used with 1210G and 1210G four-wheel drive tractors, no longer available, gear/travel speed charts 16.9/14-30, 12.4/11-36, 13.6/12-36, 18.4/15-30, 13.6/12-38, 16.9/14-34 and 15.5-38 tires

1шт.

19

K926983

INDICATOR

CHART km/h, 9/50 reduction ratio, used with 1210G and 1210G four-wheel drive tractors, no longer available, gear/travel speed charts 16.9/14-30, 12.4/11-36, 13.6/12-36, 18.4/15-30, 13.6/12-38, 16.9/14-34 and 15.5-38 tires

1шт.

19

K953156

INDICATOR

CHART km/h, 10/49 reduction ratio, used with 1212G tractors, no longer available, gear/travel speed charts 16.9/14-30, 12.4/11-36, 13.6/12-36, 18.4/15-30, 13.6/12-38, 16.9/14-34 and 15.5-38 tires

1шт.
