Запчасти Case IH 1212 (9-108) - DECALS, 1210, 1210 FOUR-WHEEL DRIVE AND 1212 TRACTORS (09) - CHASSIS/ATTACHMENTS

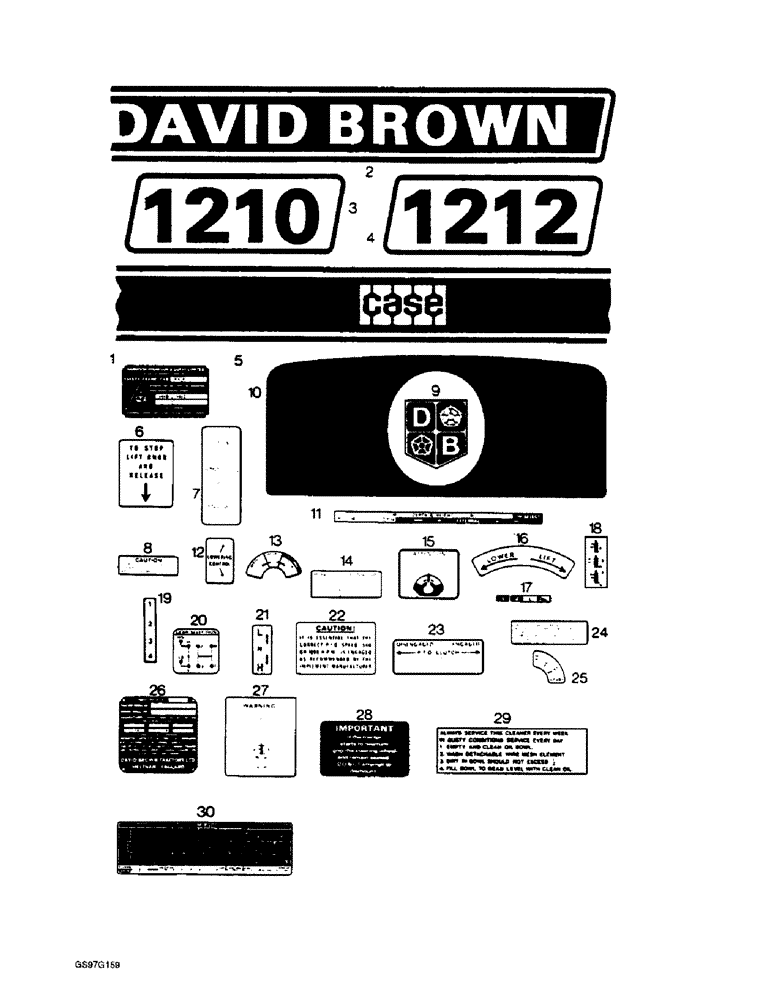

Схема запчастей Case IH 1212 - (9-108) - DECALS, 1210, 1210 FOUR-WHEEL DRIVE AND 1212 TRACTORS (09) - CHASSIS/ATTACHMENTS
16
24
30
4
8
14
19
21
1
11
23
9
26
5
25
10
2
20
18
3
29
12
28
6
13
22
7
17
15
27

Артикул

Название

Примечание

Количество

1

K773193

PLATE registration, Weatherframe, no longer available

1шт.

K691567

RIVET

registration plate to frame, no longer available

4шт.

K949210

DECAL

KIT bonnet, used with 1210 and 1210 four-wheel drive tractors, no longer available as a kit, order components, Includes: Ref. 2 - 5 and Decal

1шт.

K949211

DECAL

KIT bonnet, used with 1212 tractors, no longer available, order decals K947729, K947727, K260300 and K260299, Includes: Ref. 2 - 5 and Decal

1шт.

2

K260300

DECAL

David Brown, right-hand (Replaces decal K947724)

1шт.

K260299

DECAL

David Brown, left-hand (Replaces decal K947723)

1шт.

3

K952979

DECAL

1210, right-hand, used with 1210 and 1210 four-wheel drive tractors (Replaces decal K947728)

1шт.

K952980

DECAL

1210, left-hand, used with 1210 and 1210 four-wheel drive tractors (Replaces decal K947726)

1шт.

4

K947729

DECAL

1212, right-hand, used with 1212 tractors, no longer available

1шт.

K947727

DECAL

1212, left-hand, used with 1212 tractors, no longer available

1шт.

5

K949151

DECAL

Case, right-hand, no longer available, order decal K260300

1шт.

K949150

DECAL

Case, left-hand, no longer available, order decal K260299

1шт.

6

K917240

DECAL

to stop-lift knob and release

1шт.

7

K953210

DECAL

four-wheel drive engagement, used with 1210 four-wheel drive tractors

1шт.

8

K945069

DECAL

seat belt caution

1шт.

9

K951132

DECAL

DB motif, bonnet nose, no longer available

1шт.

10

K917051

PRODUCT GRAPHIC

DECAL black, bonnet nose, side-mounted headlamps, no longer available

1шт.

11

K915178

DECAL

PLATE instruction, quadrant

1шт.

151-526

RIVET,Pop, 1/8" x .337"

pop, 1/8 x 9/32 inch (Replaces rivet K624090)

2шт.

12

K917242

DECAL

PLATE instruction, lowering control

1шт.

13

K915179

DECAL

selector panel

1шт.

14

K921368

DECAL

hydraulic filter warning lamp, Serial Range: -11152576

1шт.

15

K915177

PLATE

DECAL hydraulic lift control, used with 1210 and 1210 four-wheel drive tractors

1шт.

16

K917237

DECAL

lift/lower

1шт.

17

K919845

PRODUCT GRAPHIC

DECAL lever position, three-way valve

1шт.

18

K924660

DECAL

live take-off valve

1шт.

19

K943368

DECAL

Hydra-Shift lever positions, used with 1212 tractors

1шт.

20

K940726

PRODUCT GRAPHIC

DECAL gear selection chart, used with 1210 and 1210 four-wheel drive tractors

1шт.

21

K920632

PRODUCT GRAPHIC

DECAL multi-speed PTO, no longer available

1шт.

22

K949760

DECAL

mulfi-speed PTO warning note, no longer available

1шт.

23

321-6370

DECAL

PTO clutch lever instruction (Replaces decal K919809)

1шт.

K917425

PRODUCT GRAPHIC

DECAL negative earth

1шт.

25

K950194

DECAL

thermostart

1шт.

24

K947548

DECAL

alternator

1шт.

26

K954684

PLATE

lubrication instruction (Replaces plate K913300)

1шт.

151-526

RIVET,Pop, 1/8" x .337"

pop, 1/8 x 9/32 inch (Replaces rivet K624090)

4шт.

27

K940361

PRODUCT GRAPHIC

DECAL selective sensing unit

1шт.

28

K774910

DECAL

roll over warning note, Weatherframe, no longer available

1шт.

29

K917151

PRODUCT GRAPHIC

DECAL air cleaner

1шт.

30

K942977

DECAL

CHART mph, 11/49 reduction ratio, used with 1210 and 1210 four-wheel drive tractors, gear/travel speed charts 13.6/12-38, 16.9/14-34, 13.6/12-36, 12.4/11-36, 18.4/15-30, 15.5-38 and 16.9/14-30 tires

1шт.

30

K954768

DECAL

CHART km/h, 11/49 reduction ratio, used with 1210 and 1210 four-wheel drive tractors (Replaces chart K942985), gear/travel speed charts 13.6/12-38, 16.9/14-34, 13.6/12-36, 12.4/11-36, 18.4/15-30, 15.5-38 and 16.9/14-30 tires

1шт.

30

K942979

DECAL

CHART mph, 10/49 reduction ratio, used with 1210 and 1210 four-wheel drive tractors, no longer available, gear/travel speed charts 13.6/12-38, 16.9/14-34, 13.6/12-36, 12.4/11-36, 18.4/15-30, 15.5-38 and 16.9/14-30 tires

1шт.

30

K942987

DECAL

CHART km/h, 10/49 reduction ration, used with 1210 and 1210 four-wheel drive tractors, gear/travel speed charts 13.6/12-38, 16.9/14-34, 13.6/12-36, 12.4/11-36, 18.4/15-30, 15.5-38 and 16.9/14-30 tires

1шт.

30

K942981

DECAL

CHART km/h, 9/50 reduction ratio, used with 1210 and 1210 four-wheel drive tractors, no longer available, gear/travel speed charts 13.6/12-38, 16.9/14-34, 13.6/12-36, 12.4/11-36, 18.4/15-30, 15.5-38 and 16.9/14-30 tires

1шт.

30

K942989

INDICATOR

CHART km/h, 9/50 reduction ratio, used with 1210 and 1210 four-wheel drive tractors, no longer available, gear/travel speed charts 13.6/12-38, 16.9/14-34, 13.6/12-36, 12.4/11-36, 18.4/15-30, 15.5-38 and 16.9/14-30 tires

1шт.

30

K942063

INDICATOR

CHART mph, 11/49 reduction ratio, used with 1212 tractors, no longer available, 13.6/12-38 and 16.9/14-34 tires

1шт.

30

K942064

INDICATOR

CHART km/h, 11/49 reduction ratio, used with 1212 tractors, no longer available, 13.6/12-38 and 16.9/14-34 tires

1шт.

30

K942116

INDICATOR

CHART km/h, 9/50 reduction ratio, used with 1212 tractors, no longer available, 13.6/12-38 and 16.9/14-34 tires

1шт.

Выбрано товаров: 48
